DEWALT 6401SD-PWR, Snake+® Internally Threaded Screw Anchor 3/8" (50/Box)
Regular price
$47.99
Got questions?
Feel free to get in touch
Product Details

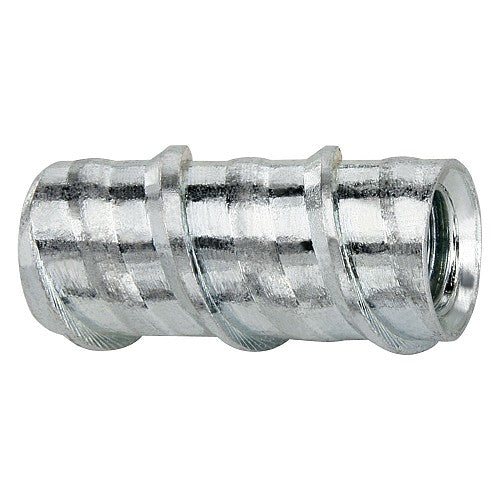

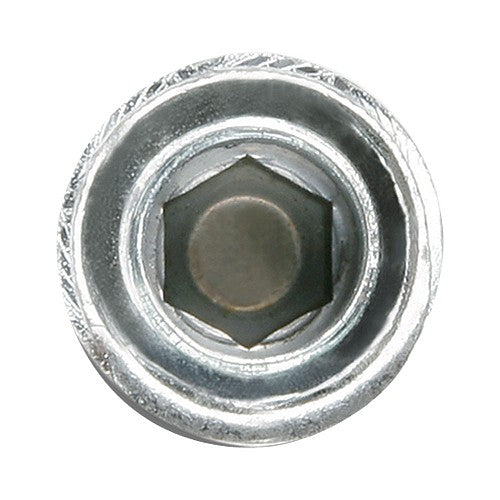

The Snake+ anchor is an internally threaded, self-tapping screw anchor designed for performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, lightweight concrete and concrete over steel deck. The Snake+ screw anchor is installed into a drilled hole with a power tool and a Snake+ setting tool. After installation a steel element is threaded into the anchor body.
Features & Specs
FEATURES
- Cracked concrete approved alternative to a dropin anchor
- Designed for use in holes drilled with standard ANSI carbide drill bits
- Anchor design allows for shallow embedment and mechanically interlocks with base material
- Internally threaded anchor for easy adjustment and removability of threaded rod or bolt
- Fast anchor installation with a powered impact wrench
- Hammer not used for installation
Specifications
| Catalog Number | Anchor Size | Anchor Diameter Outside | Internal Thread Depth | Pack Qty | Drill Bit Reference |
|---|---|---|---|---|---|
| 6400SD-PWR | 1/4" | 3/8" | 1/4"-20 | 100 | ANSI 3/8" |
| 6401SD-PWR | 3/8" | 1/2" | 3/8"-16 | 50 | ANSI 1/2" |
| 6403SD-PWR | 1/2" | 3/4" | 1/2"-13 | 50 | ANSI 3/4" |
General Application & Uses
APPLICATIONS
- Suspending conduit, cable trays and strut
- Interior low level corrosion environment
- Tension zone / cracked concrete
- Seismic attachments (SDC A - F)
- Fire sprinklers and pipe supports
- Suspended lighting
