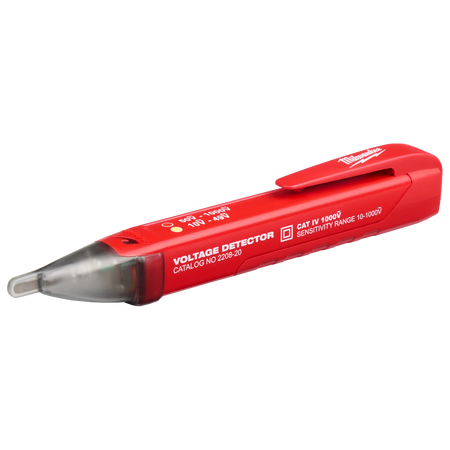

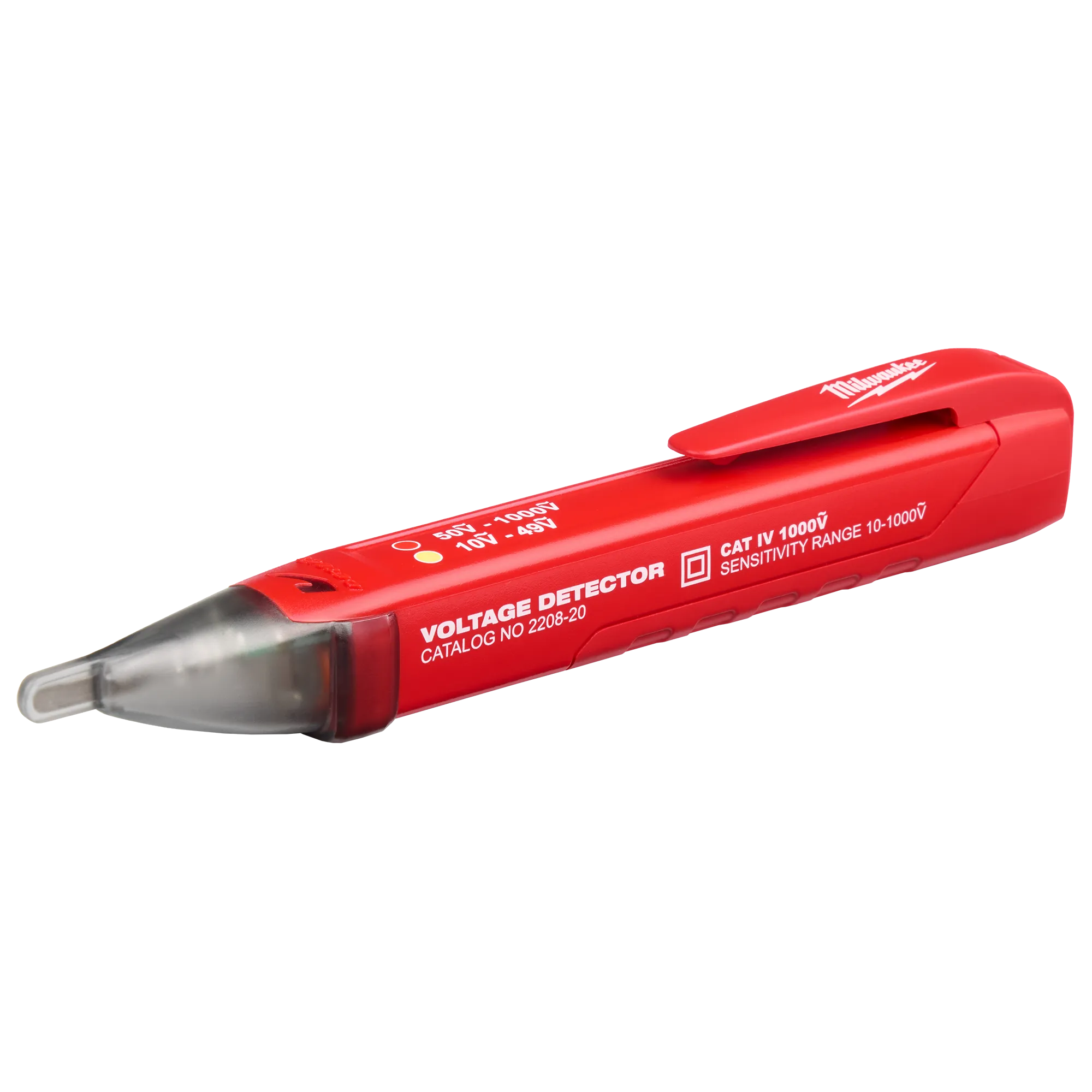

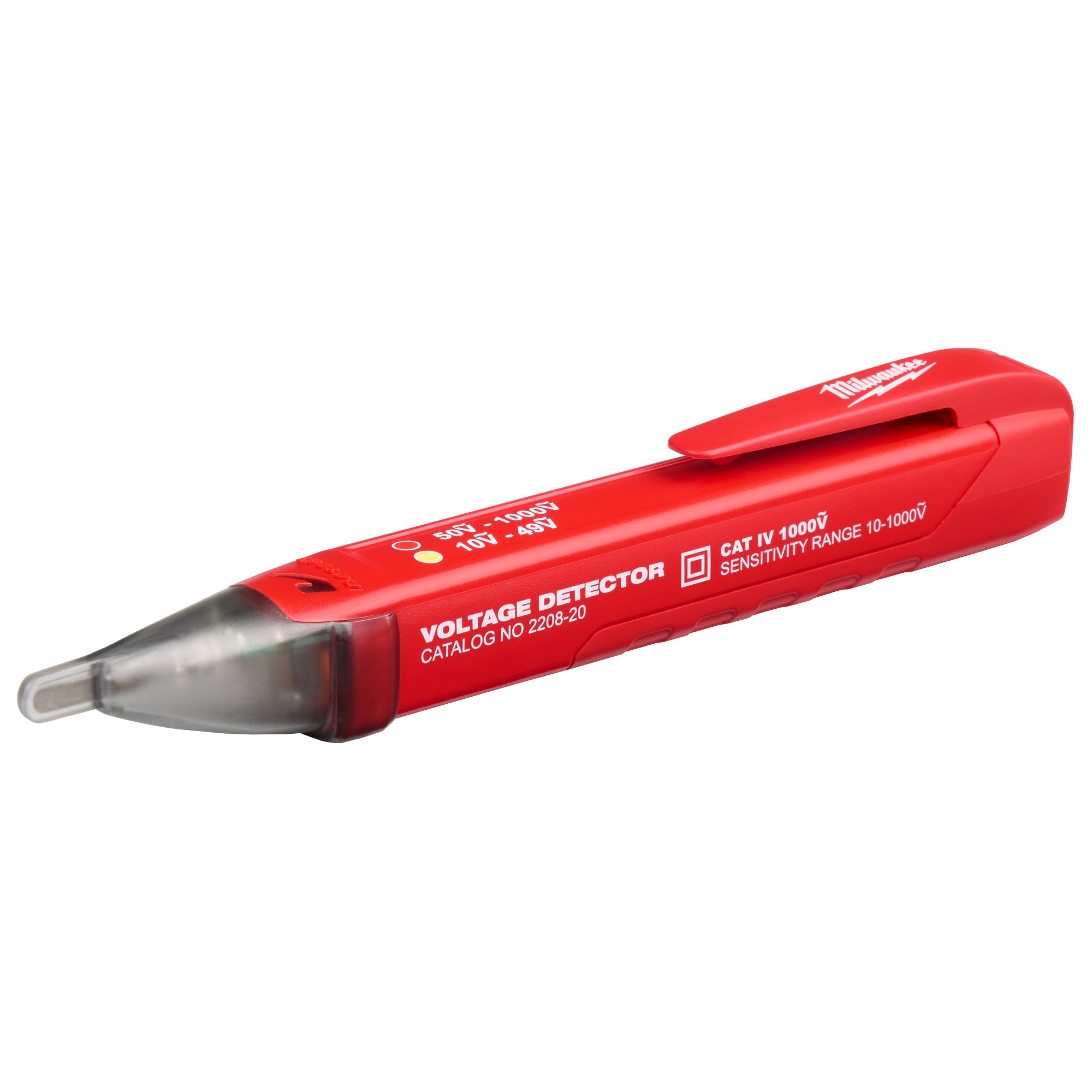

Milwaukee 2208-20, Dual Range Voltage Detector
Got questions?
Feel free to get in touch

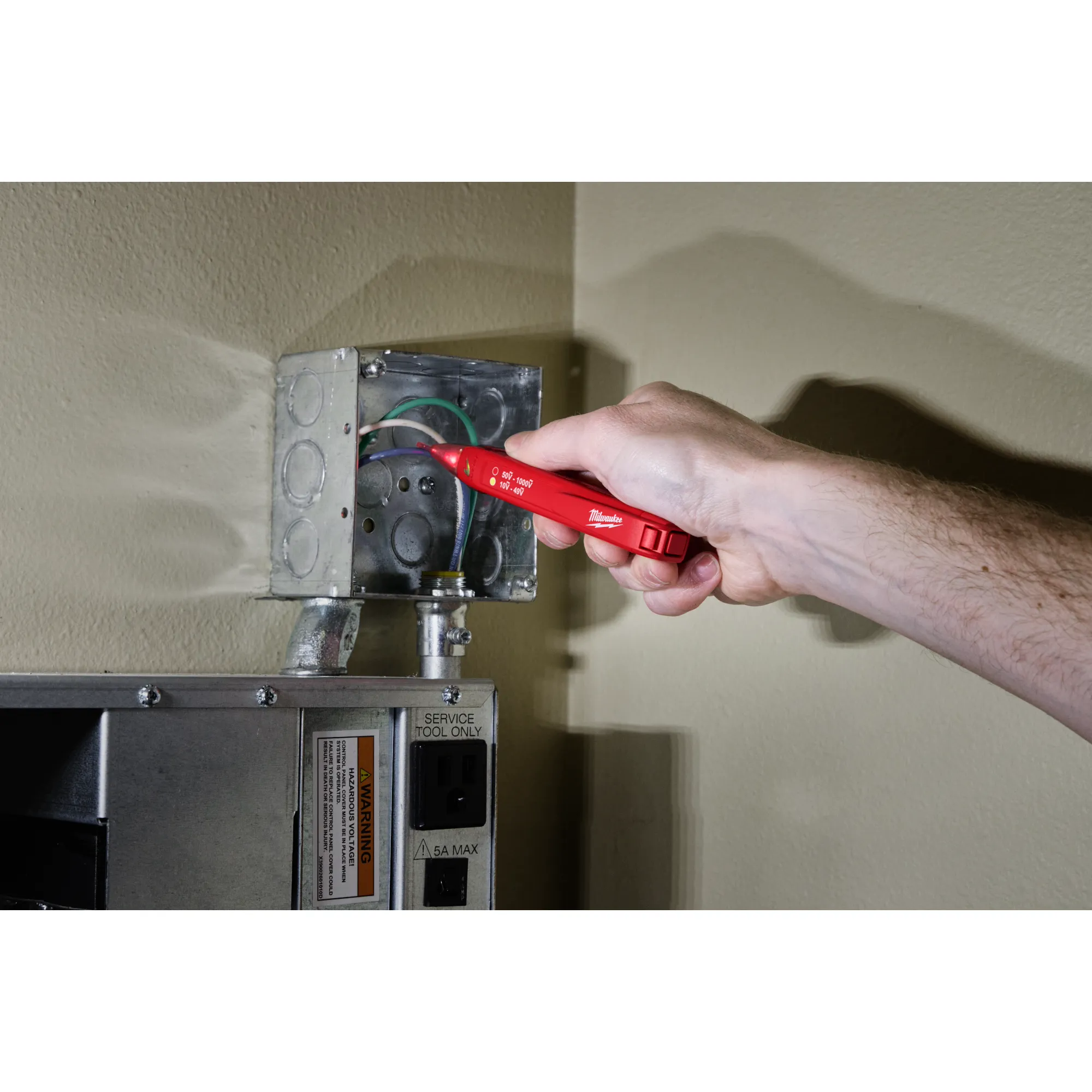

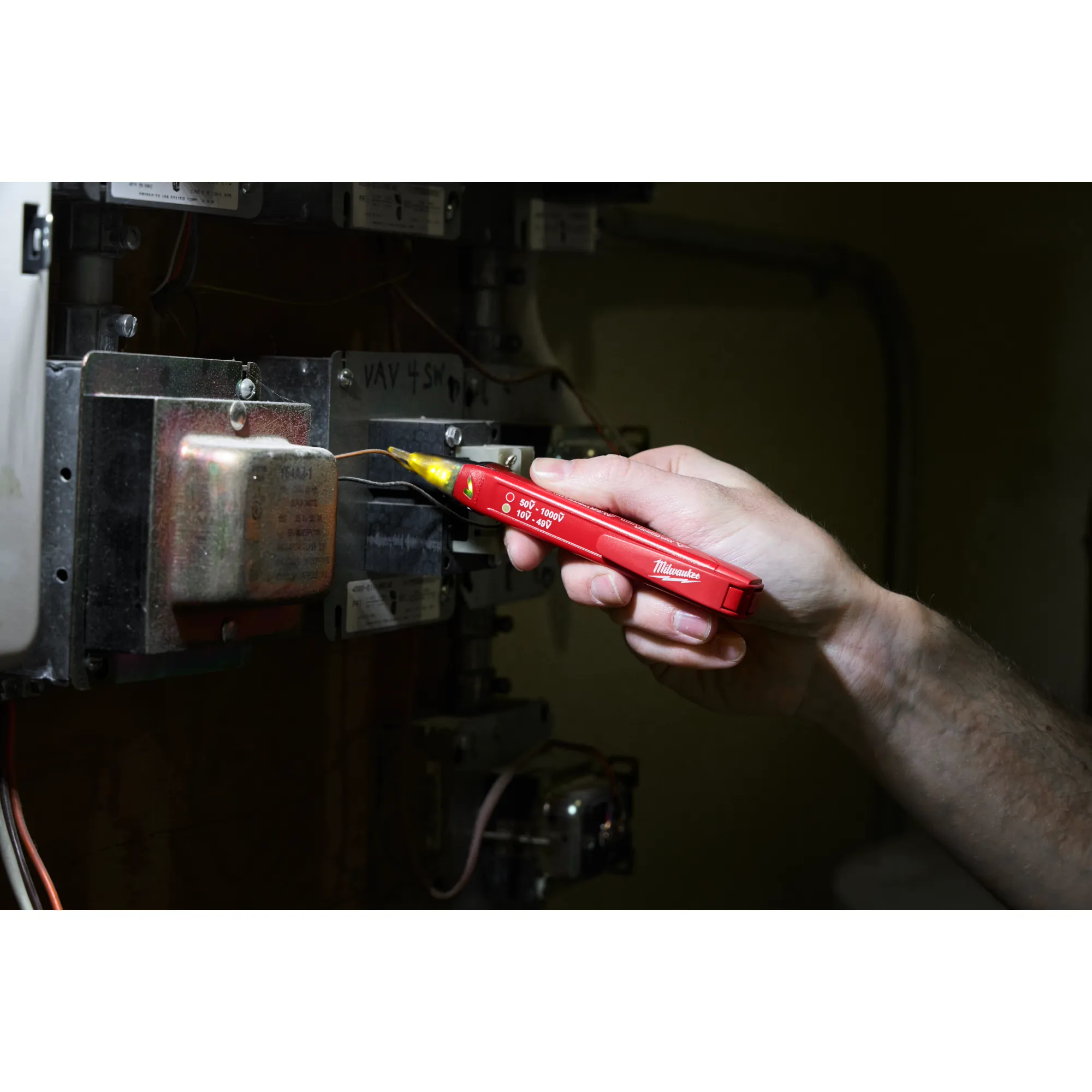

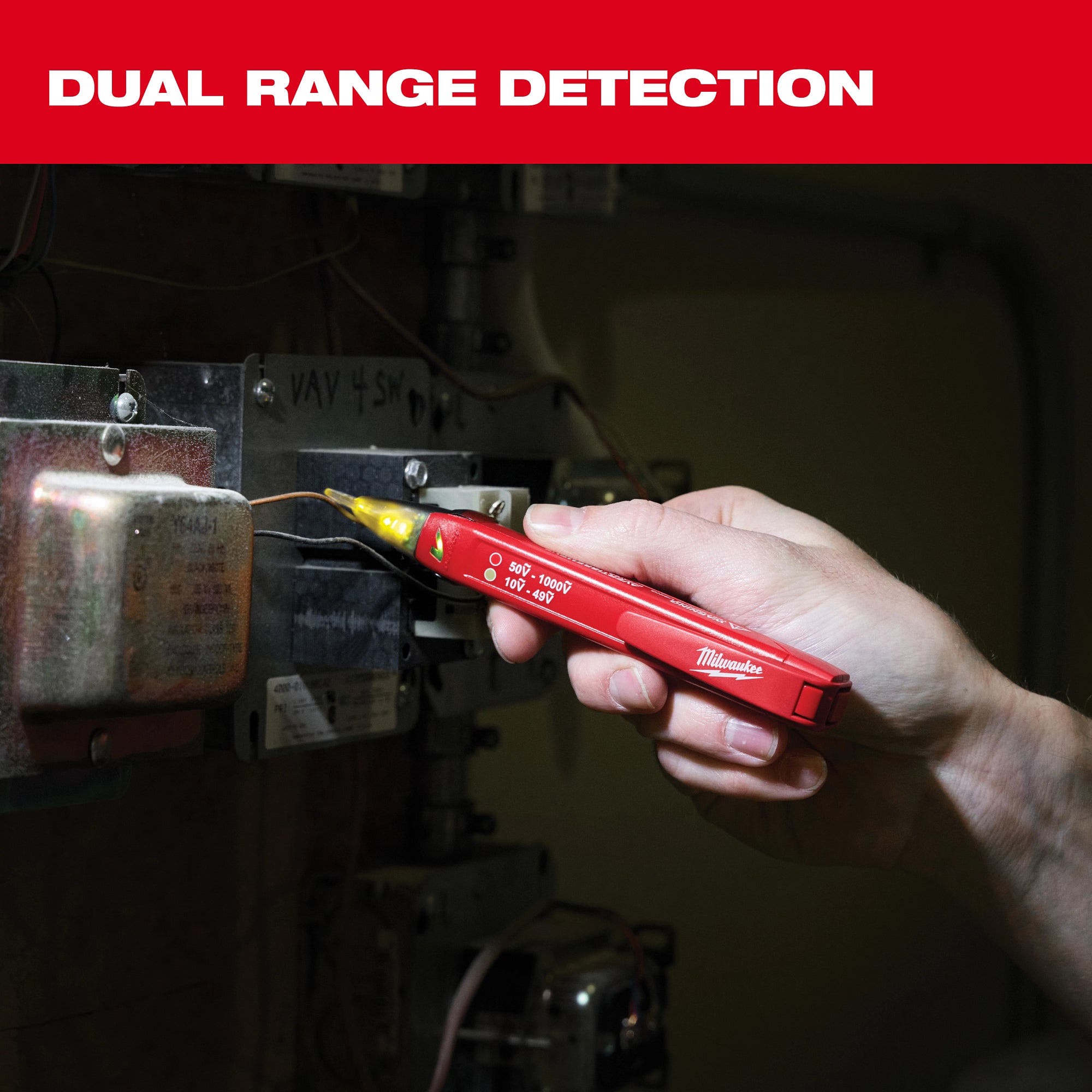

The MILWAUKEE® Dual Range Voltage Detector is designed for commercial and residential electrical applications. The expanded sensitivity range of 10-49V offers the ability to detect voltage in common systems that would normally go undetected when using a standard voltage detector. These systems include: LED Lighting, Fire Detection & Suppression Systems, HVAC Controls, and Security & Access Controls, along with many others. The Dual Range Voltage Detector detects and automatically differentiates 10-49V from the standard voltage range of 50-1000V. It does so by using uniquely colored LED indicators and audible tones, delivering the clearest indication of these two voltage ranges. The Dual Range Voltage Detector is a best-in-class voltage detection solution for any Electrician, Low-Voltage Technician or Facilities Maintenance Technician.

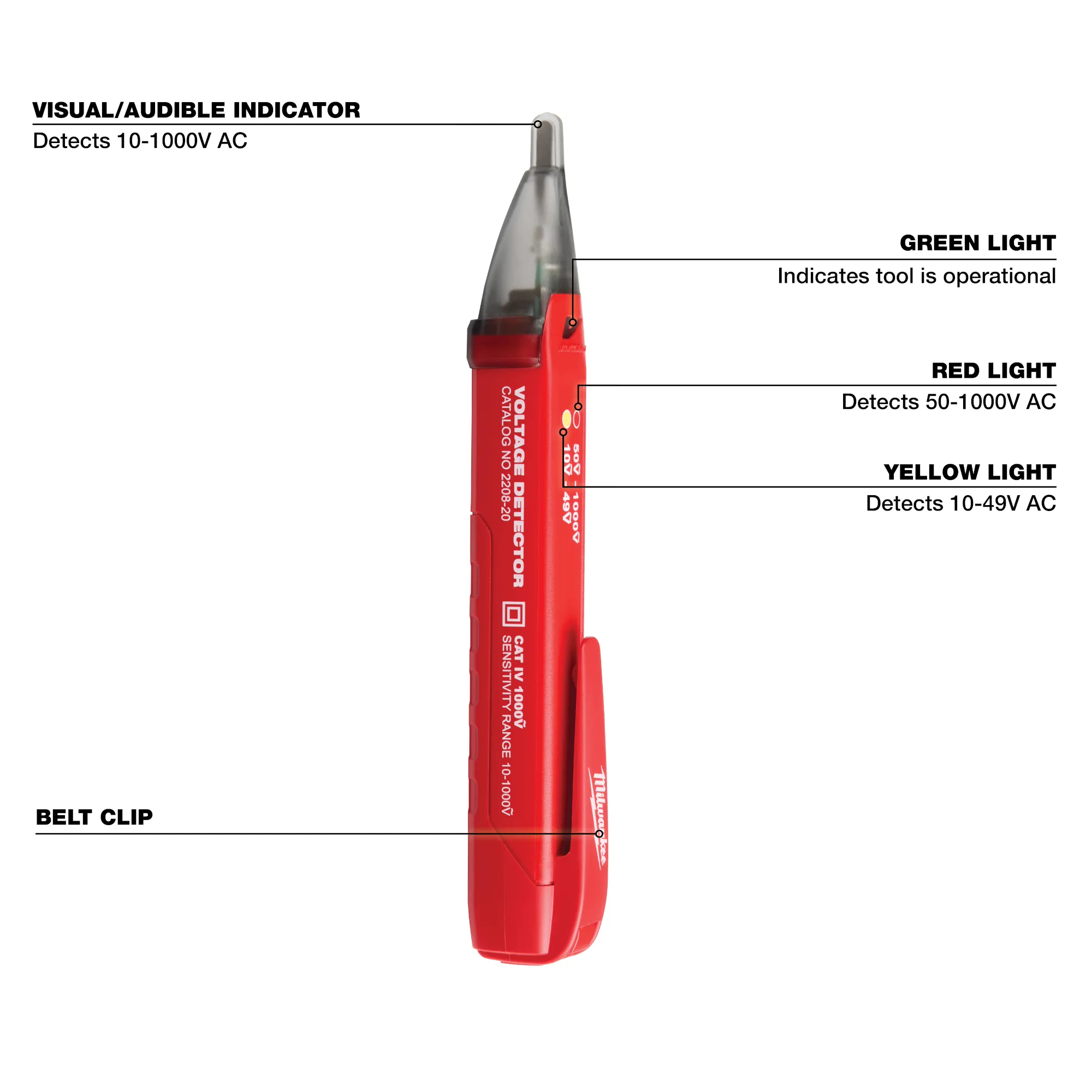

Features & Benefits

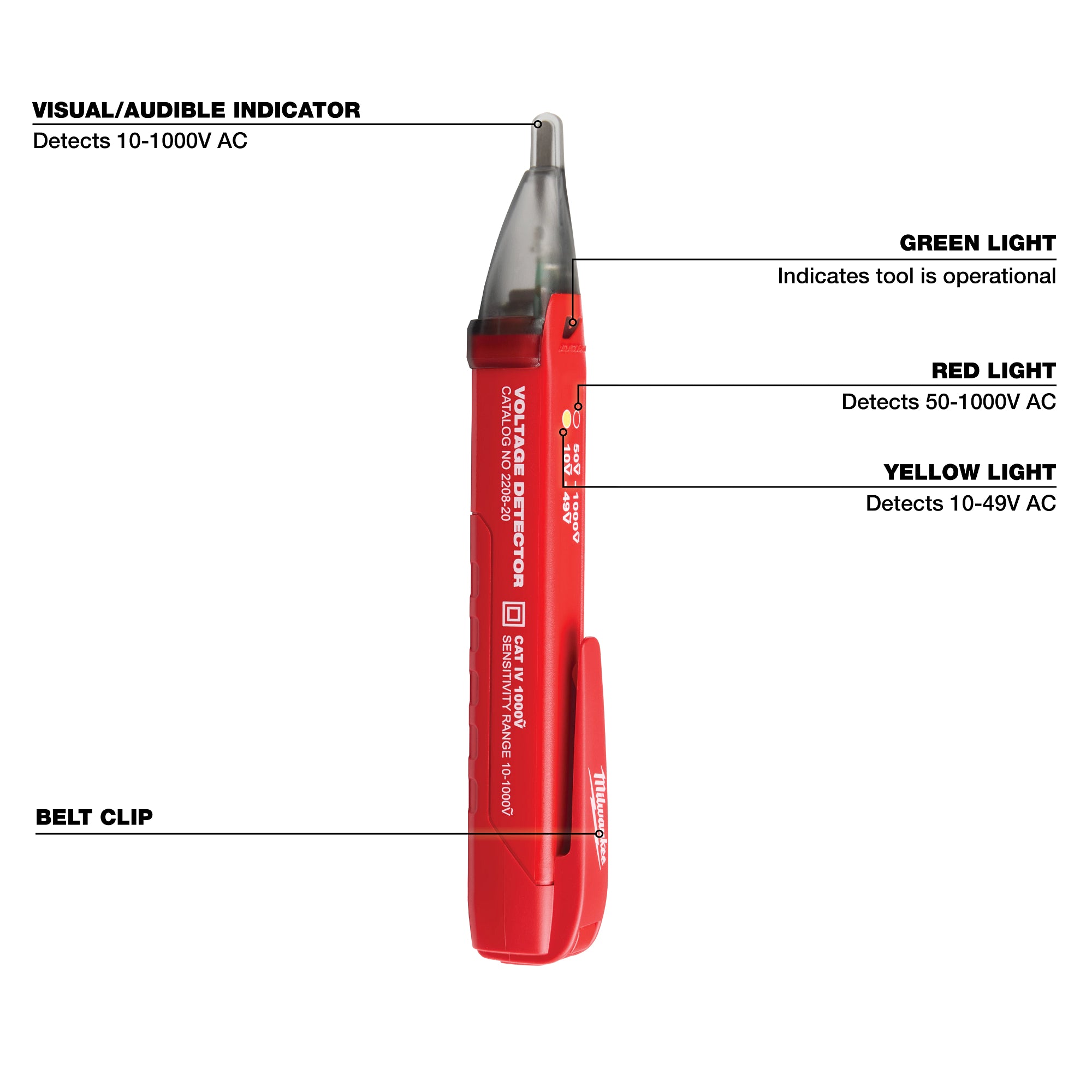

- Automatically differentiates 10-49Ṽ & 50-1000Ṽ AC
- Different colors identify voltage range
- Auto-Off
- Durable belt clip allows for easy storage and retrieval from pocket

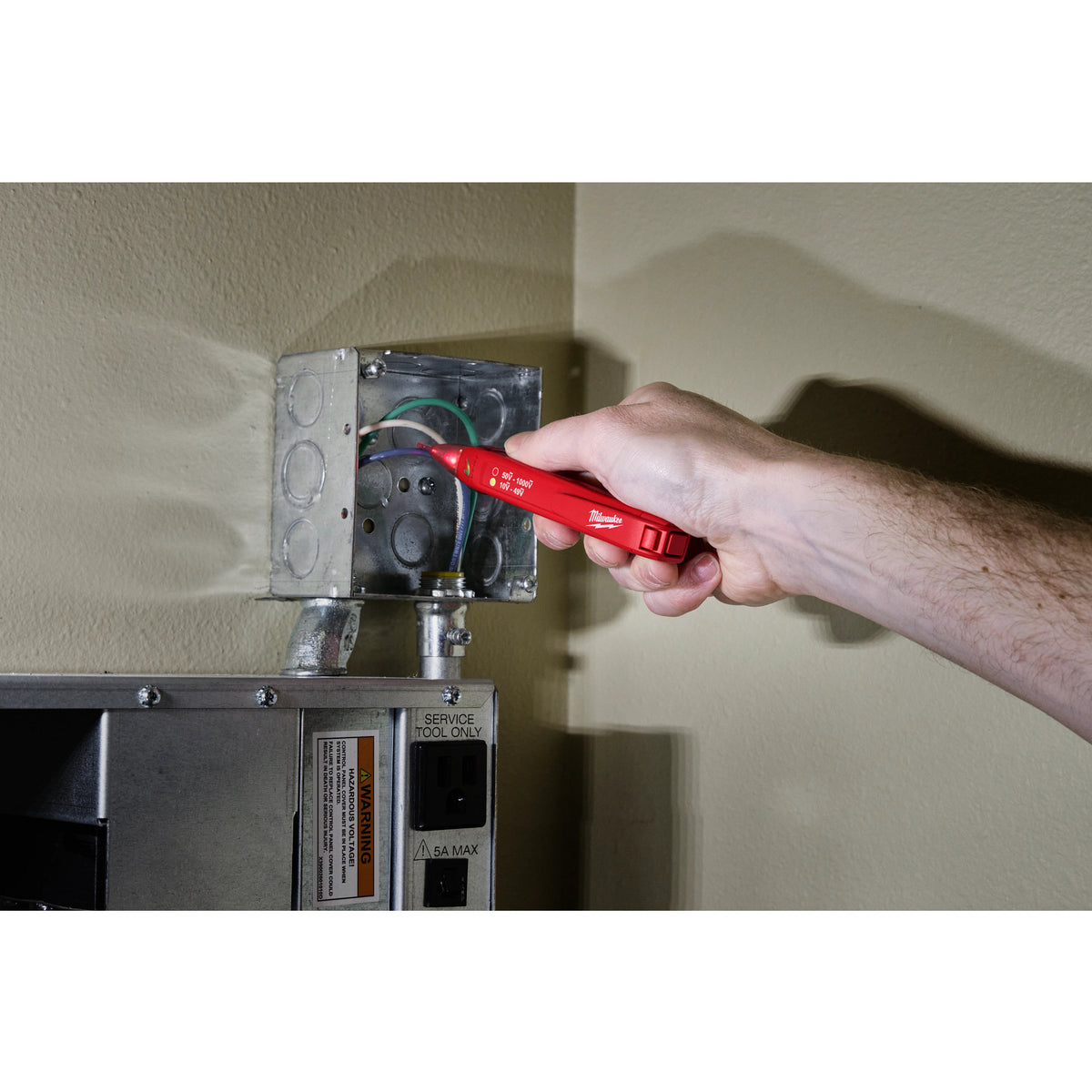

- Blade-tip for checking outlets
- CAT IV 1000V safety rating

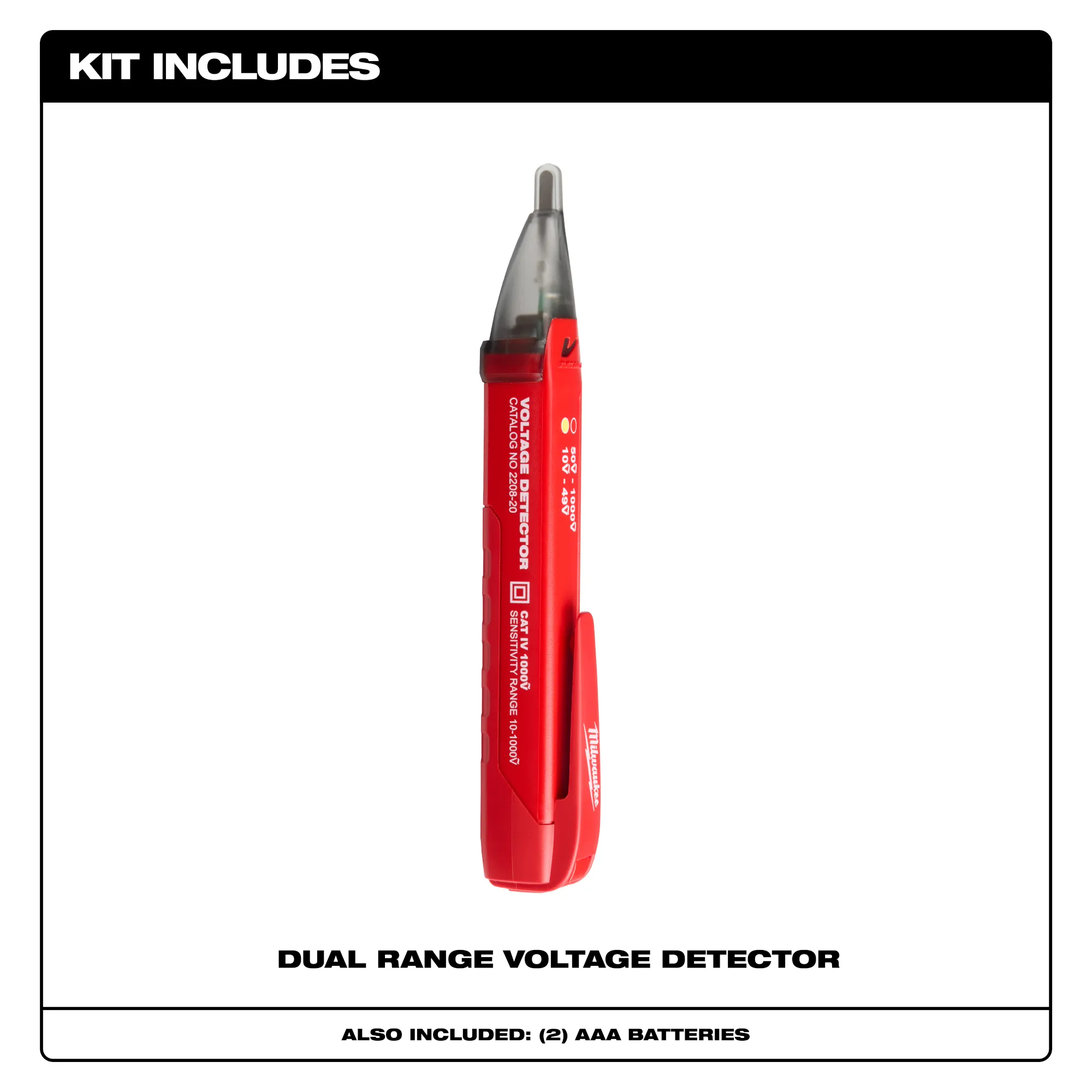

- Powered by (2) AAA batteries
- 2 Year Warranty
Specifications
Category: Power Tools
- Audible Alert: Yes
- Batteries Included: Yes
- Electronic: Yes
- On/Off Switch: Yes
- Measures/Detects: Voltage
- Tester Type: Voltage
- Material *: Plastic
- Switch Type *: On and Off
- Display Type: No Display
- Case Included: No
- DC Polarity Indicator: No
- Digital/Analog: N/A
- Visual / Audio Alert: Audio/Visual
- Battery Size and Chemistry: Alkaline (AAA)
- Battery Composition: Alkaline
- Battery Size: AAA
- BatteryQuantityRequired: 2
- Number of Batteries Required: 2
- AC Voltage Range: 10V-1000V AC
- AC Voltage: 1000
- Operating Temperature Range: -10° C to 50° C
- Voltage Range: 10 to 1000V AC
- Battery Quantity and Size: (2) AAA
