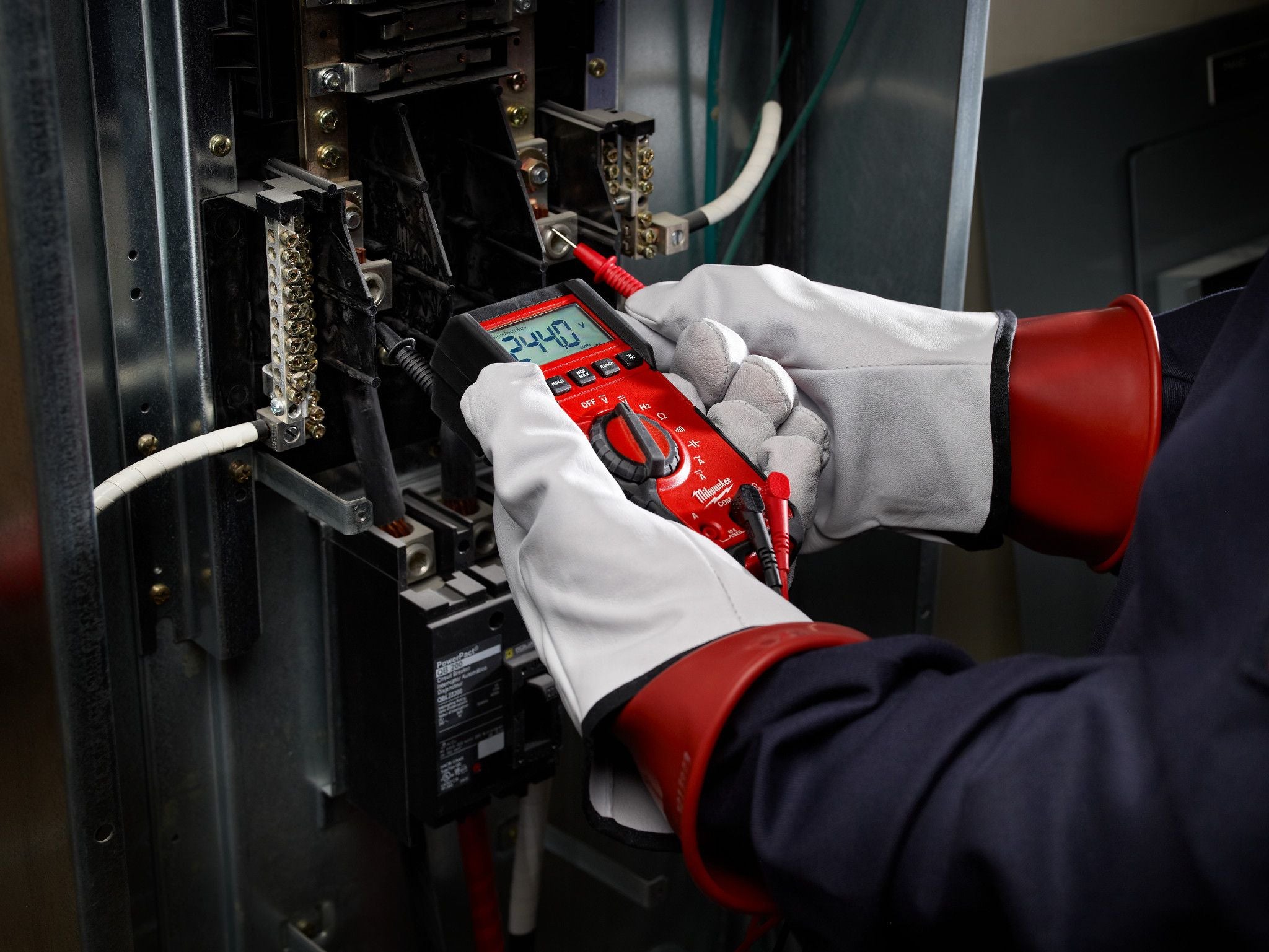

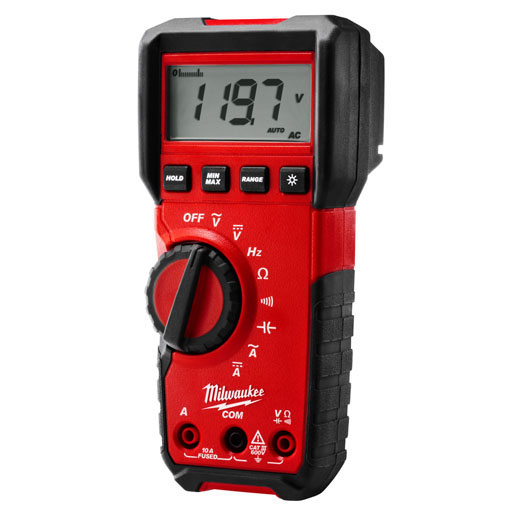

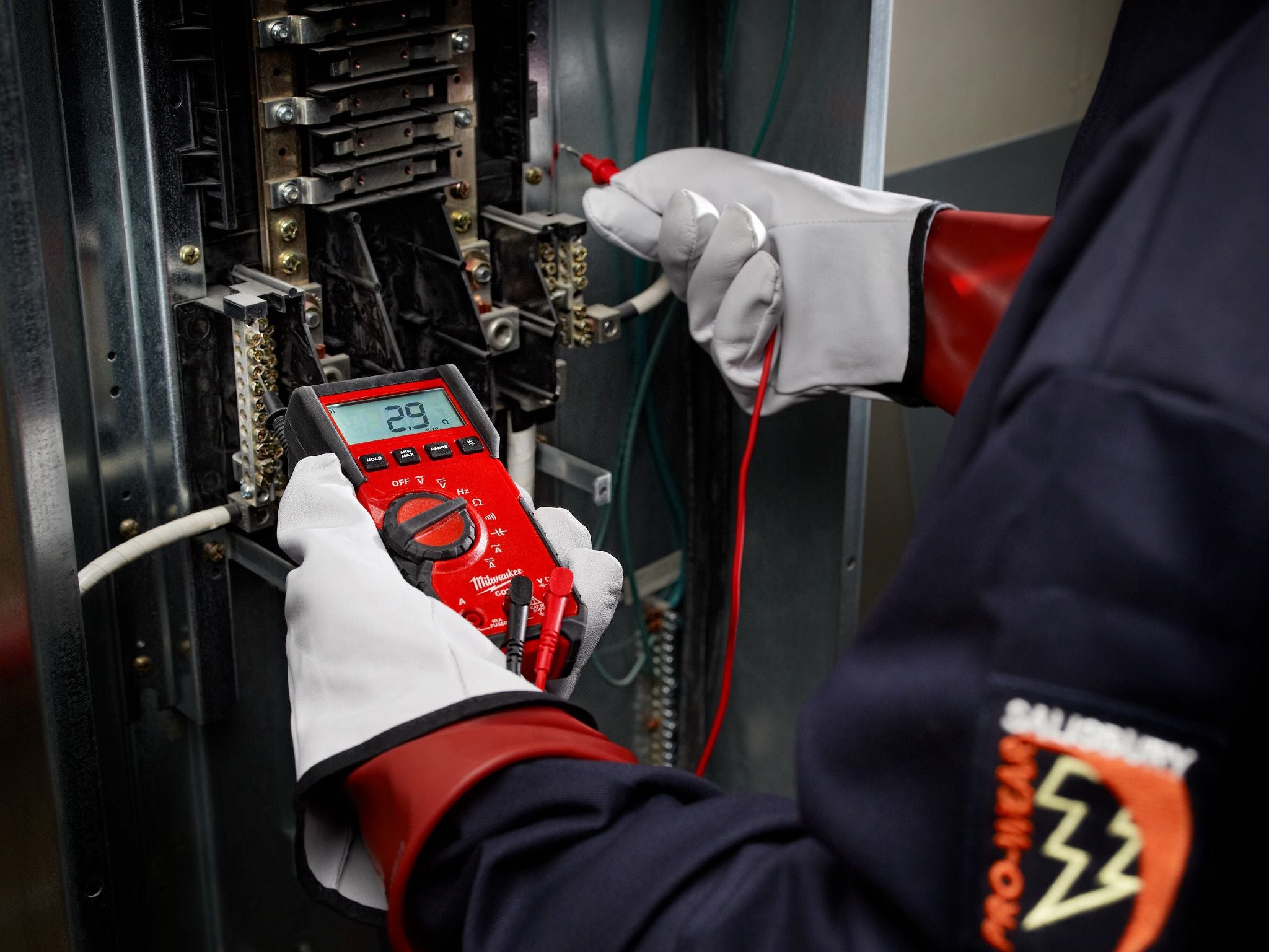

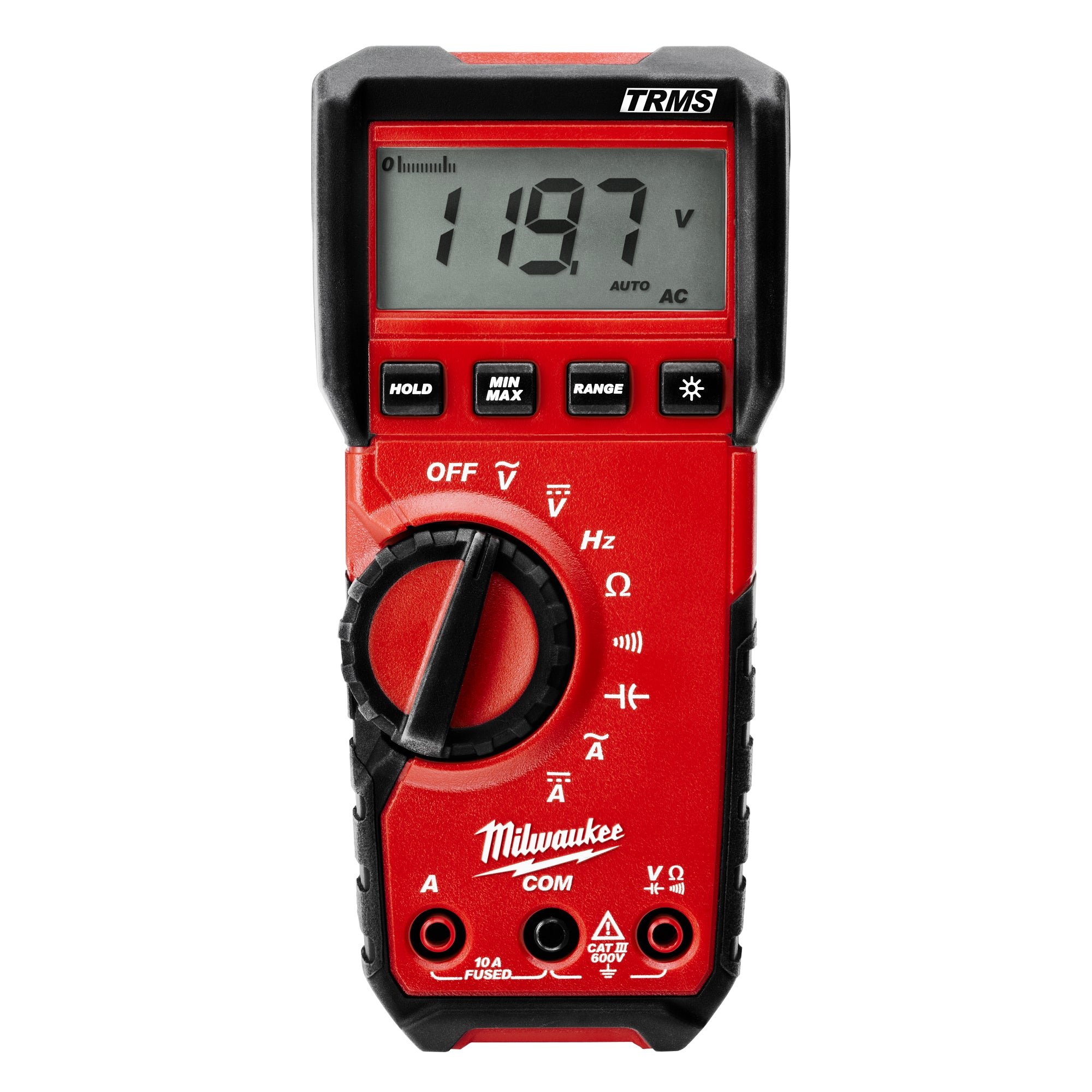

Heavy duty True-Rms meter for professional residential, commercial and industrial applications. The perfect tool for the professional commercial or industrial electrician; includes the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2216-20 digital multimeter features: true RMS measurement to accurately measure all applications; CATIII 600 V for increased safety in demanding electrical environments; AC voltage range of 6 millivolts to 600 V; DC voltage range of 600 millivolts to 600 V DC; resistance measurement from 600 ohms to 40 m Ohm; frequency measurement from 10 Hz to 50 kilohertz; detects continuity at less than 30 ohms; current measurement to 10 A AC/DC; hold function, min/max function and digital bar graph readout; black on white display and backlight for easier reading; rugged over-molding for improved durability and user grip; proprietary rail system for mounting accessories.
Features & Benefits
- Auto Range to mV
- Capacitance to 1000 μF
- CAT III 600V for increased safety
- Current Measurement to 10A AC/DC
- Frequency measurements from 10Hz to 50kHz
- Resistance range from 600 ohm to 40 Mohm
- Rugged over-molding increases durability and user grip
- True-RMS for accurate measurement in all applications
- Wide Voltage range to 600 AC /DC volts
Specifications
Category: Power Tools
- Calibration Needed: Yes - Recommend Calibration Service Once Every Year
- Auto Ranging: Yes
- Display Backlight: Yes
- Audible Continuity: Yes
- Peak Hold: Yes
- Continuity Beeper: Yes
- Resistance Capable: Yes
- DC Capable: Yes
- Frequency Capable: Yes
- Min/Max/Avg Feature: Yes
- TRMS: Yes
- HOLD MIN MAX: Yes
- Data Hold: Yes
- AC Capable: Yes
- Capacitance Capable: Yes
- Rugged Overmolding: Yes
- Bar Graph: Yes
- Measures/Detects: Voltage
- AC Response: TRMS
- Material *: Plastic
- Case Included: No
- Multiple On-Screen Displays: No
- PC Log: No
- Detachable Display Screen: No
- Current Clamp: No
- Duty Cycle Capable: No
- Temperature Capable: No
- Accessory Attachment: Magnetic Meter Holder
- Category Rating: III
- Test Lead Probe Ends: Electrical
- Digital/Analog: Digital
- Display Type: Digital
- Container Type: Box
- Case Color: Black; Red
- Color Finish: Black; Red
- Additional Contents: Batteries
- Display Design: Backlit Black On White LCD
- Continuity: Audible
- Battery Composition: Alkaline
- Battery Size: AA
- Instrument Counts: 9999
- DC Volts: 600.0mV - 600V
- Resistance Range & Resolution: 600 Ohm to 40 mOhm
- AC Voltage Maximum: 600
- DC Voltage Maximum: 600
- AC Voltage Range: 6.00mV to 600V
- Frequency Range: 50 kHz
- Resistance Range: 40MO
- Max. Ohms: 40000000
- Temperature Range: -40 deg F - 752 deg F (-40 deg C - 400 deg C)
- Battery Life: 240
- Weight (lb): 20.8
- Number of Ranges: 2
- Number of Batteries Required: 2
- Number of Functions: 11
- Operating Temperature Range: -104 to 122
- Capacitance (nF): 1000
- Capacitance Range: 10 pF to 1000 uF
- Instrument Frequency Counter Range: 10 Hz - 50 kHz
- DC Amperage Maximum: 10
- Current AC DC: 10
- AC Amperage Maximum: 10
- Peak Amps (A) *: 10
- Capacitance Range & Resolution: 0.1-1000
- DC Current Range & Resolution: 0.001-10.00A
- AC Current Range & Resolution: 0.001-10.00A
- DC Basic Accuracy Range: +/-0.05% of Reading + 2 Digits
- Battery Quantity and Size: (2) AA Batteries
