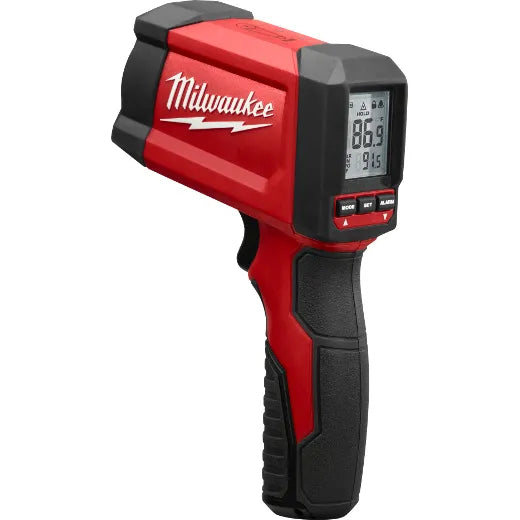

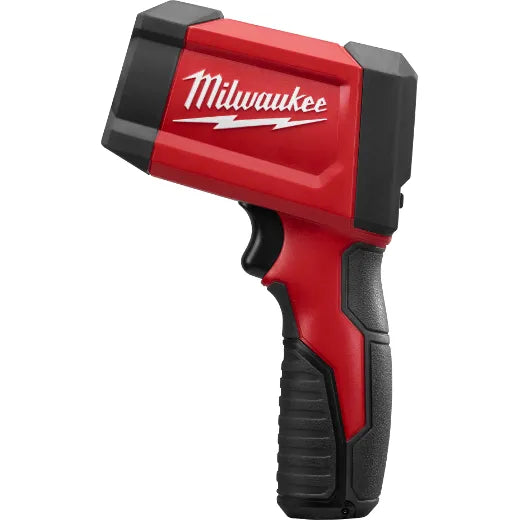

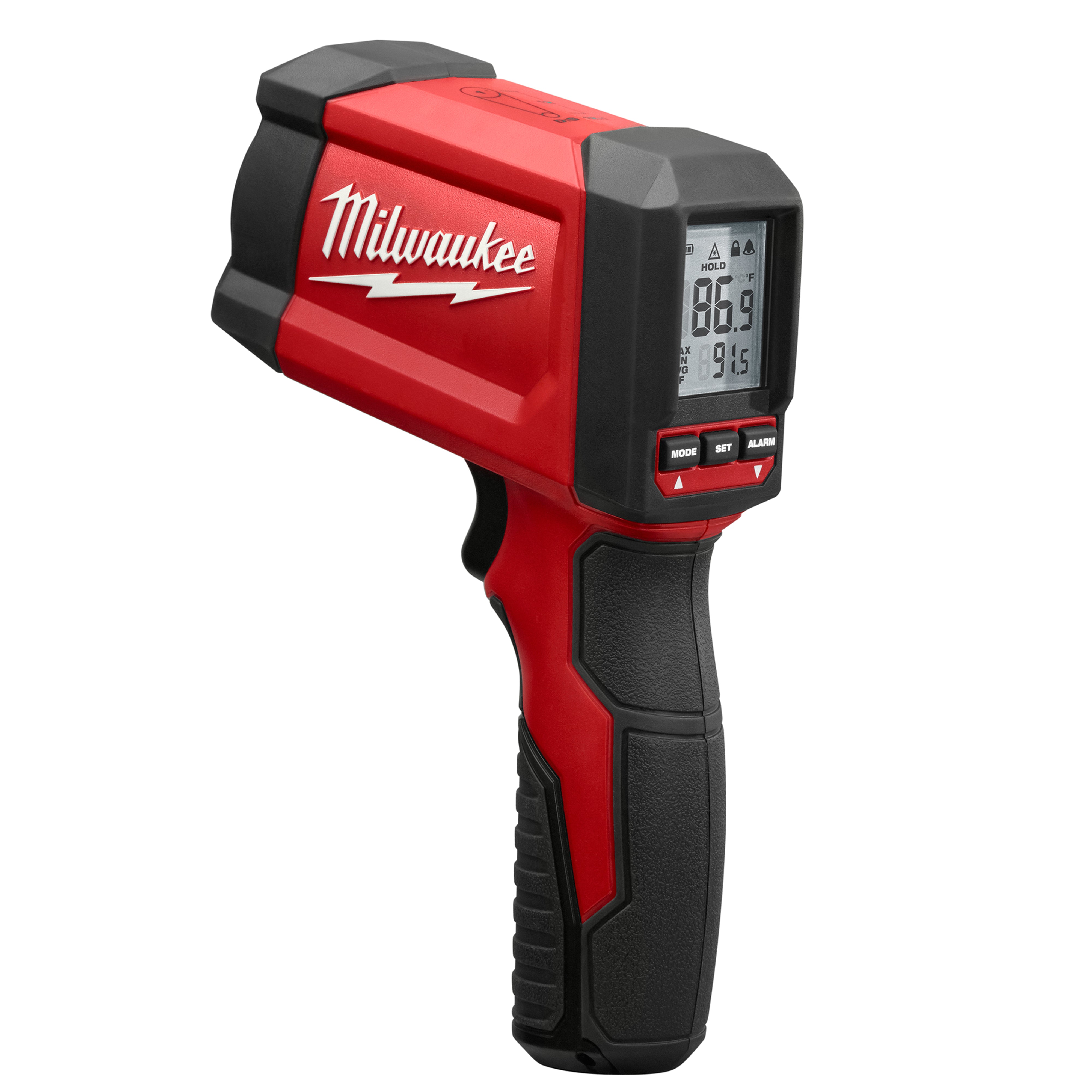

Milwaukee 2268-20, 12:1 Infrared Temp-Gun
Regular price
$134.45
Got questions?
Feel free to get in touch
Product Details

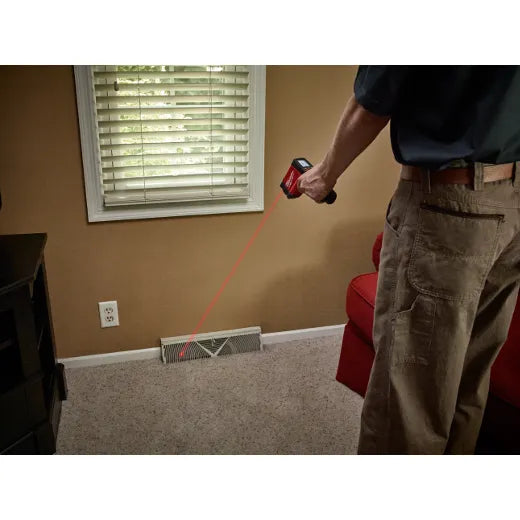

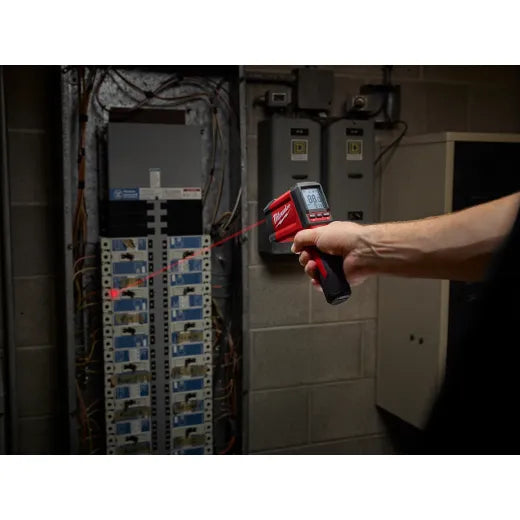

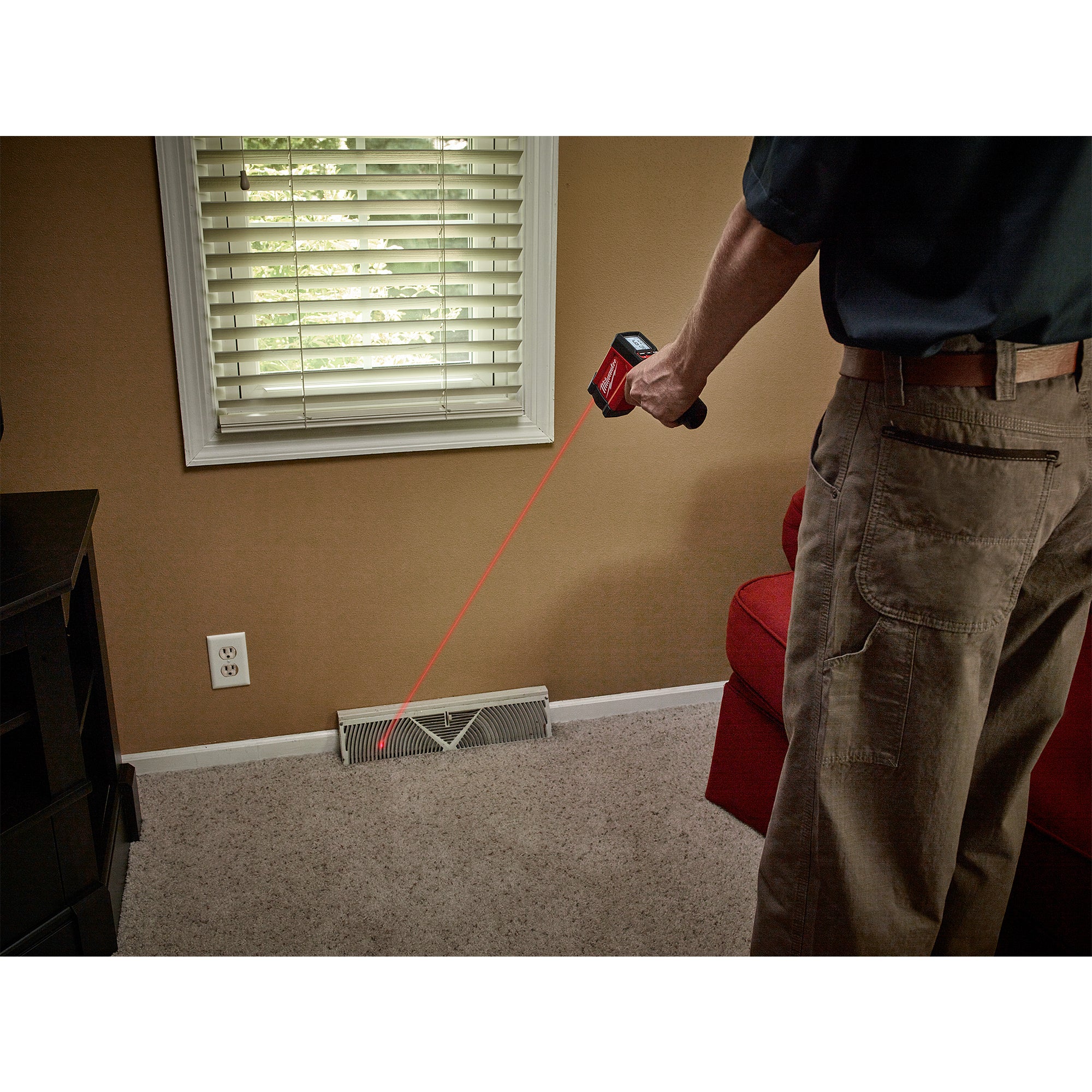

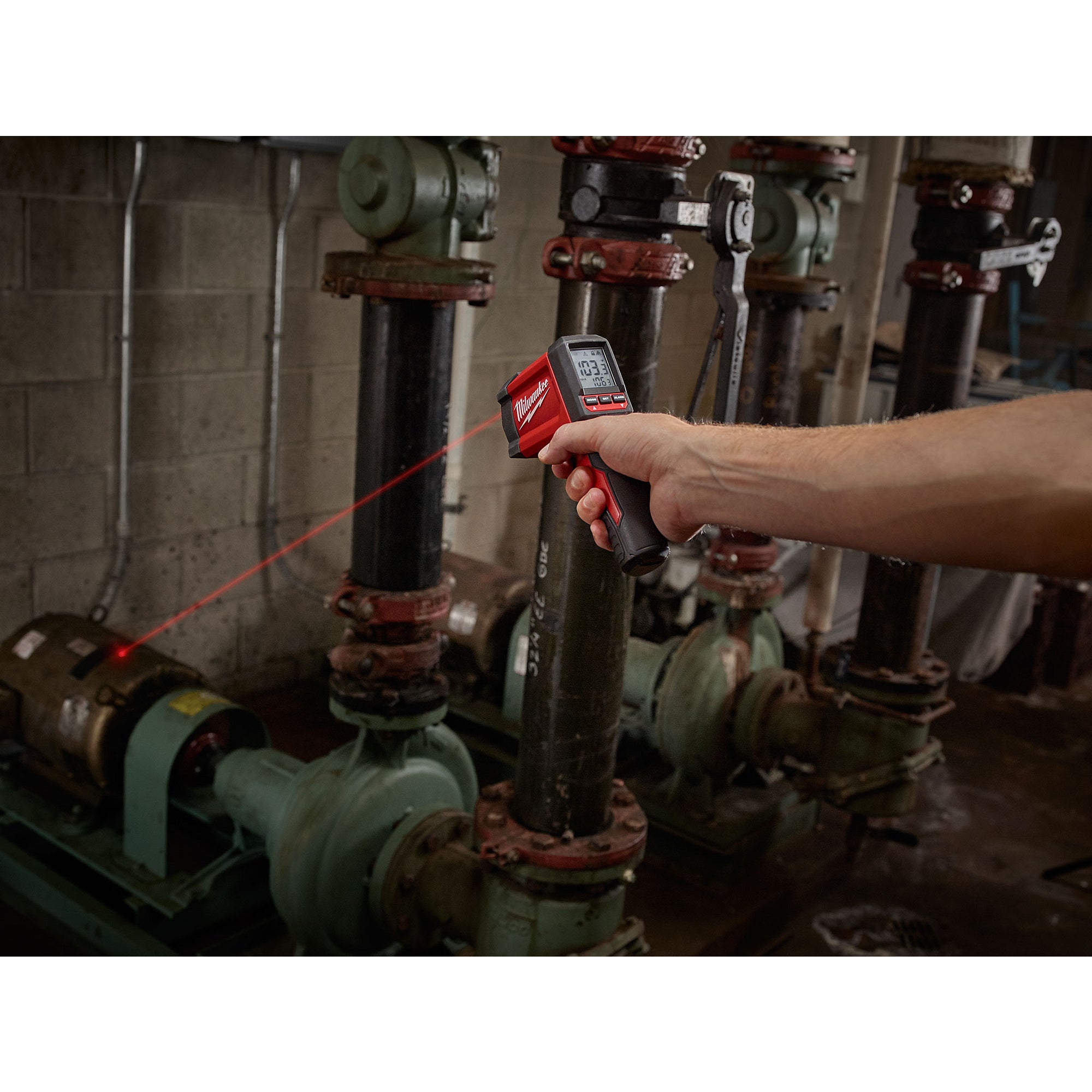

The Milwaukee infrared temp-gun delivers the clearest screen and faster scanning. With stunning readability indoor & outdoor, this infrared temp-gun provides easier readings for professional, residential, commercial and industrial users in any environment. Simple high/low alert setup makes scanning easier and faster. With a 7-point reinforced frame, fully bumpered nose, and shielded LCD, the Milwaukee infrared temp-gun survives 6 ft drops for superior durability.

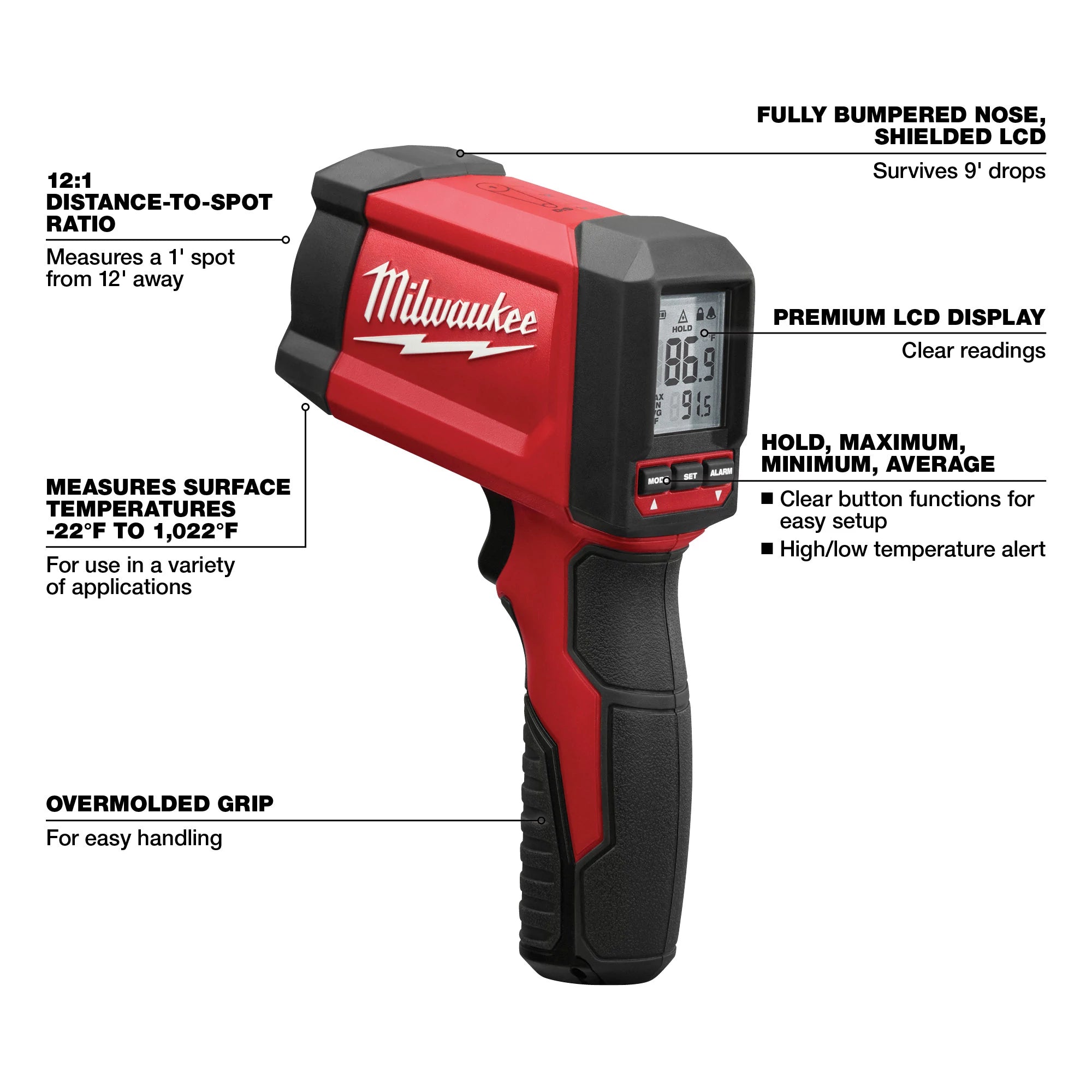

Features & Benefits
- 0.95 fixed emissivity

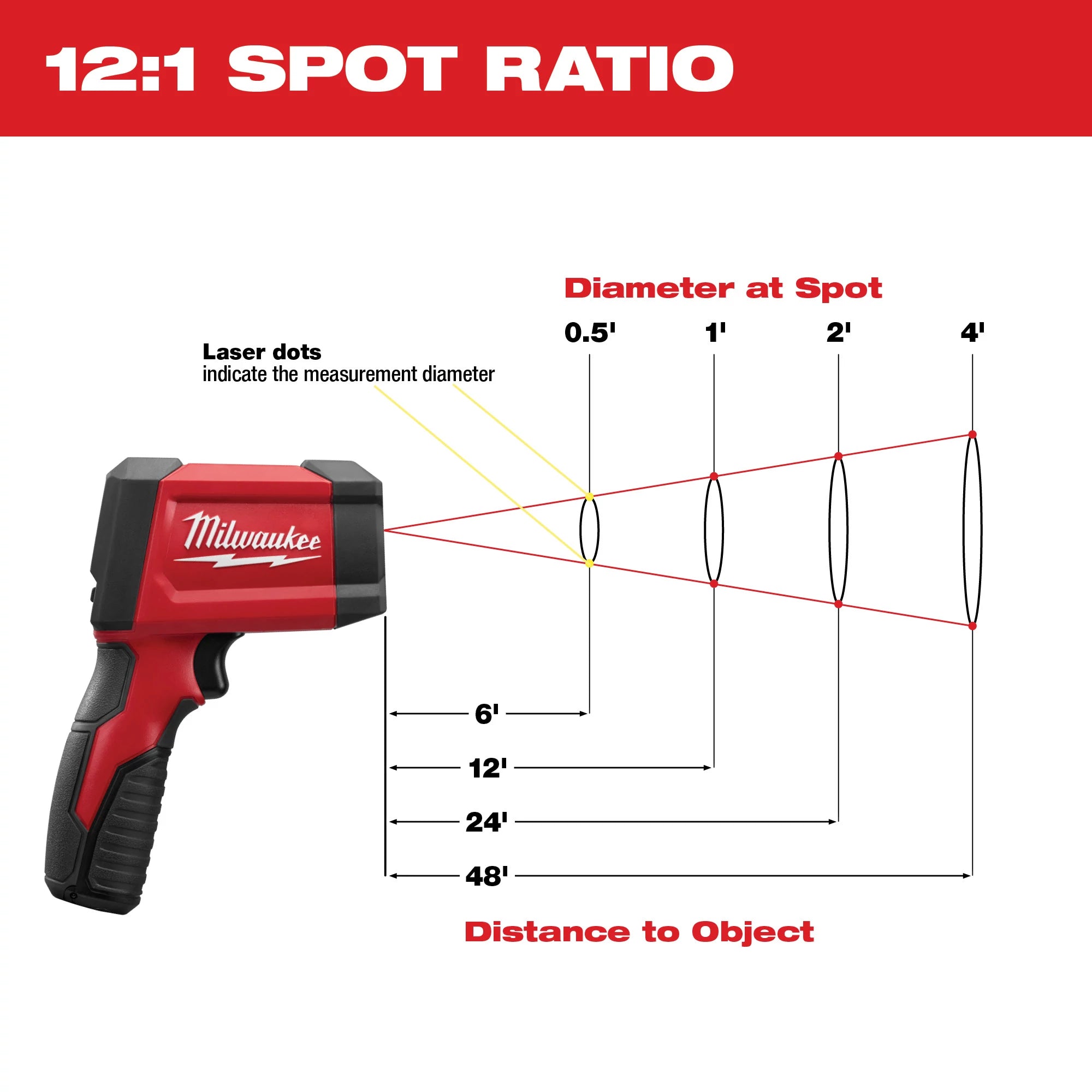

- 12:1 distance-to-spot ratio measures a 1 ft. spot from 12 ft. way
- Clear button functions, easy setup
- Fully bumpered nose, shielded LCD Survives 6' ft drops
- Hold, Max, Min, Avg, Diff Modes

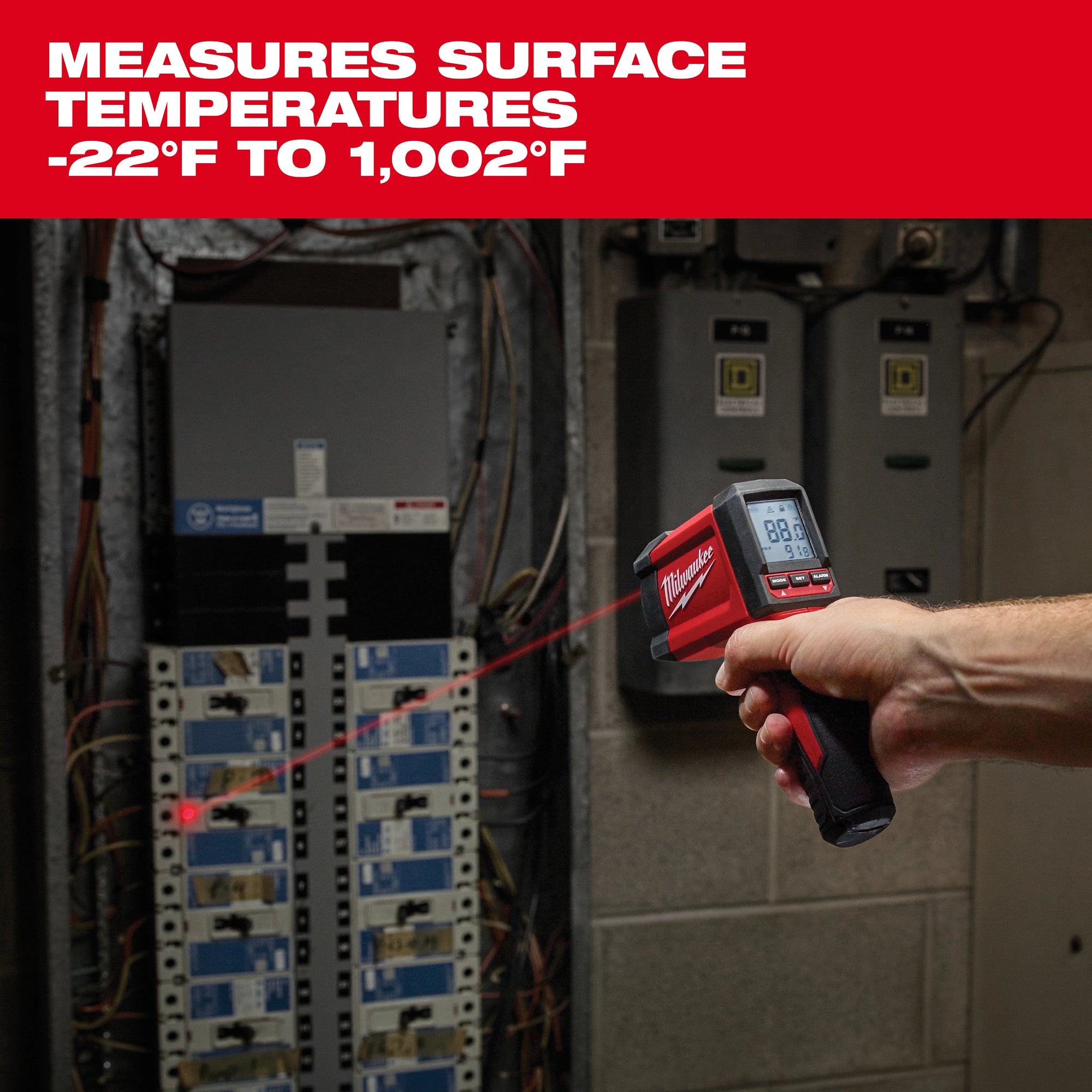

- Measures surface temperatures -22⁰F to 1022⁰F for use in a variety of applications
- Overmolded grip for easy handling
- Premium LCD display for clear readings
- User-configurable High/Low Temperature Alert
Specifications
Category: Power Tools
- Trigger: Yes
- Rubber Overmolding: Yes
- Laser On Off: Yes
- Trigger Lock: Yes
- Laser Sighting - Infrared: Yes
- Alarm Hi Lo: Yes
- Data Hold: Yes
- Alarm Indication: Visual
- Color Finish: Red
- Material *: Plastic
- Internal Memory: Not Featured
- Battery System *: Not Applicable
- Memory Card Format Accepted: None
- Calibration Certificate Included: No
- Display Description: LCD
- Display Type: LCD
- Detector Type: Infrared
- Emissivity: Fixed, 0.96
- Standards: EN 61326-1:2013, EN 61326-2-2:2013, 21 CFR 1040.10 and 1040.11, Class II Laser
- Memory - Instrument: Avg., Dif., Max., Min.
- Spectral Response - Infrared: 8.0 to 14.0um
- Infrared Spectral Band: 8 to 14μm
- Drop Tested (ft): 6
- Maximum Temperature Reading (°C): 550
- Storage Temperature: -4 to 140
- Temperature Range Infrared (C): -30 Degrees to 550 Degrees
- Minimum Temperature Reading (°C): -30
- Temperature Range Infrared (F): -22 Degrees to 1022 Degrees
- Minimum Temperature Reading (°F): -22
- Maximum Temperature Reading (°F): 1022
- Relative Operating Humidity Range: 10 to 85% at 25⁰ C
- Temperature Reading Accuracy +/- (%): 1.8
- Screen Size (in): 1.77
- Focus Spot Size and Distance - Infrared: 1 in @ 12 in
- Field Of View: 1 Ft. From 12 Ft.
- Distance to Spot Ratio: 0.500694444444444
- Display Resolution: 0.1° F (0.1° C)
- Resolution: 0.1 Degrees F/C
- Operating Temperature Range: 0 to 122
- Repeatability: +/-0.08%
- Accuracy: +/- 1.8%

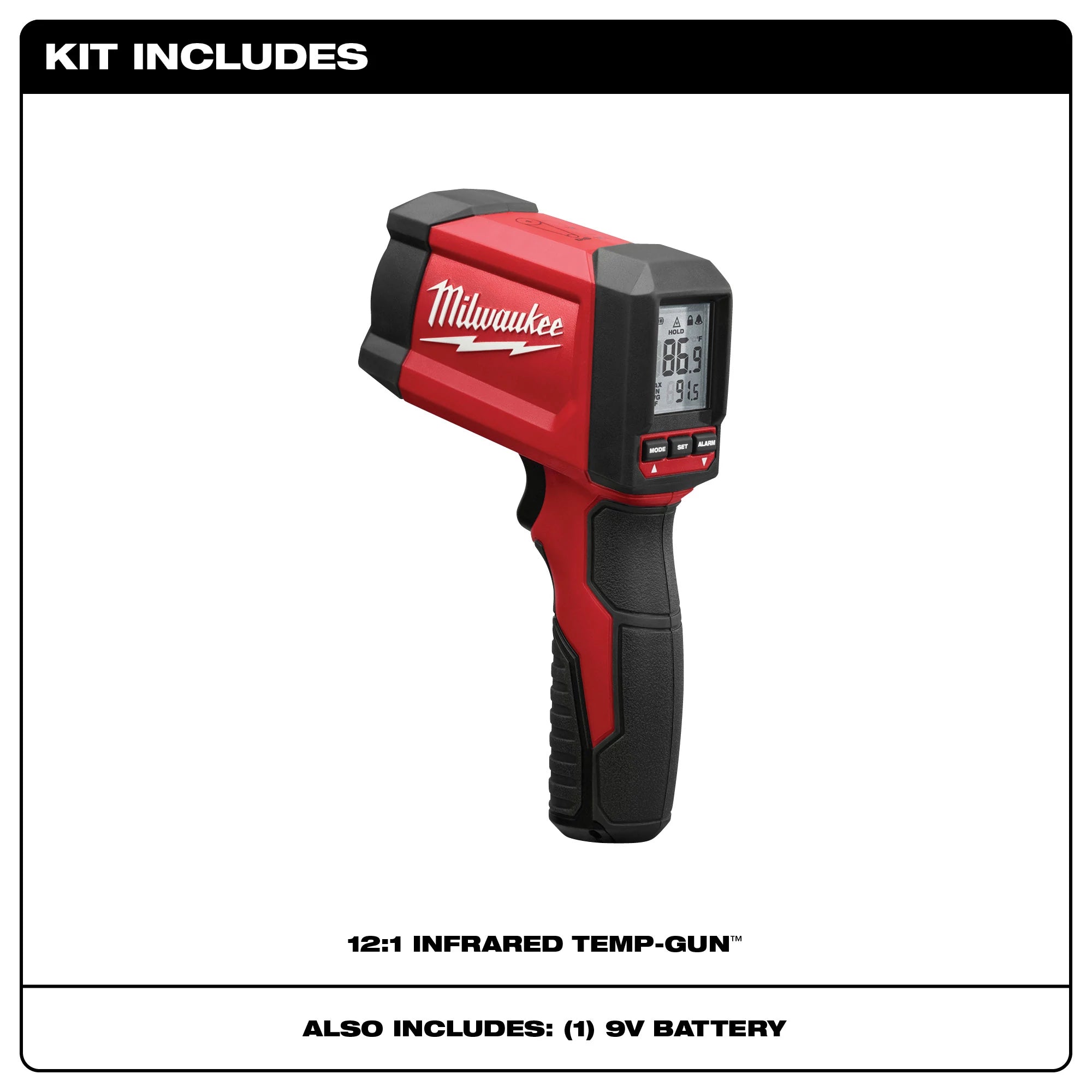

- Additional Contents: (1) 9V Battery, Manual
