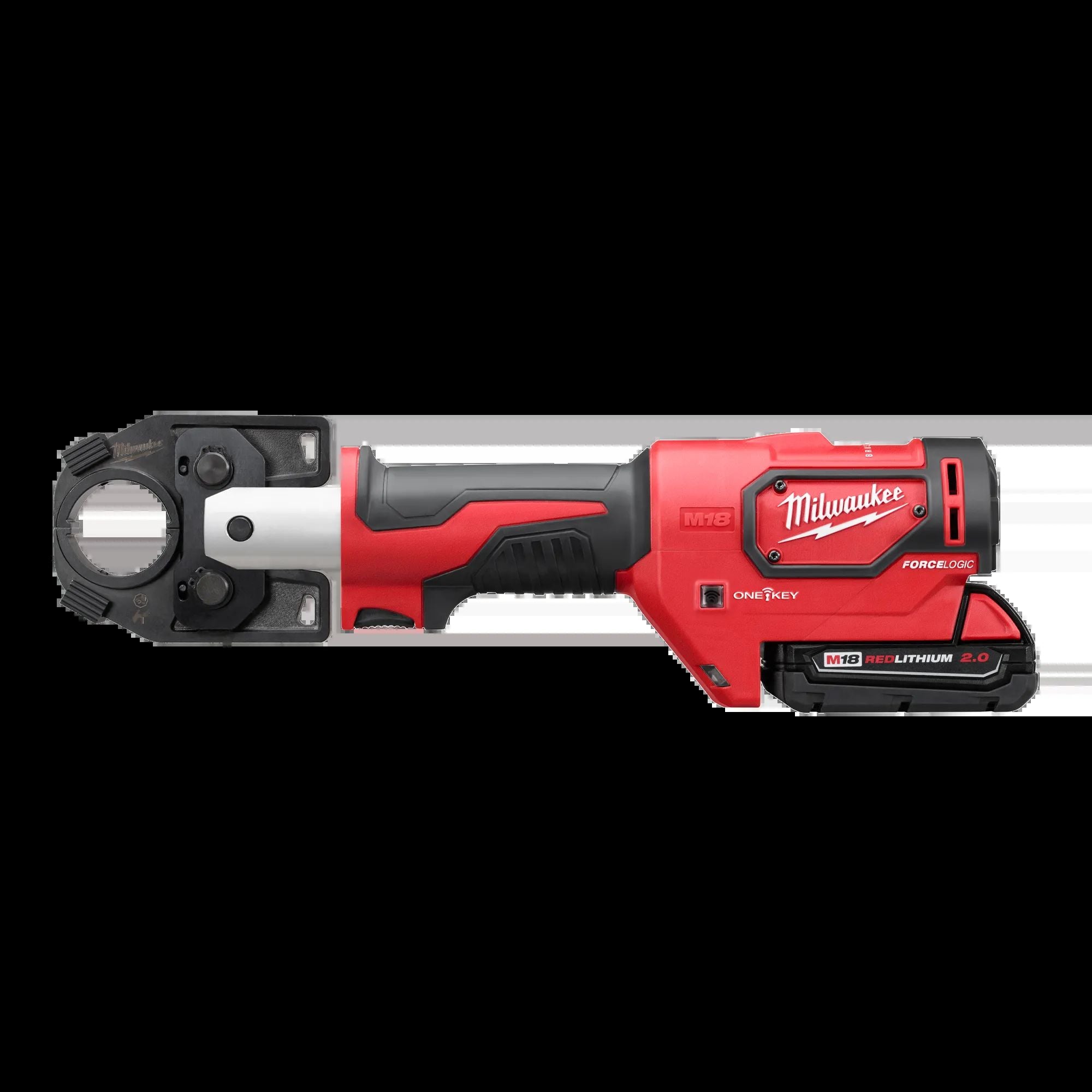

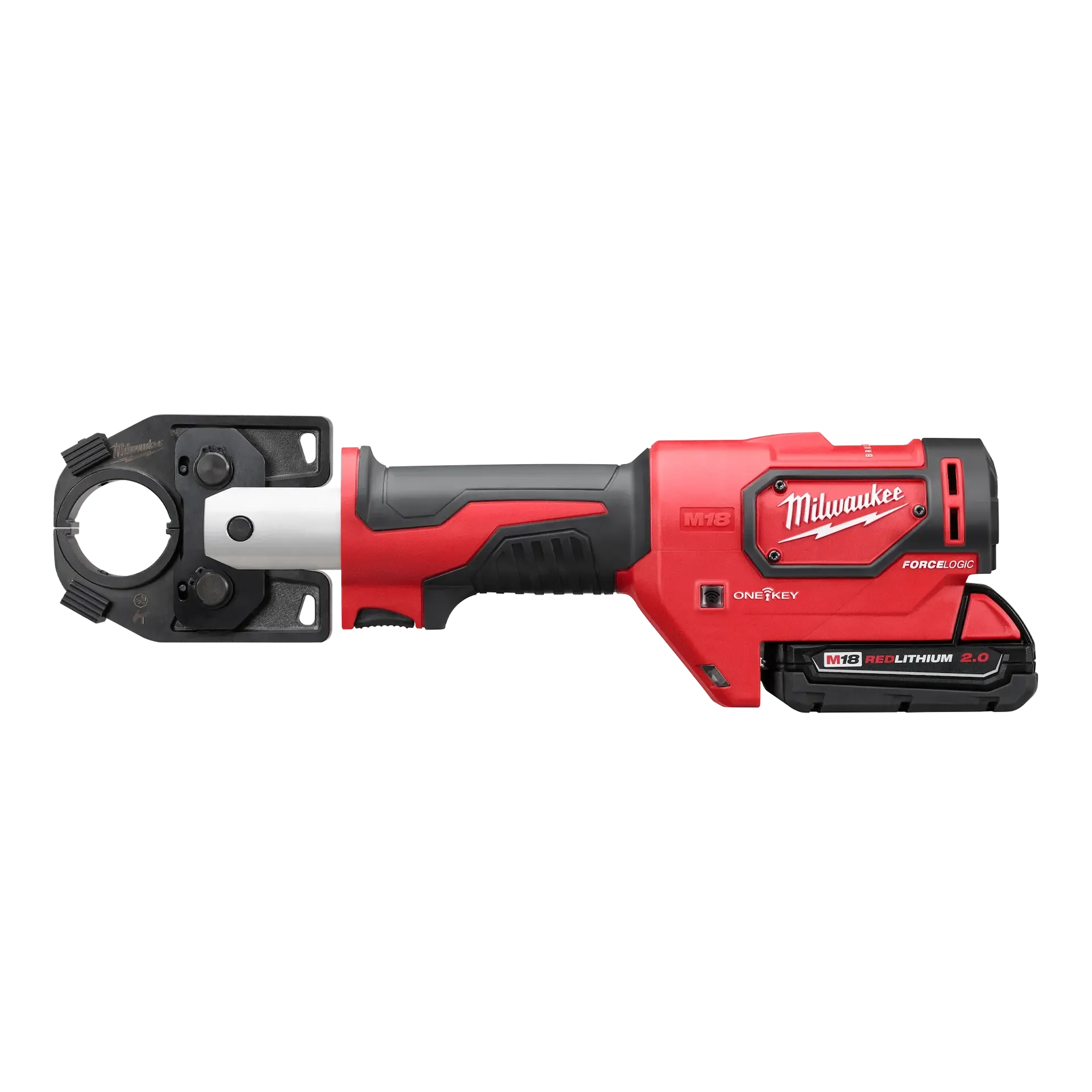

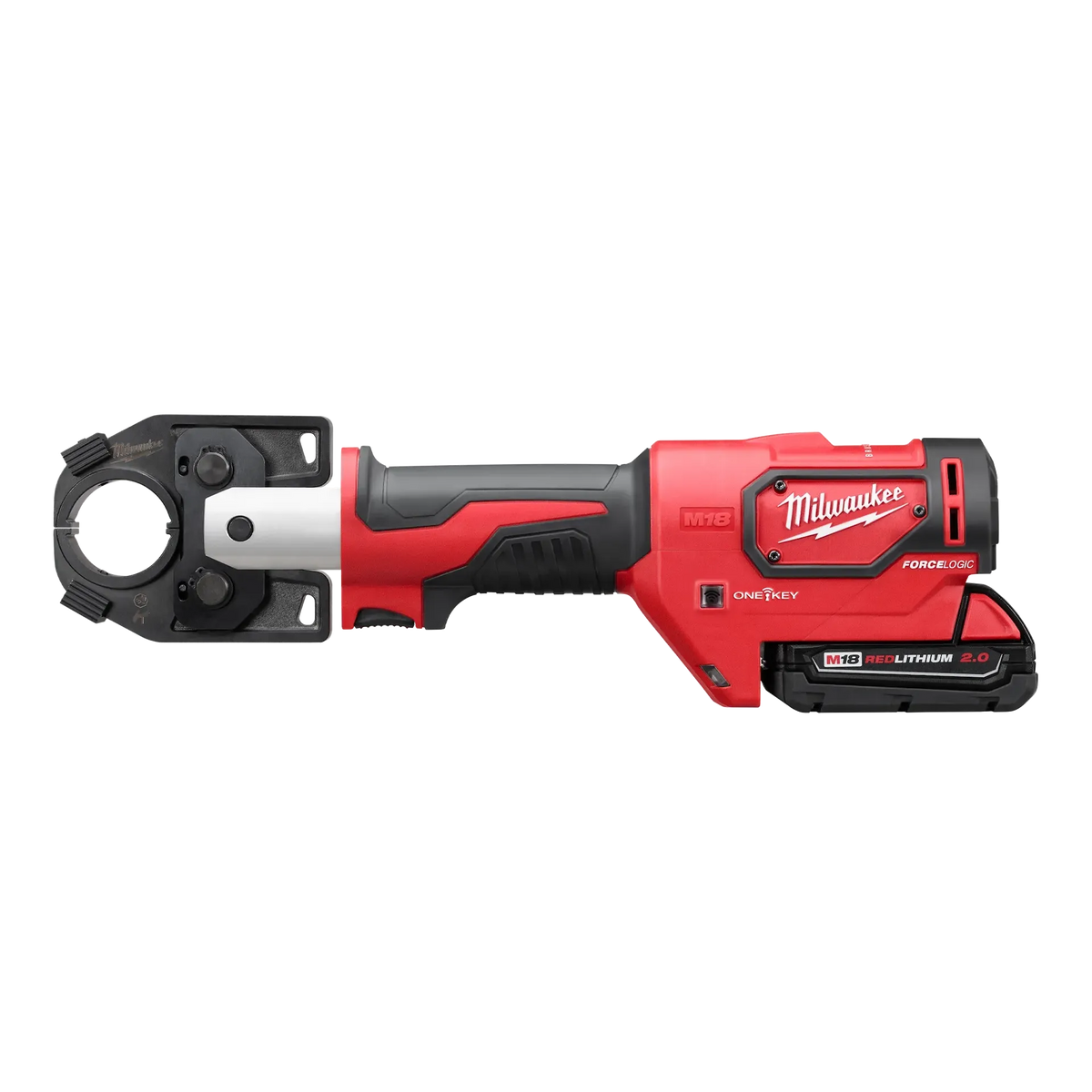

Milwaukee 2679-750C, M18™ FORCE LOGIC™ 600 MCM Cu Crimper Kit w/ 750 MCM Expanded Jaw
Got questions?
Feel free to get in touch

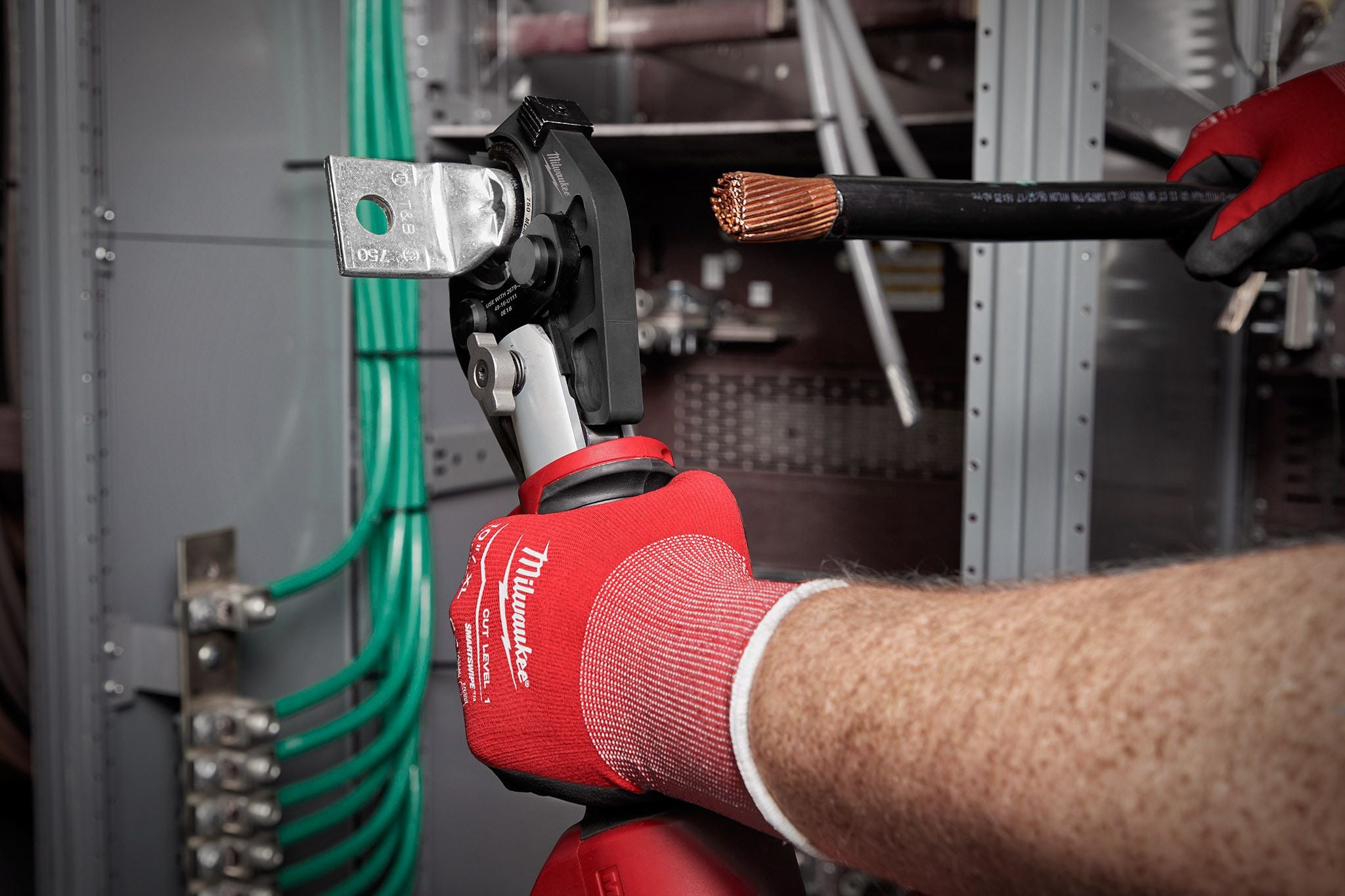

The M18™ FORCE LOGIC™ 600 MCM Cu Crimper Kit w/ 750 MCM Expanded Jaw is the Most Accurate Way to crimp. The crimper produces cULus classified crimps according to the UL 486A-B classification standards for #8 - 750 MCM Copper & Dual Rated Anderson, Blackburn® Burndy, Ilsco, Panduit, Penn-Union and Thomas & Betts Connectors. The copper crimper uses MILWAUKEE® U Style Dies that feature vivid wire size markings and industry-standard color markings. The crimper dies also imprint wire size onto the connector after crimp completion. The crimper is made for commercial electricians and is designed to provide you with ease of use and easy inspection. The crimper jaw design holds the connector for instant alignment while Predictive Force Monitoring (PFM™) allows you to reach proper pressure on every crimp. PFM™ actively measures pressure and automatically modifies all performance levels of the system. This allows the high-speed hydraulic pump to power through the beginning of a cycle and land at precisely the right pressure, protecting internal components, to complete the crimp. As a result, our crimpers are the most accurate, fastest, and most durable crimpers in the world. Our copper crimper feature a fully enclosed high-speed hydraulic pump, POWERSTATE™ Brushless Motor, REDLINK™ Electronics, and REDLITHIUM™ Batteries providing you with Ultimate Reliability in the toughest conditions and up to 4x longer life. They also feature ONE-KEY™ Technology, enabling you to store real-time crimp data, generate professional reports, view historical tool performance data and sync it all wirelessly to the cloud for easy access. In addition to the crimper, crimping jaws, and copper crimping dies, the kit includes two M18™ REDLITHIUM™ CP2.0 battery packs, an M18™ & M12™ Multi-Voltage Charger, and a carrying case.
Features & Benefits
-

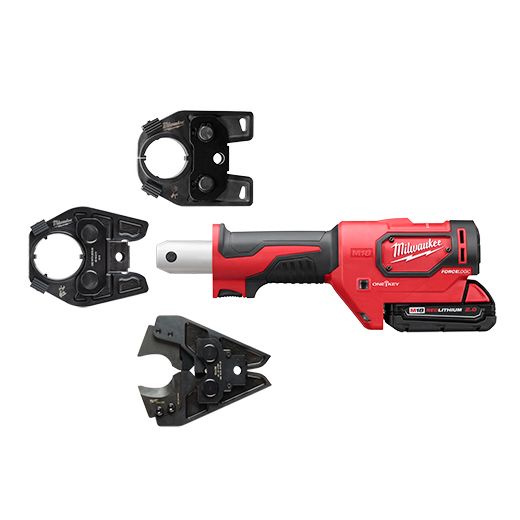

Easily Interchangeable with 600 MCM Crimping Jaw (49-16-U000), 750 MCM Crimping Jaw (49-16-U111), and 750 MCM Cutting Jaw (49-16-2780)
-
Hydraulic system is optimized for consistent performance from 0°F - 122°F
-
Kit includes full set of #8-750 MCM Copper 6T U Style Dies
-

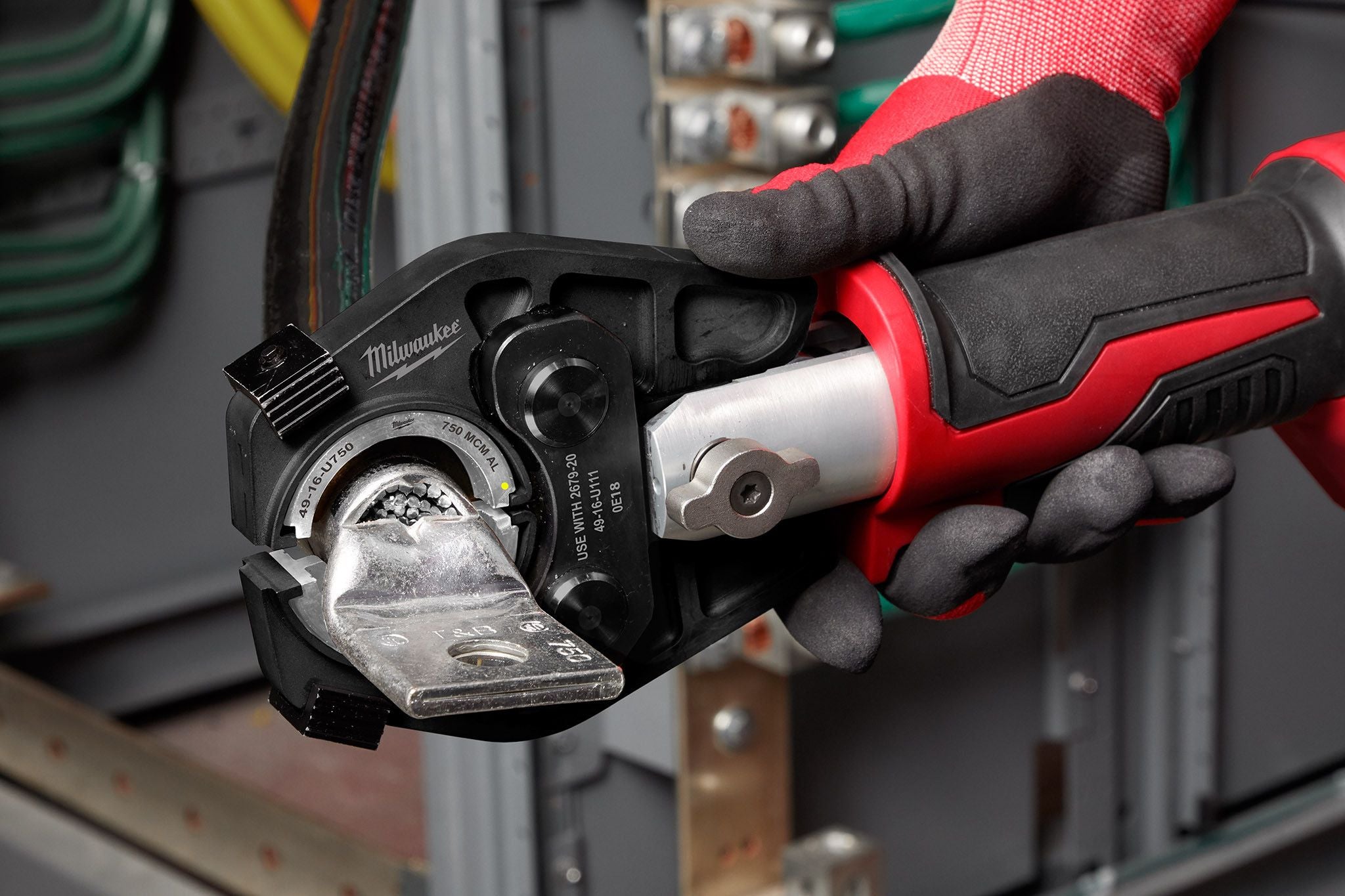

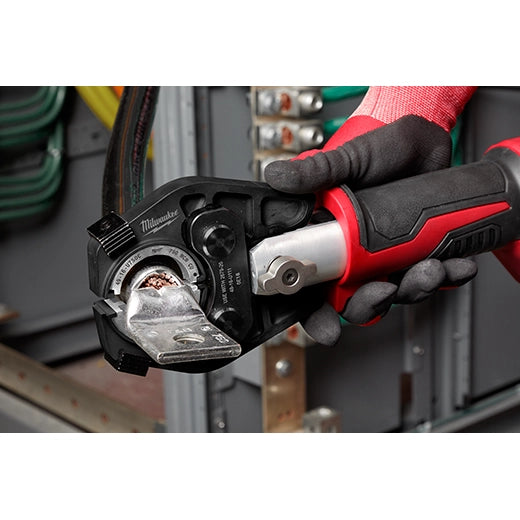

Proprietary jaw holds connector for instant alignment
-
Weather protected electronics keep dirt, dust and moisture out
-

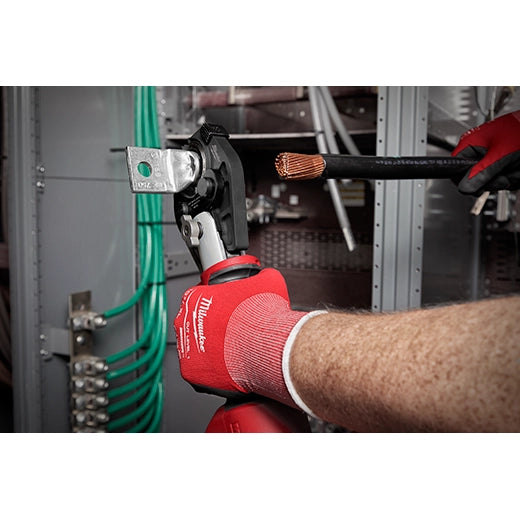

Easy-open Jaw for fastest repetitive crimping
-
In-line design and 350 degree head rotation: easy access in the tightest panels
-
PFM (Predictive Force Monitoring) ensures optimal pressure every time, LED light provides instant pressure verification
-
Tool records and stores every crimp made, ONE-KEY™ enabled for professional report building
- Compatible with all M18™ batteries
Specs
-
Battery System: M18™
-
Power Source: Cordless
- Motor Type: Brushless
-
Length: 16.68 in
-
Weight: 7.65 lb
- Height: 5.28 in
-
Width: 3.15 in
-
Warranty: 5 Year Limited Warranty
- Width: 1.6 in
-
Battery: Lithium-Ion
- Head Rotation: 350 degrees
-
Auto Reset: Yes
-
Balanced Center Grip: Yes
- Adapative Pressure Control System: Yes
-
Full Pressure Indicator: Yes
-
OneKey Compatible: Yes
- Voltage: 18V
- Tool Warranty: 5 Year Tool, 2 Year Battery

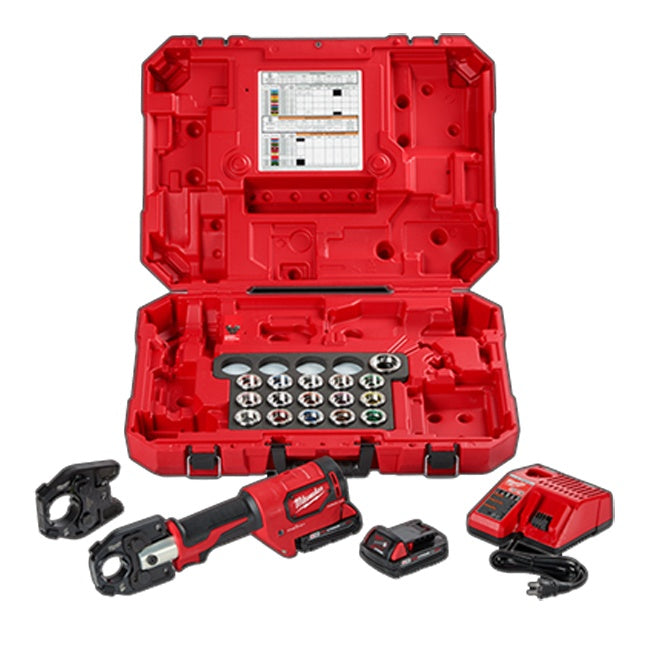

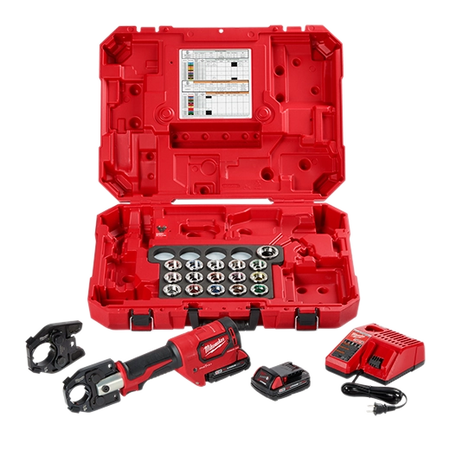

Includes
-

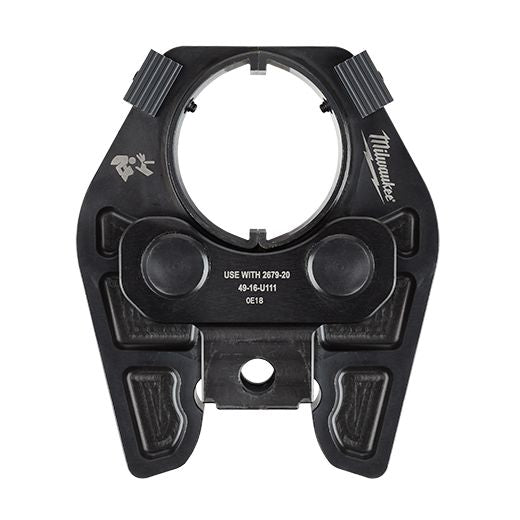

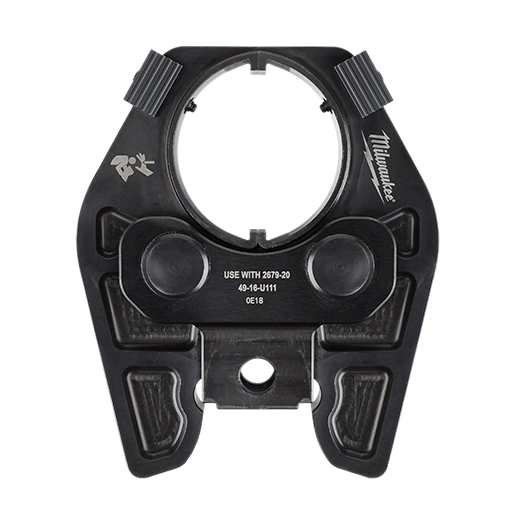

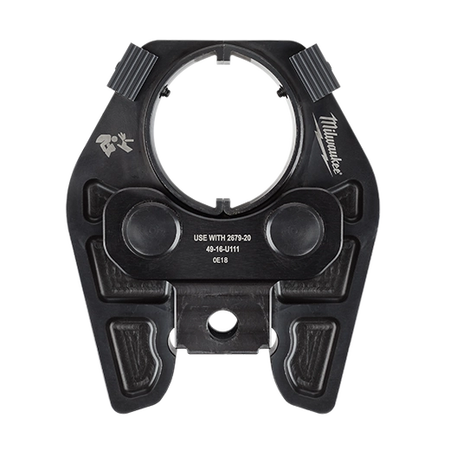

(1) 750 MCM Cu/Al Crimping Jaw for M18™ FORCE LOGIC™ 600 MCM Crimper
- (1) 750 MCM Copper 6T U Style Die (49-16-U750C)
-
(1) 600 MCM Copper U Style Die (49-16-U600C)
- (1) 500 MCM Copper U Style Die (49-16-U500C)
-
(1) 400 MCM Copper U Style Die (49-16-U400C)
- (1) 350 MCM Copper U Style Die (49-16-U350C)
-
(1) 250 MCM Copper U Style Die (49-16-U250C)
- (1) 4/0 Copper U Style Die (49-16-U04AC)
-
(1) 3/0 Copper U Style Die (49-16-U03AC)
- (1) 2/0 Copper U Style Die (49-16-U02AC)
-
(1) 1/0 Copper U Style Die (49-16-U01AC)
- (1) #1 Copper U Style Die (49-16-U001C)
-
(1) #2 Copper U Style Die (49-16-U002C)
- (1) #4 Copper U Style Die (49-16-U004C)
-
(1) #6 Copper U Style Die (49-16-U006C)
- (1) #8 Copper U Style Die (49-16-U008C)
-
(2) M18™ REDLITHIUM™ CP2.0 Battery
- (1) M18™ & M12™ Multi-Voltage Charger
- (1) Carrying Case
