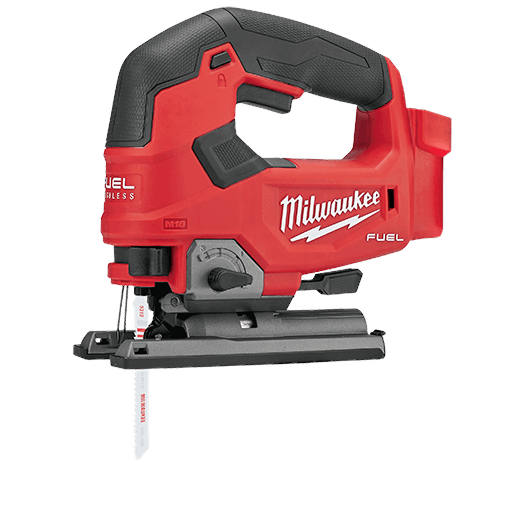

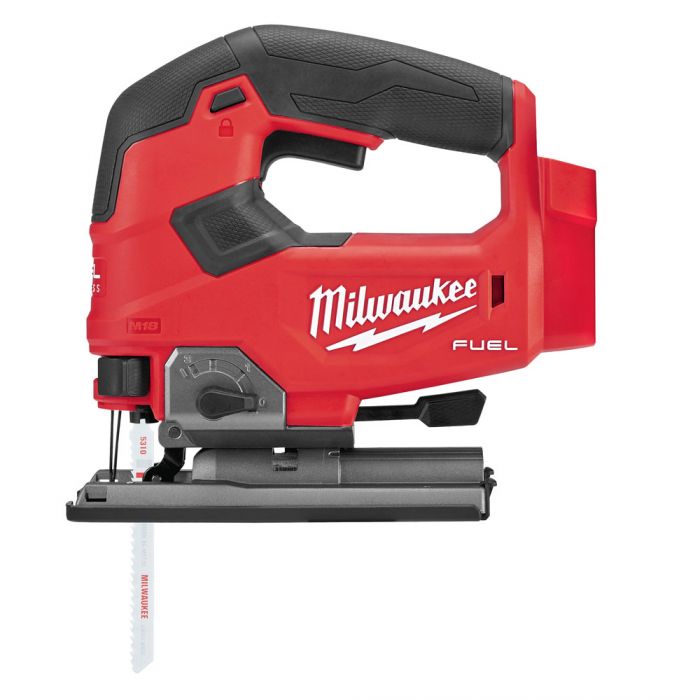

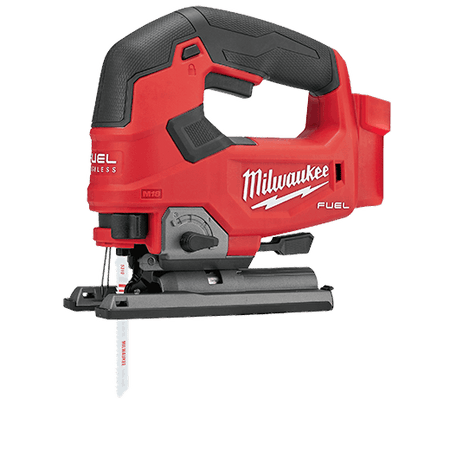

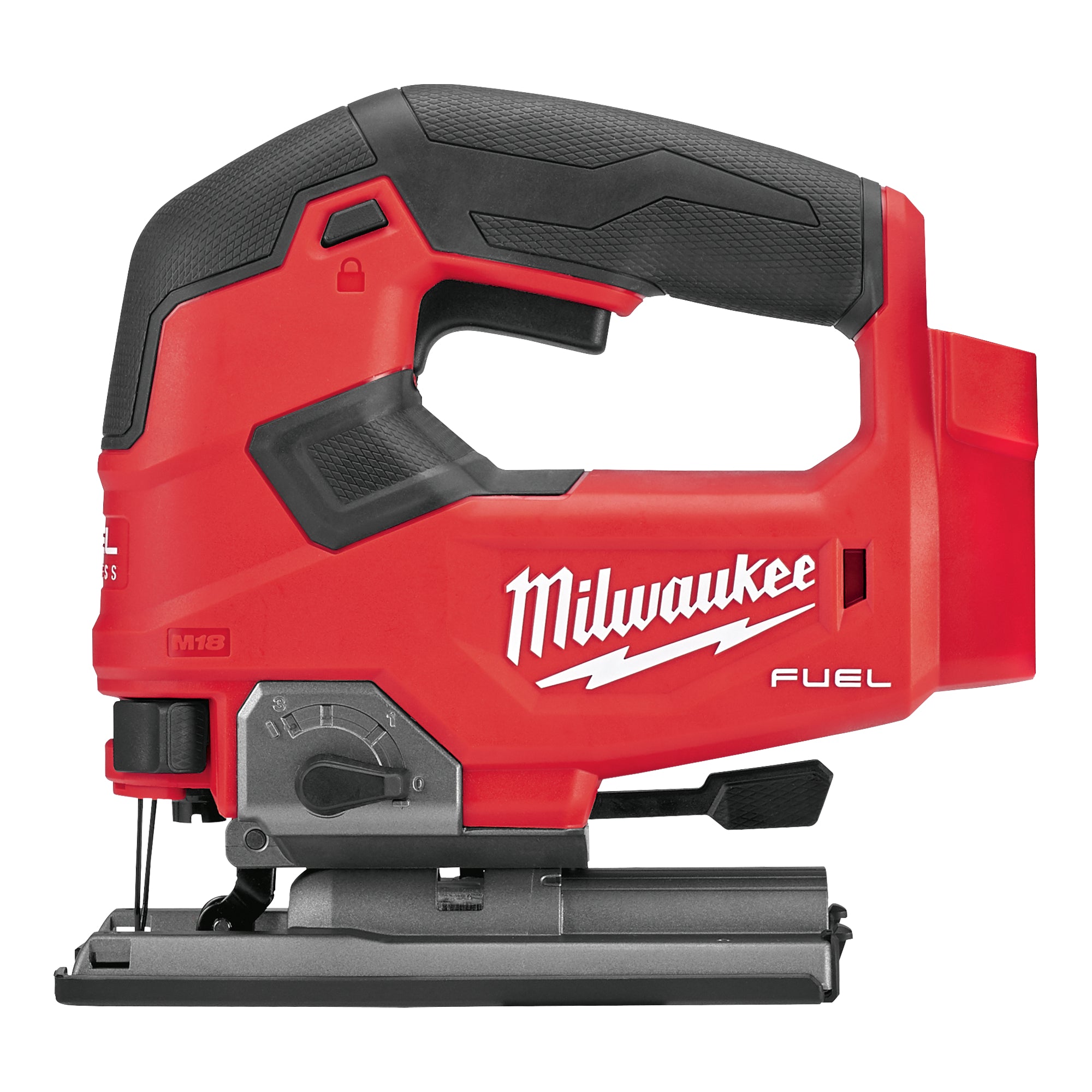

Milwaukee 2737-20, M18 FUEL D-Handle Jigsaw (Tool Only)
Got questions?
Feel free to get in touch

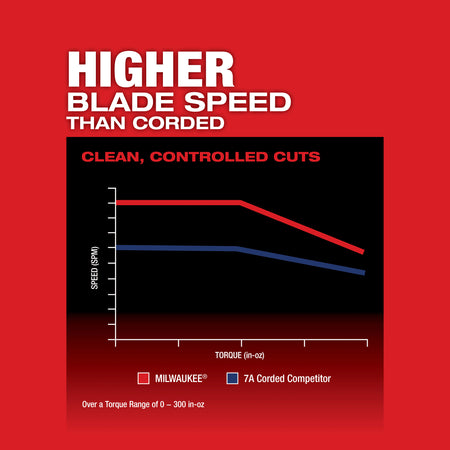

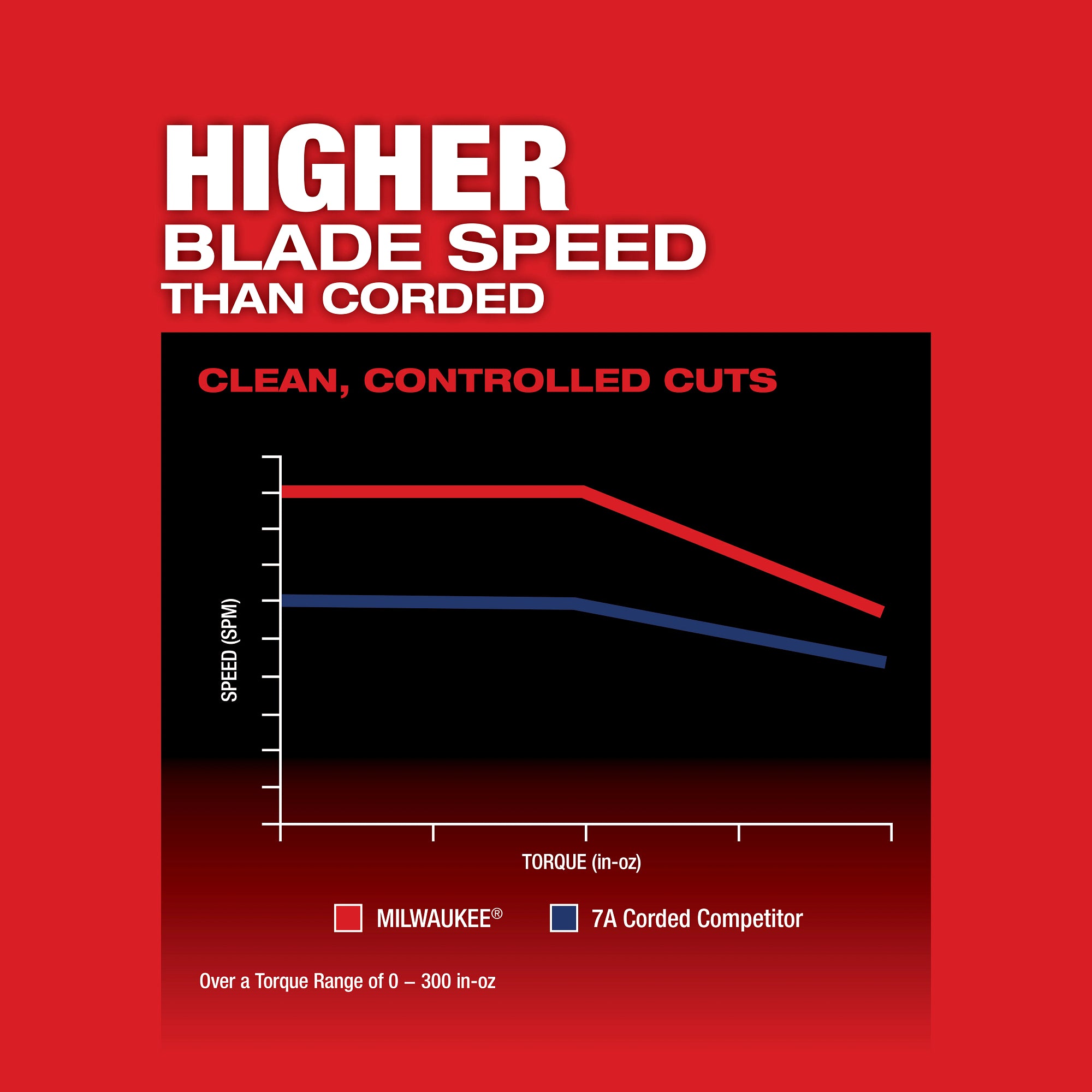

The M18™ FUEL™ D-handle jig saw combines power, blade speed and precision, to provide the highest quality cuts in a wide variety of materials. The M18™ FUEL™ D-handle jig saw leverages the POWERSTATE brushless motor and REDLINK Plus™ intelligence to provide higher blade speed than corded jig saws at 3500 strokes per minute for clean controlled cuts with minimized chipping or bucking. Leveraging the M18™ REDLITHIUM™ XC5.0 battery the M18™ FUEL™ D-handle jig saw provides up to 105 linear feet of cutting in 3/4 in. laminated particle board, delivering all day productivity with less trips to the charger. The saw features tool-less blade change, tool free bevel adjust with pin-detents at 0°; 15°; 30°; and 45° as well as an LED light and on/off blower to keep the cut line visible while cutting.

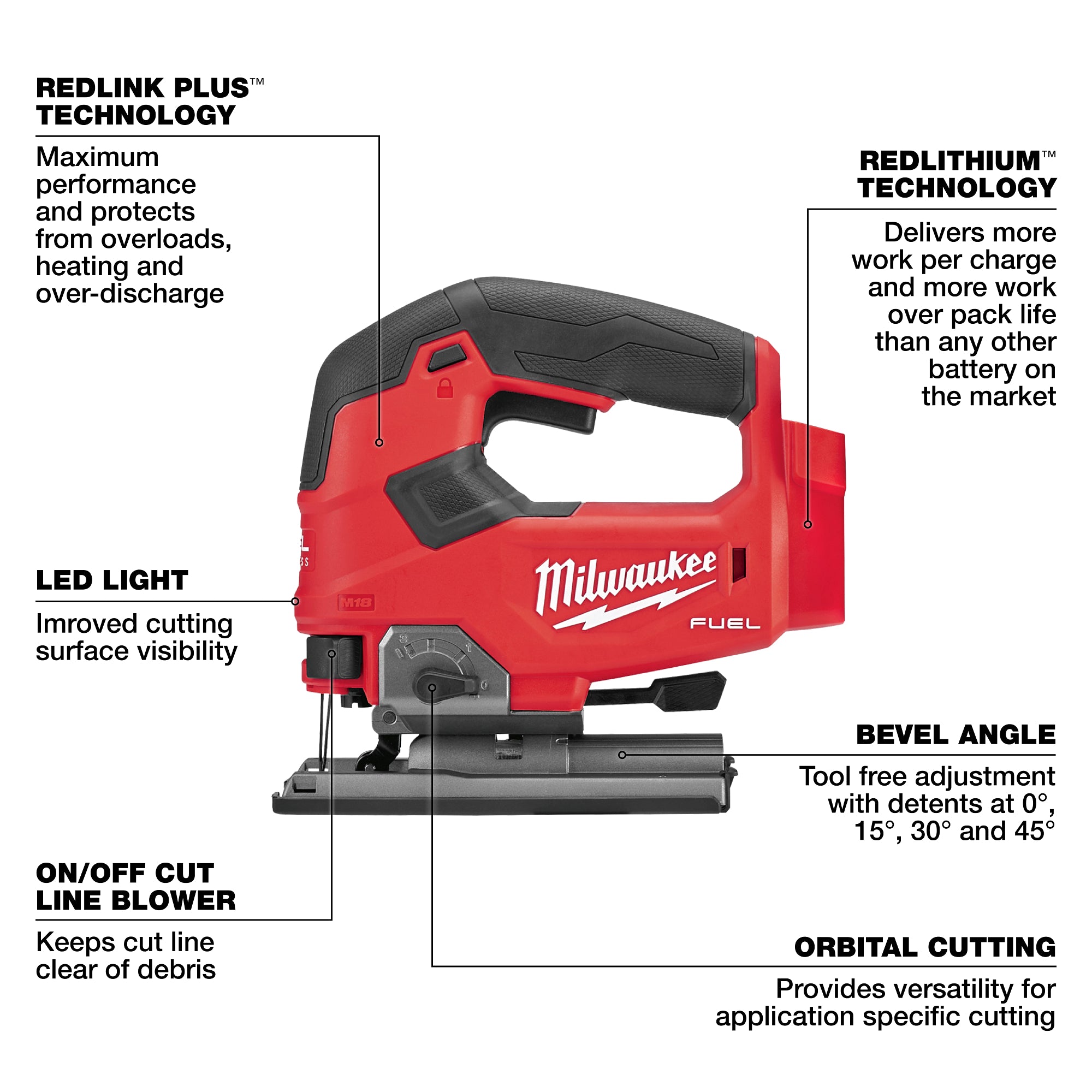

Features & Benefits
- 4-position orbital cutting provides versatility for application-specific cutting
- Accepts T-Shank jig saw blades

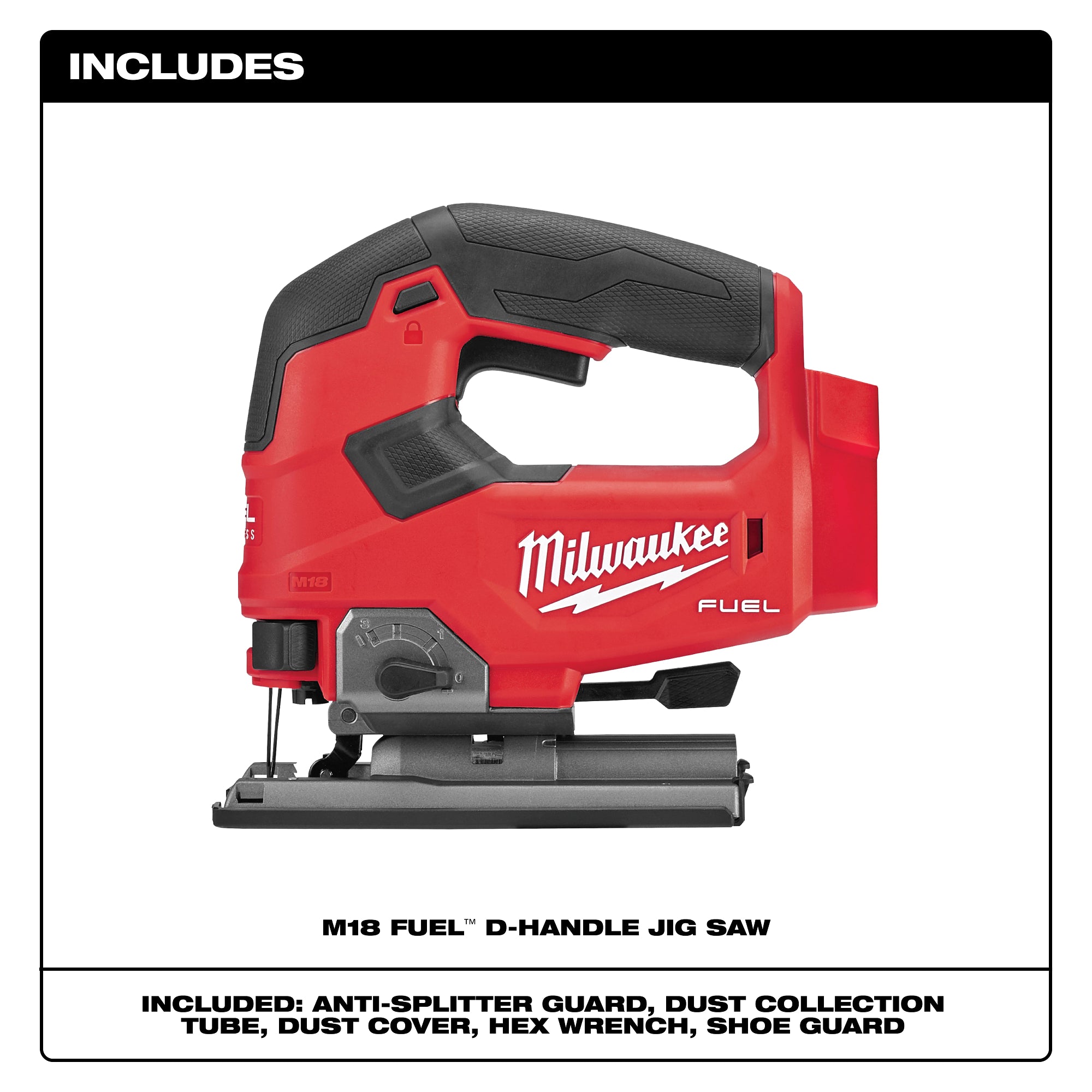

- Includes dust cover and dust extraction tube
- Includes non-marring shoe cover for protection of finished surfaces

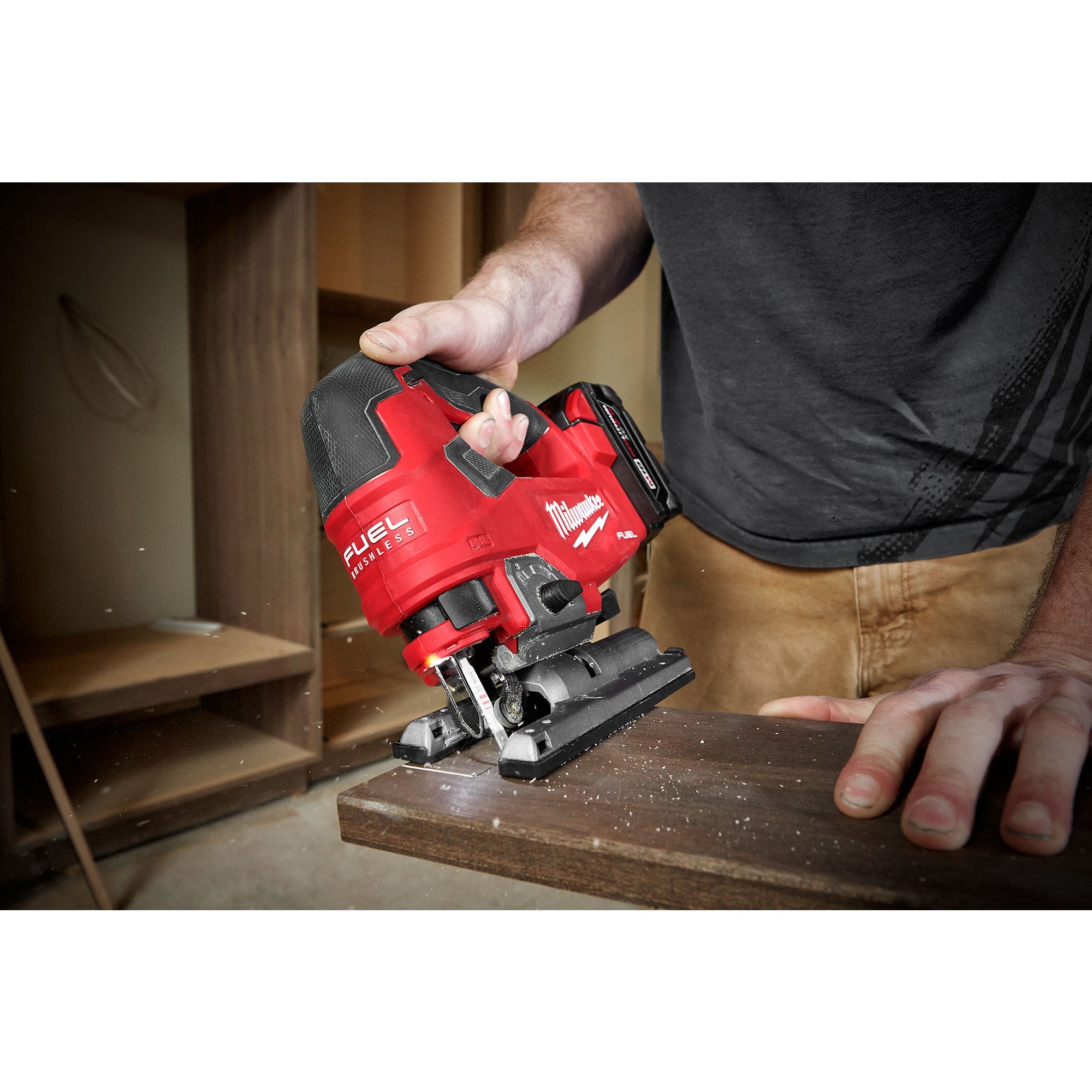

- LED light illuminates the cut line

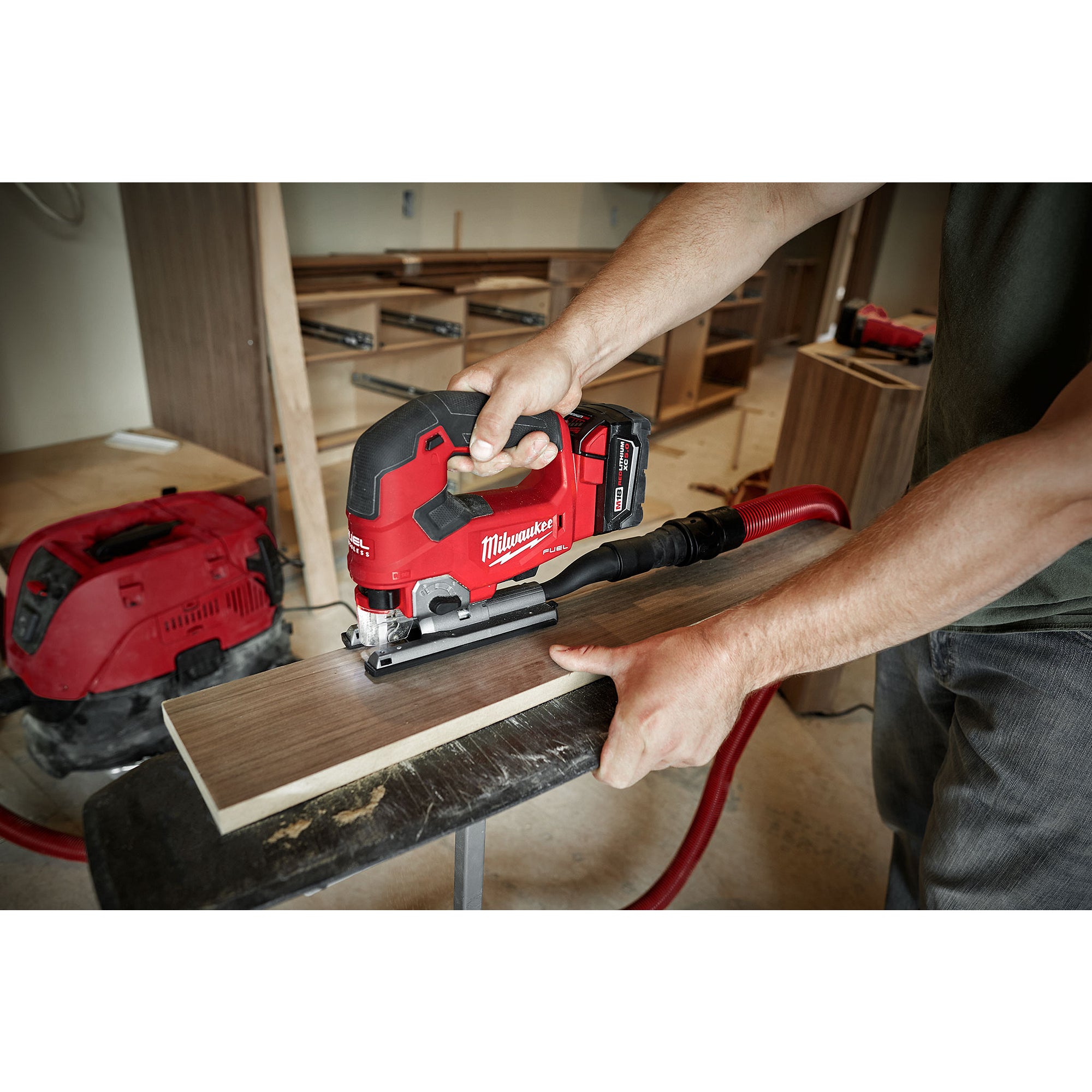

- On/Off cut line blower keeps the cut line clear of debris, and allows user to turn off blower when using dust extraction
- Part of the M18™ System, featuring over 150+ tools

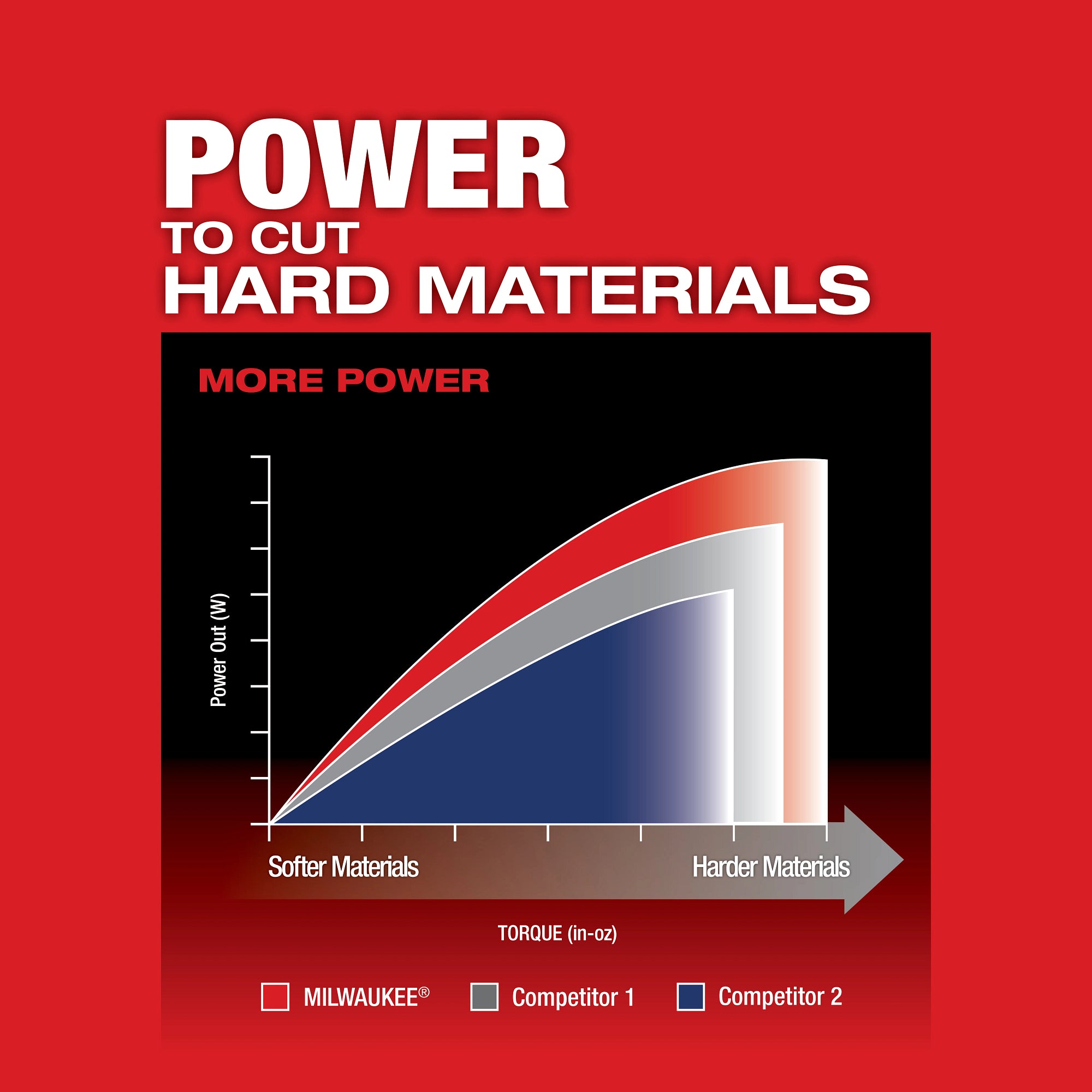

- POWERSTATE™ Brushless Motor: Increased SPM and the power to cut hard materials, including hardwoods and metals
- Provides optimized performance and overload protection using total system communication between tool, battery and charger
- REDLITHIUM™ battery technology: superior pack construction, electronics and performance deliver more work per charge and more work over pack life than any battery on the market
- Toolless shoe bevel with positive stops allows for quick and accurate shoe adjustment with detents at 0°, 15°, 30° and 45°
- Variable speed ranges between 0 and 3500 strokes per minute, providing precise control for clean cuts with less chipping
- REDLINK PLUS™ Intelligence: the most advanced system of cordless power tool electronics; provides optimized performance and overload protection using total system communication between tool, battery and charger

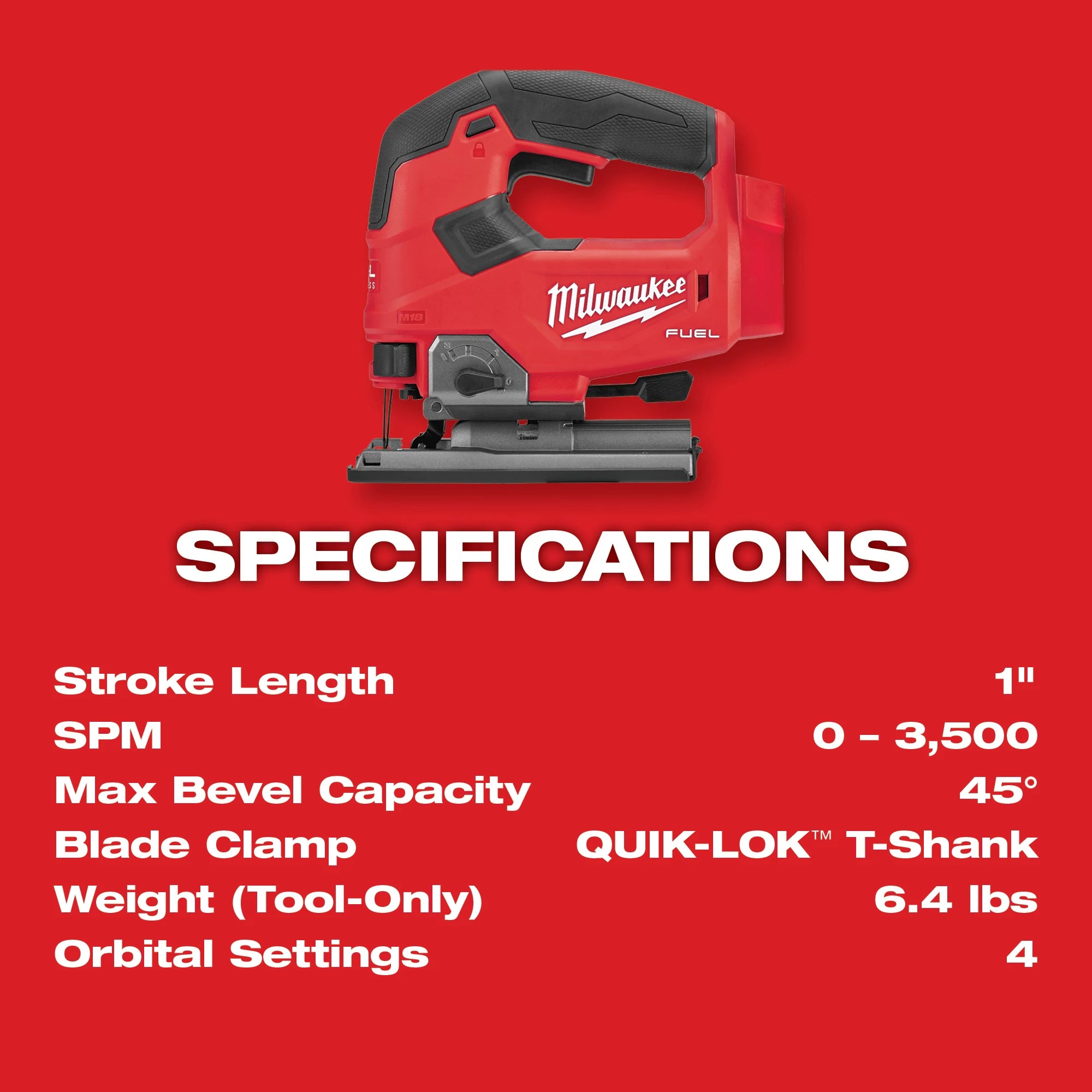

Specifications
Category: Power Tools
- Shoe Cover Included: Yes
- Blade Included: Yes
- Adjustable Shoe: Yes
- Dust Blower: Yes
- Electronic Speed Control: Yes
- Integrated Work Light: Yes
- Orbital Action: Yes
- Quick Change Blade System: Yes
- Scrolling Action: Yes
- Tool-Less Bevel Adjustment: Yes
- Tool-Less Blade Changing: Yes
- UL Listed: Yes
- Variable Speed *: Yes
- FUEL™ *: Yes
- Brushless Motor *: Yes
- Speed Control: Variable
- Cutting Action: Orbital
- Bevel Adjustment Wrench Included: Not Required
- Product Storage Included: No Case Included
- Blade Wrench Included: No
- Batteries Included: No
- External Motor Brush Access: No
- Includes Charger: No
- CSA Certified: No
- ETL Listed: No
- Integrated Blade Storage: No
- Lock-on Switch *: No
- Laser Guide: No
- ONE-KEY™ Enabled *: No
- Condition: New
- Shoe Material: Metal
- Material *: Metal
- Battery System *: M18™
- Battery Composition: Lithium-Ion (Li-ion)
- Housing Material: Glass Filled Nylon
- Power Tool Branding *: FUEL™
- Badge Branding *: FUEL™
- Powered Tool Power Source: Electric - Cordless
- Handle Type *: D-Handle
- Product Type *: Cordless Jig Saw
- Corded Cordless: Cordless
- Motor Type *: Brushless
- Color Finish: Black; Red
- Handle Grip Design: Barrel Grip
- Batteries Included / Bare Tool: Bare Tool
- Shoe Design: Adjustable
- Weight Battery Installed (lb): 6.49
- Maximum Wood Cutting Capacity (in): 5.5
- Battery Capacity Home Depot: 5 Ah
- Battery Amp Hour (Ah) *: 5
- Bevel Capacity (°): 45
- Weight Excluding Battery (lb) *: 4.85
- Number of Orbital Action Settings: 4
- Battery Pack Replacement: 35GJ99
- Maximum Strokes per Minute- No Load: 3500
- Battery Voltage *: 18
- Battery Charger Input Voltage *: 120
- Number of Blades Included: 1
- Number of Batteries Required: 1
- Stroke Length (in): 1
- Maximum Metal Cutting Capacity (in): 0.38
- Blade Diameter (in) *: 0
