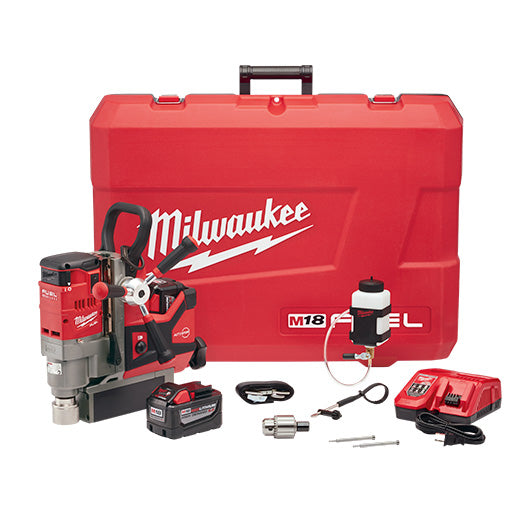

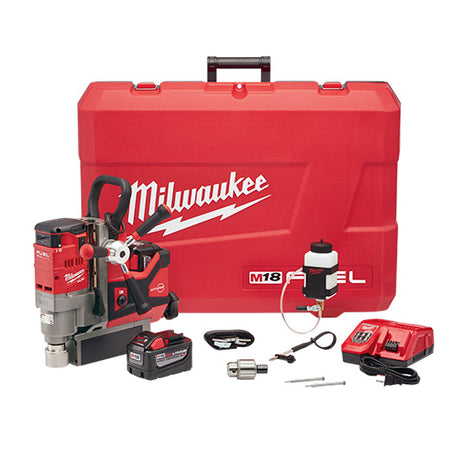

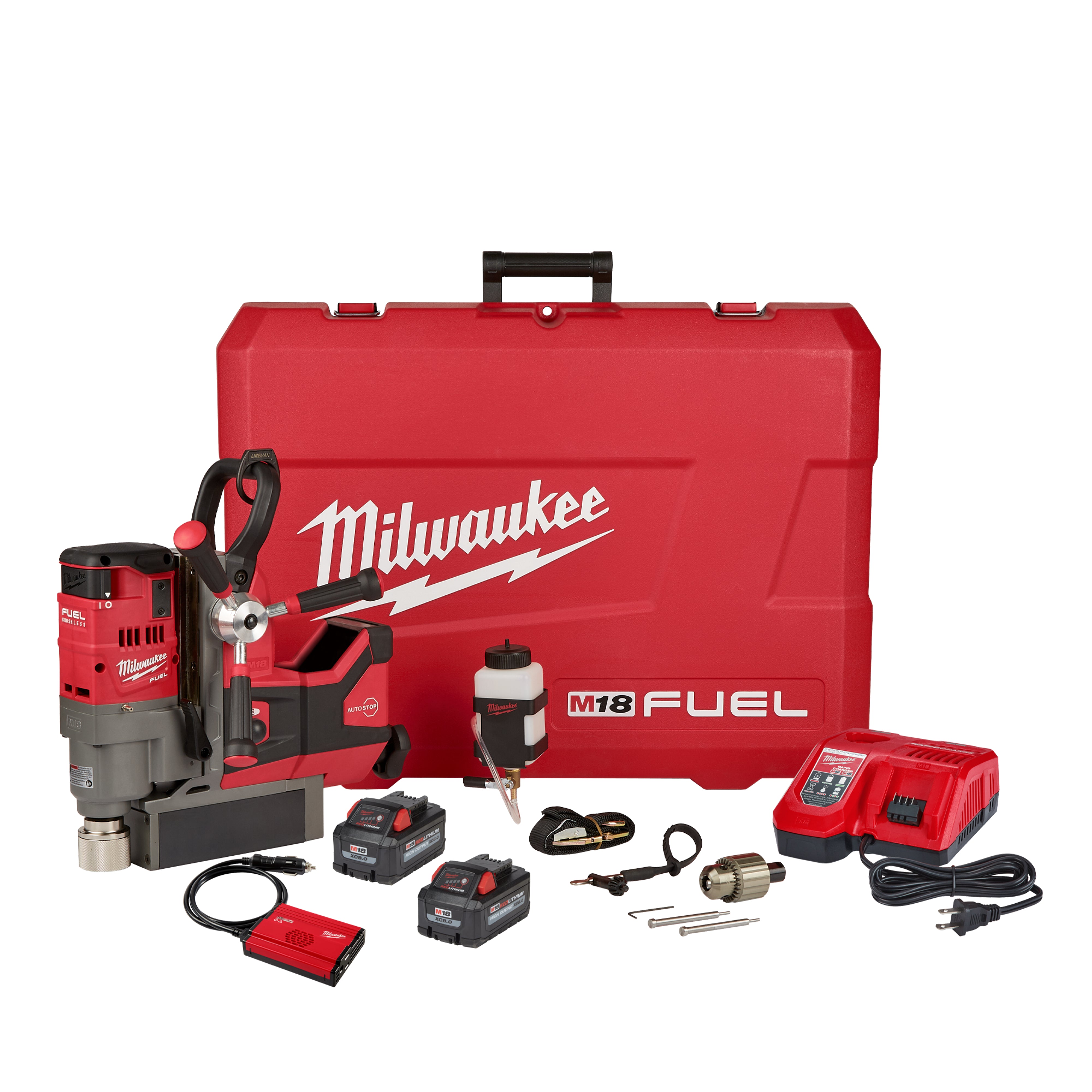

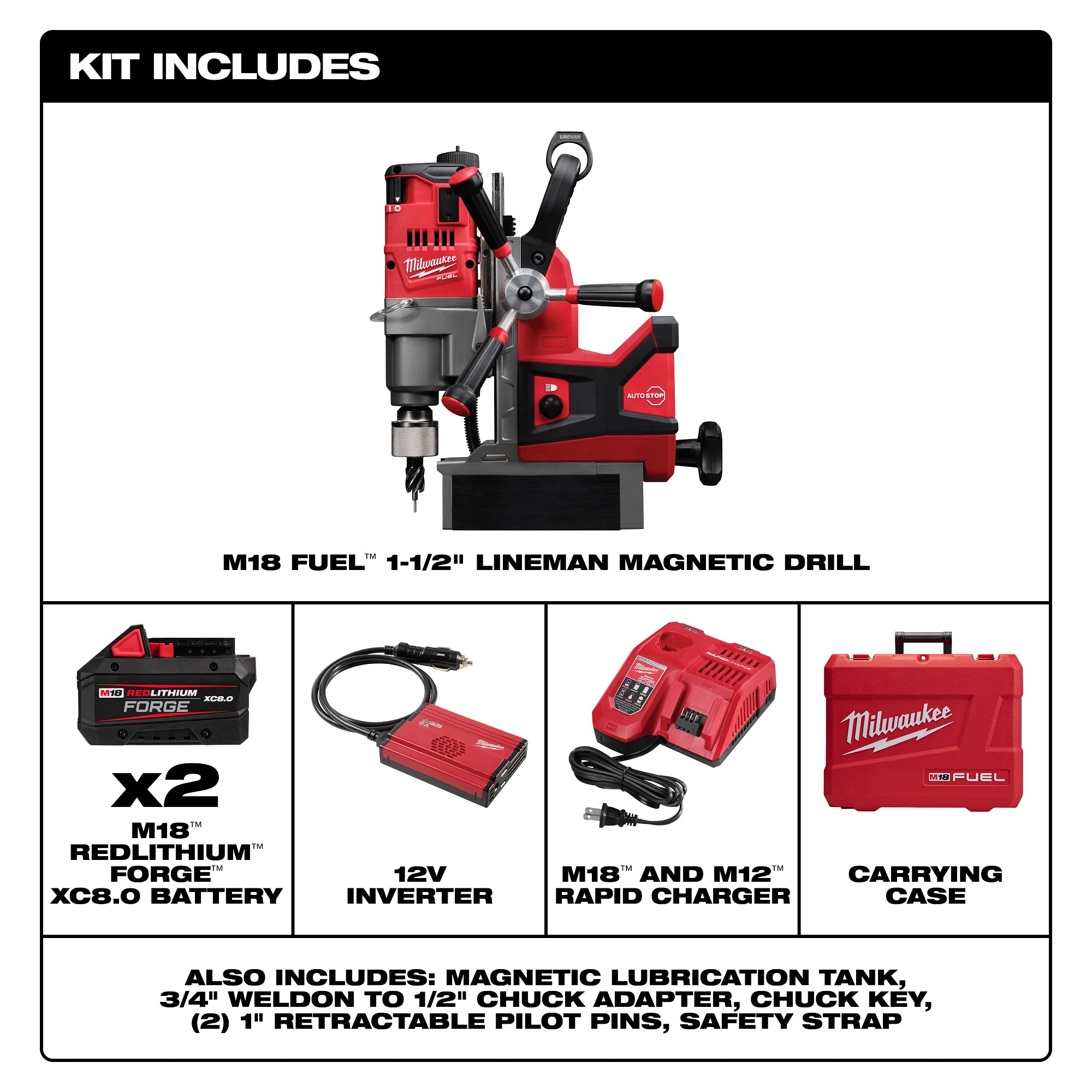

Milwaukee 2788-22HD, M18 FUEL™ 1-1/2" Lineman Magnetic Drill High Demand™ Kit
Got questions?
Feel free to get in touch

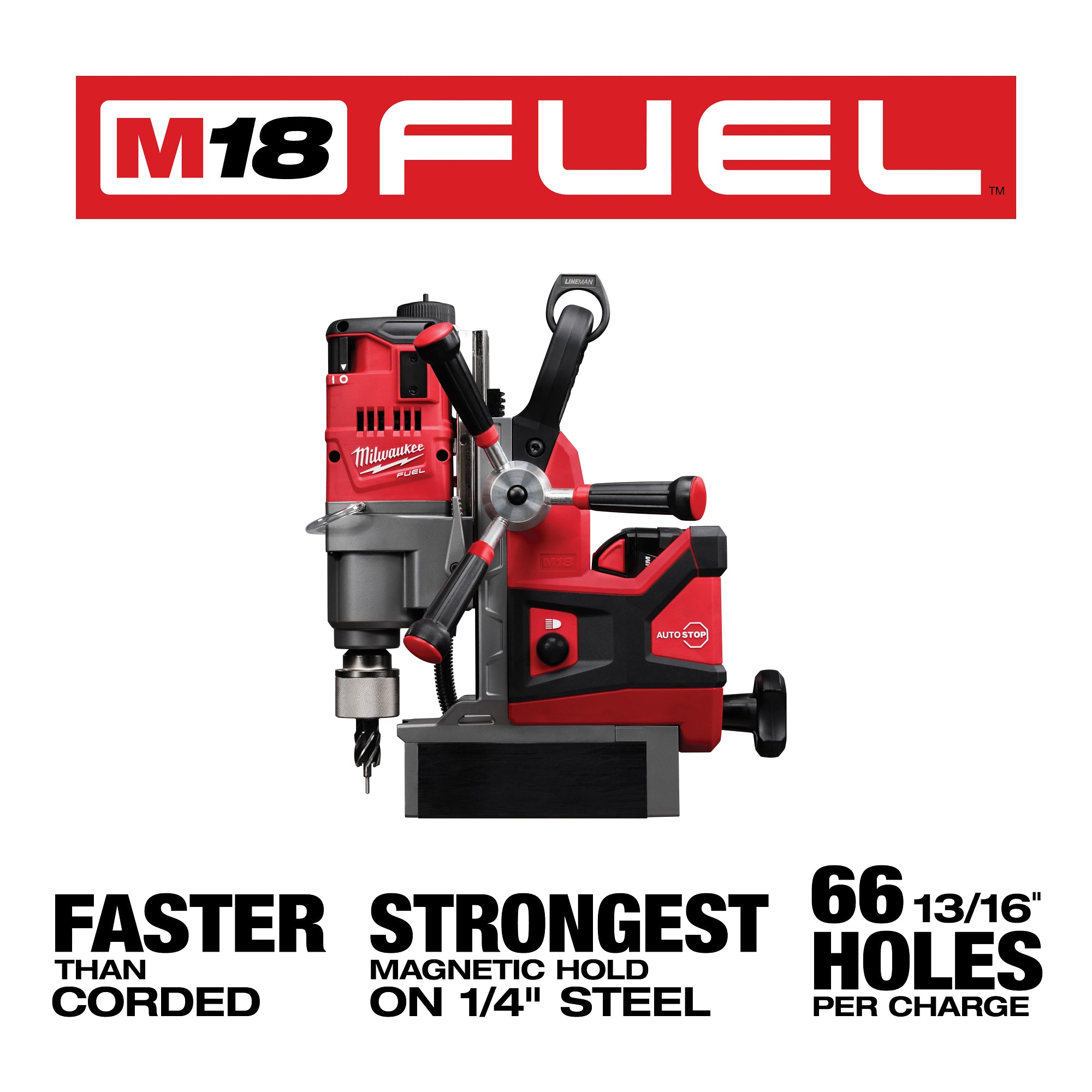

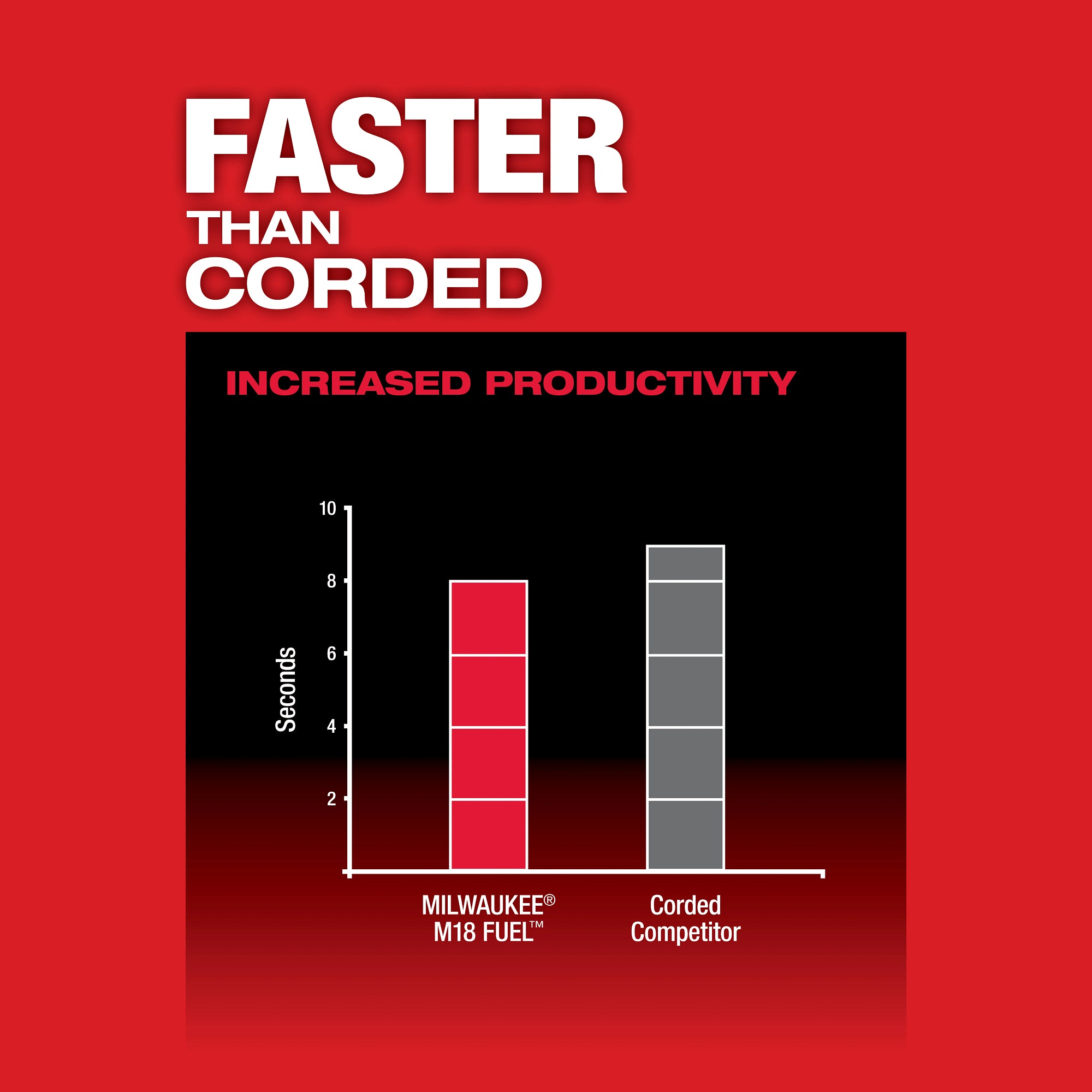

The MILWAUKEE® M18 FUEL™ 1-1/2” Magnetic Drill drills faster than the number one corded competitor, delivers the strongest magnetic hold on 1/4” steel providing a safer drilling environment in this material, and drills up to (76) 13/16” holes per charge. The M18 FUEL™ 1-1/2” Magnetic Drill delivers safer drilling on ¼” steel by providing the industry’s strongest holding force on this material. By utilizing permanent magnets, the magnetic base operates without electricity; ensuring that the magnet does not deactivate if the battery is drained. Equipped with Auto-Stop lift-off detection, power to the motor is automatically cut if excess rotational motion is detected while drilling. Powered by a Milwaukee® POWERSTATE™ Brushless Motor, both drills are faster than their corded counterparts and deliver the same 1-1/2” annular cutter capacity. REDLINK PLUS™ Intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. The M18™ REDLITHIUM™ FORGE™ XC8.0 Battery Packs deliver HIGH OUTPUT™ 12.0 power in a smaller size, high-speed cooling for less downtime in high-demand applications, 35-minute supercharge to 80%, and the longest life vs REDLITHIUM™ batteries. The M18 FUEL™ 1-1/2” Magnetic Drill delivers power and portability for tough drilling applications.

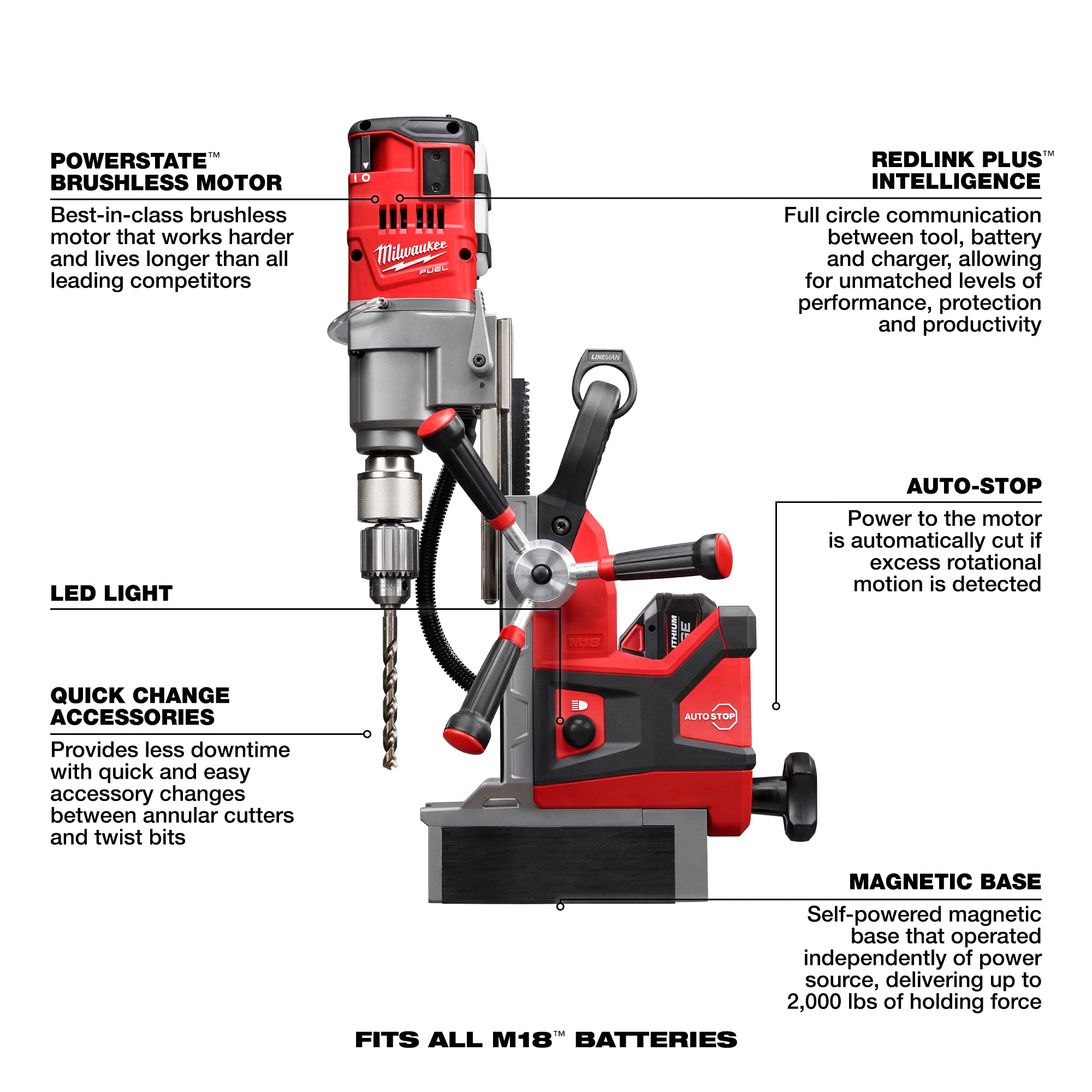

Features & Benefits
- Auto-Stop Lift Off Detection
- POWERSTATE™ Brushless Motor delivers longer life and higher performance
- REDLINK PLUS intelligence: provides optimized performance and overload protection using total system communication between tool, battery and charger
- 1-1/2" Annular Cutter Capacity1/2" Twist Bit Capacity
- 2 Speed Gear Box: 400/690 RPM
- Stroke Length: 5-3/4"
- Motor Head Adjustment: 5-1/8"

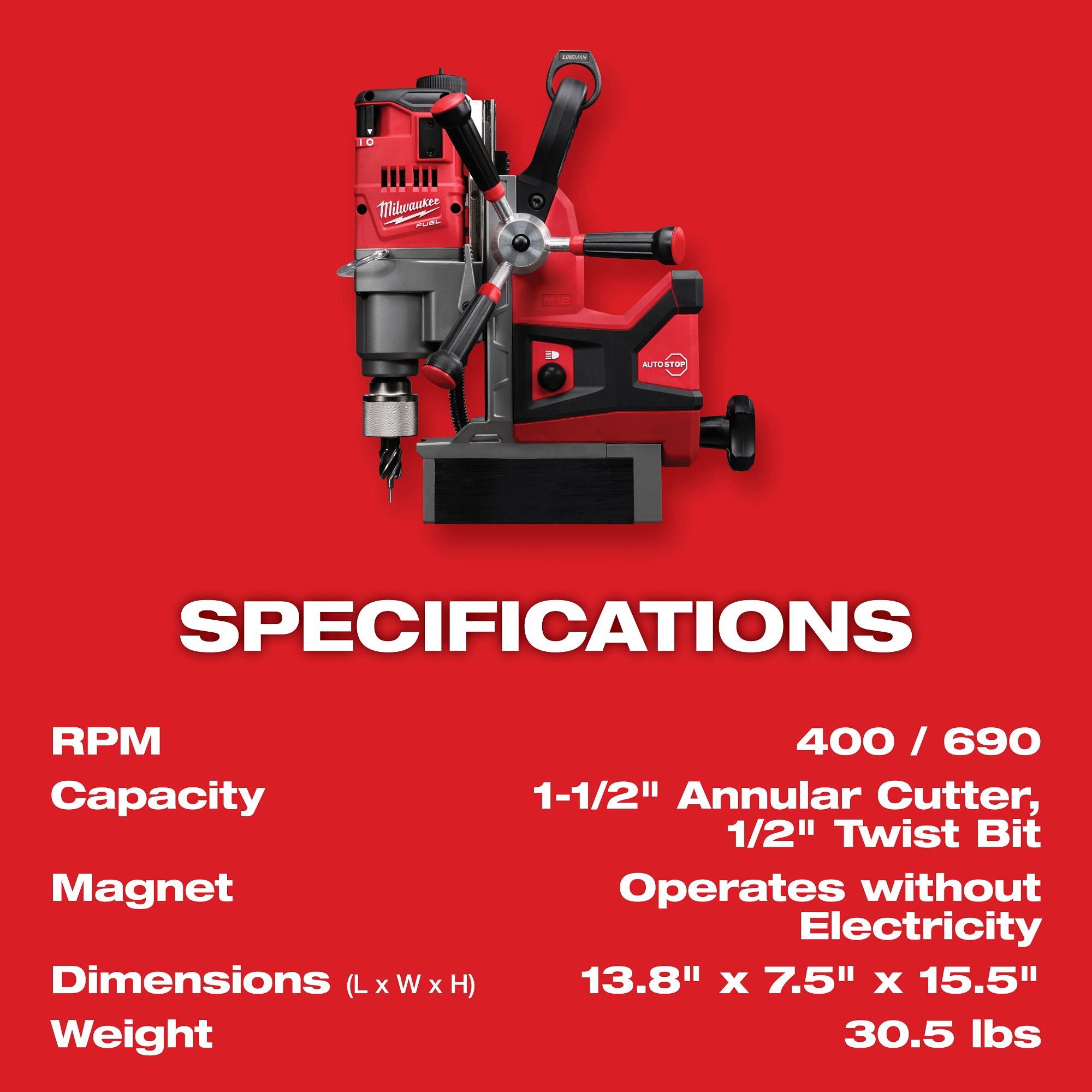

Specifications
Category: Power Tools
- Steel Capacity (in): 1.5
- Drill from Center to Base: 1-1/2 in
- Capacity Steel: 1-1/2 in
- Battery Voltage *: 18
- Speeds: 2
- Hole Depth (in): 2
- Magnetic Holding Power (lbs): 2000
- Speed Range: 400 / 690 rpm
- Battery Pack Replacement: 48-11-1881
- Battery Pack Compatibility: 48-11-1881
- Drill Travel (in): 5.75
- Speed Range High (rpm): 700
- Drill Point Pressure (psi): 750
- Battery Amp Hour (Ah) *: 9
- Battery Capacity Home Depot: 9Ah
- Chuck Type *: All Metal
- Batteries Included / Bare Tool: Battery Included
- Color Finish: Black; Red
- Corded Cordless: Cordless
- Material *: Forged Steel
- Power Tool Branding *: FUEL™
- Badge Branding *: FUEL™
- Battery System *: M18™
- Product Type *: Magnetic Drill
- Condition: New
- ONE-KEY™ Enabled *: No
- Hammer Function *: No
- Reverse Function *: No
- 360 degrees Swivel: No
- Magnet Type: Permanent
- Motor Type *: POWERSTATE™ Brushless
- UL Listed: Yes
- Brushless Motor *: Yes
- FUEL™ *: Yes
- CSA Certified: Yes
- ETL Listed: Yes
- Includes Charger: Yes
- Magnetic Base: Yes
