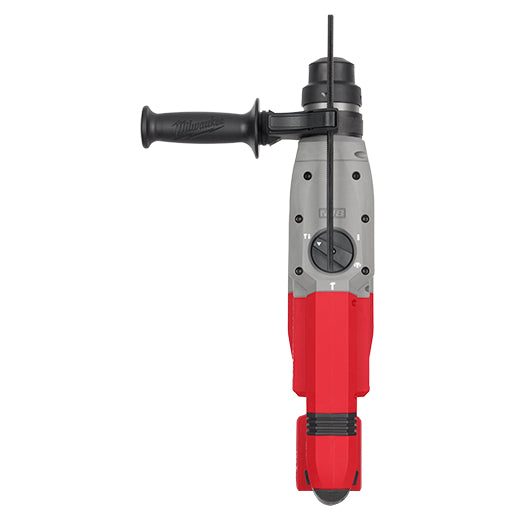

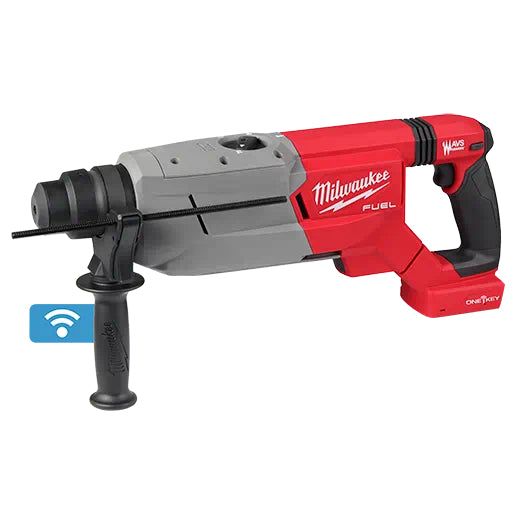

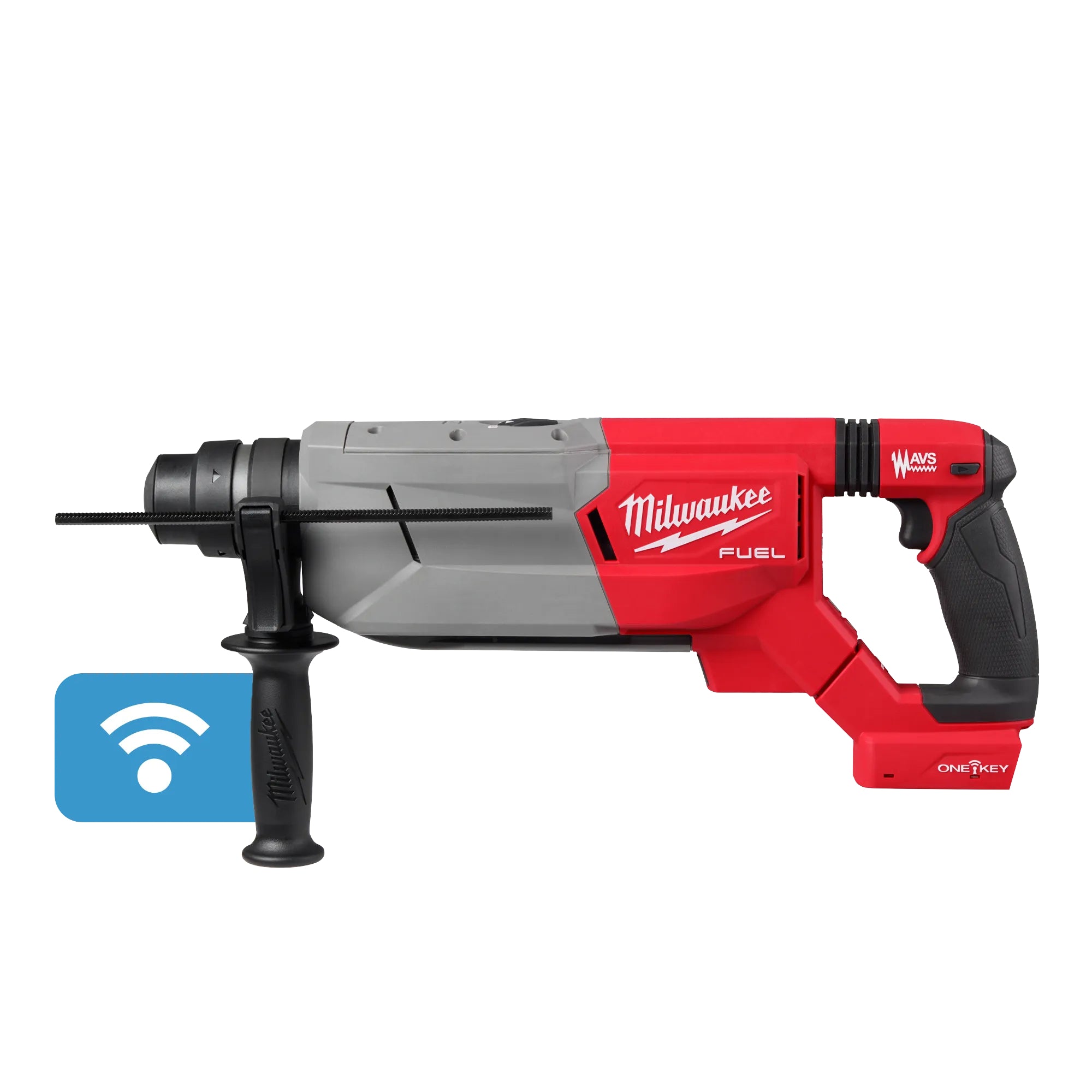

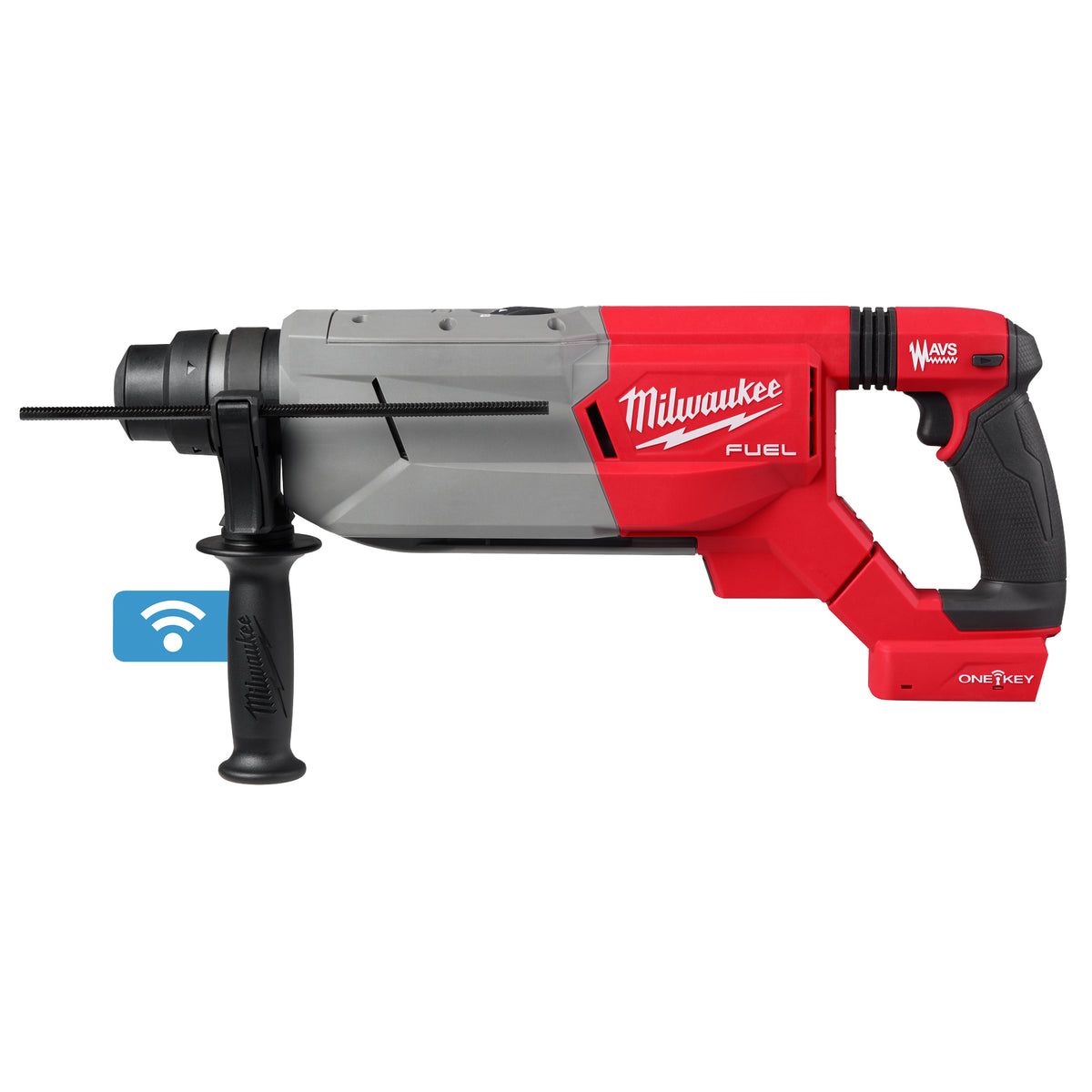

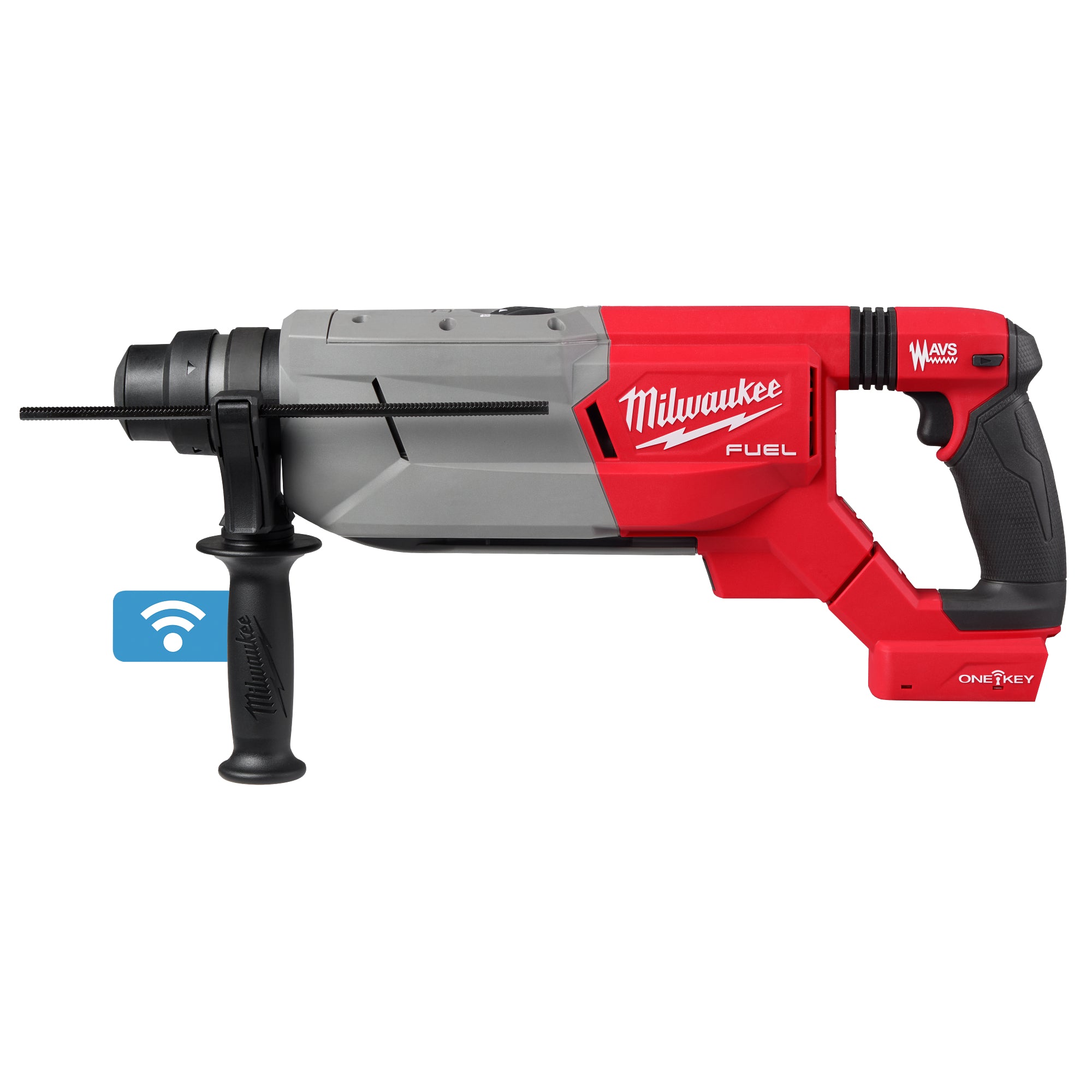

Milwaukee 2916-20, M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™
Got questions?
Feel free to get in touch

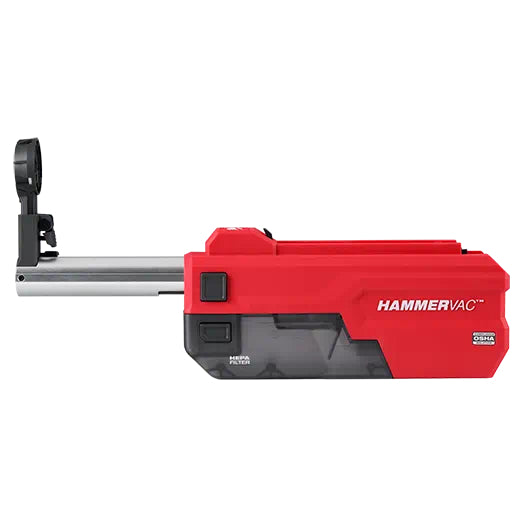

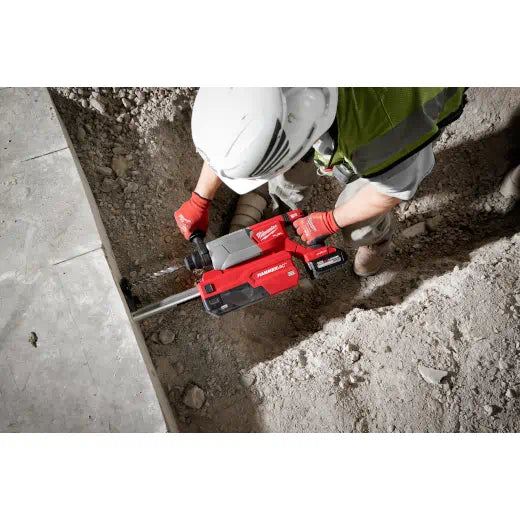

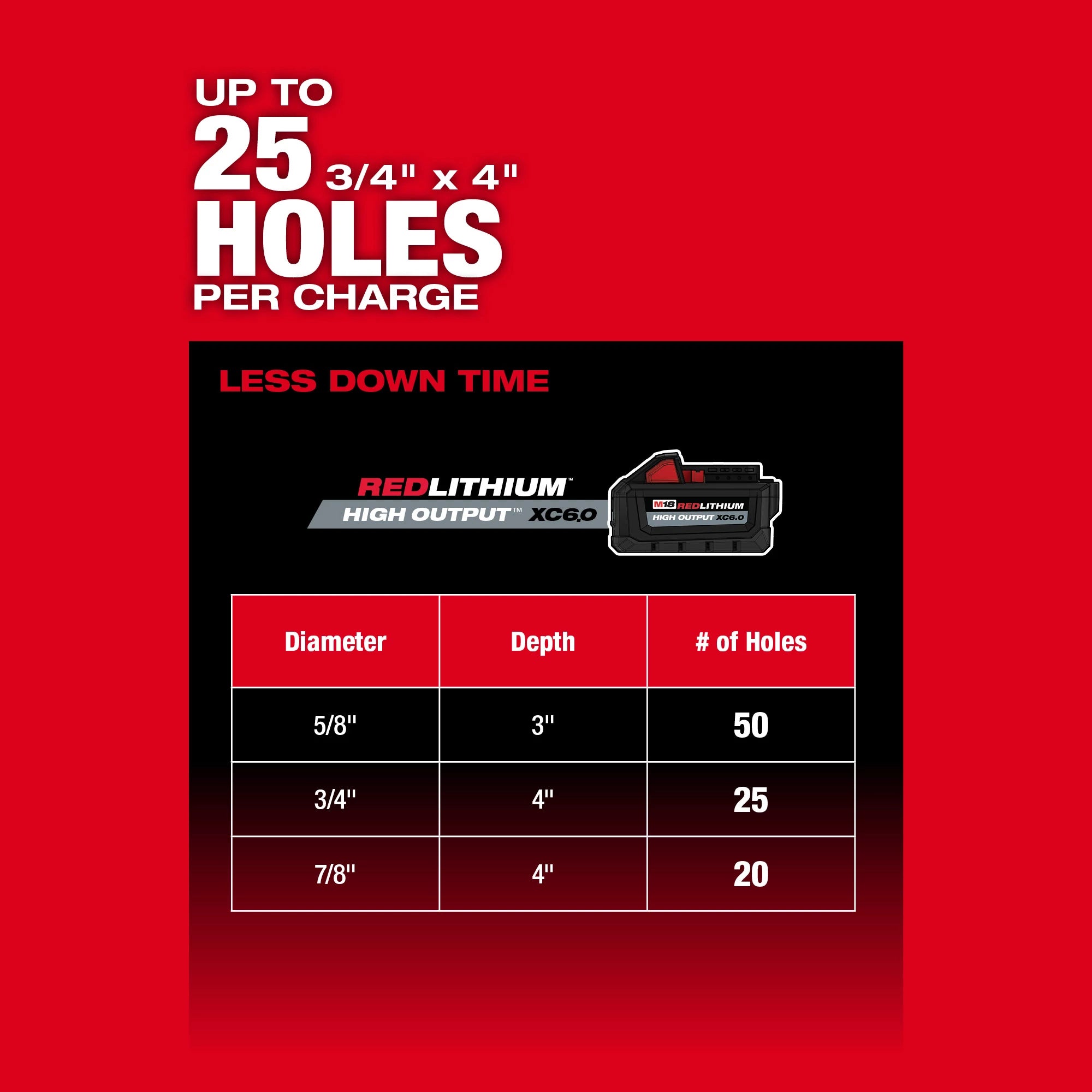

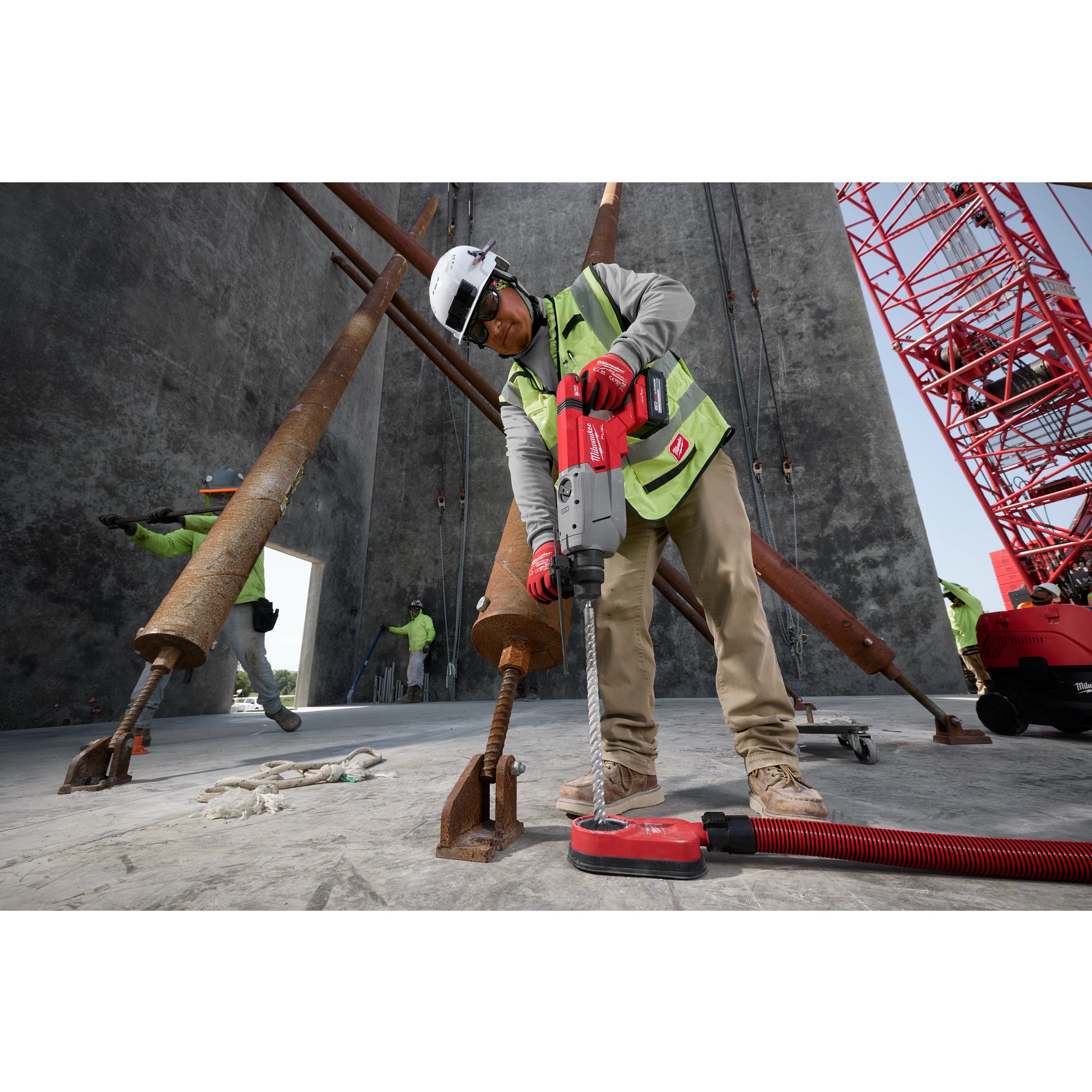

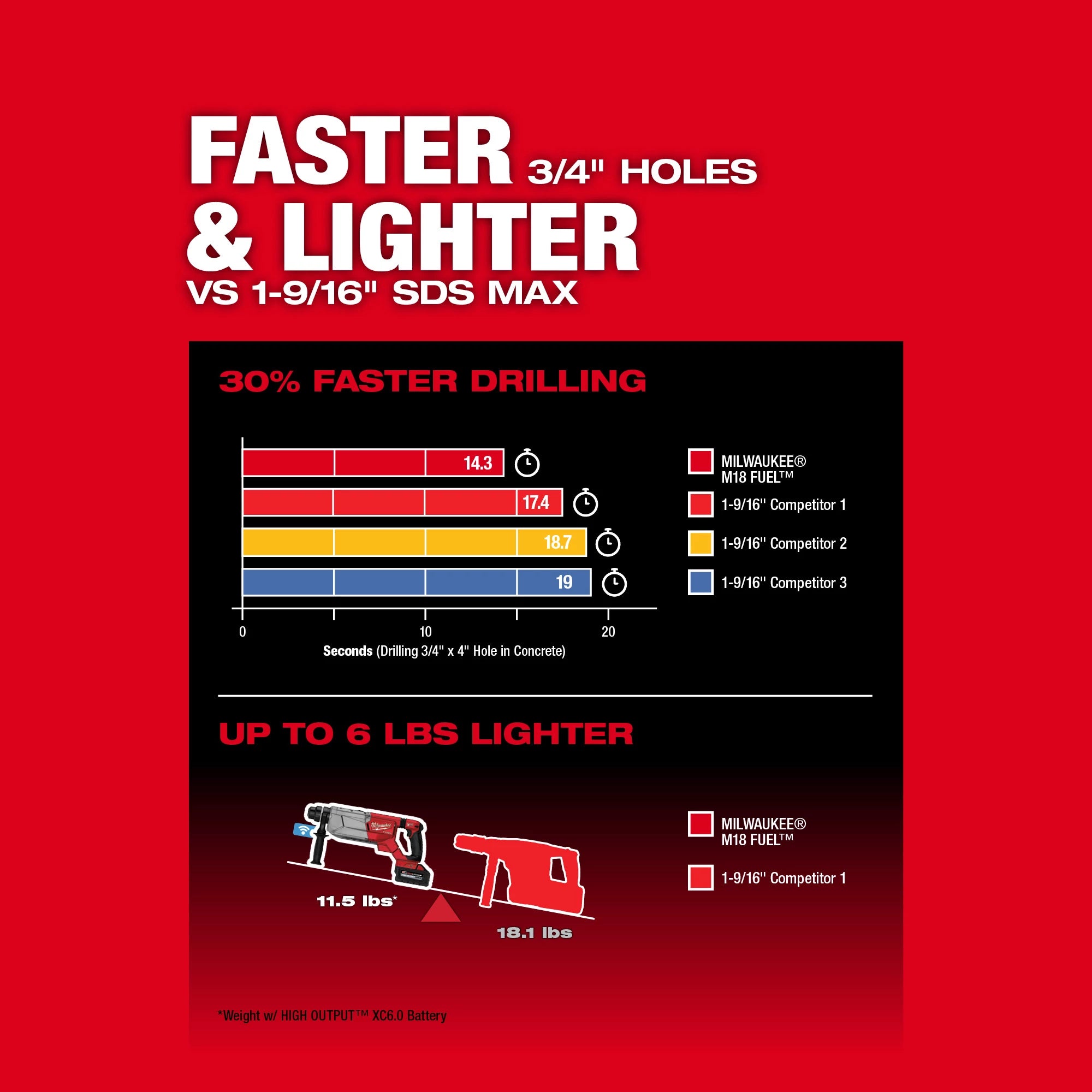

MILWAUKEE® M18 FUEL™ 1-1/4” SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ delivers on the drill speeds normally associated with SDS Max rotary hammers. The hammer drills Faster ¾” Holes and is Lighter Versus SDS Max rotary hammers, includes AUTOSTOP™ Control for Enhanced Safety, and can drill up to (25) ¾” x 4” Holes per Charge when paired with MILWAUKEE® M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery. The in-line D-Handle design allows access in tight spaces and provides superior balance and ergonomics for downward drilling. POWERSTATE™ Brushless Motor delivers 3.65 ft-lbs of impact energy, 810 RPM, and 4,650 BPM, providing the speed and power for the most demanding applications. This hammer provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control, preventing over-rotation if the tool binds up while drilling in concrete with rebar or hard aggregate. This tool is compatible with MILWAUKEE® M18 FUEL™ HAMMERVAC™ 1-1/4” Dedicated Dust Extractor providing on-board OSHA Table One compliance. The AVS Anti-Vibration System reduces vibration for maximum comfort. The cordless rotary hammer is compatible with ONE-KEY™ to track the tool’s location and manage inventory. The REDLINK PLUS™ intelligence tool technology ensures maximum rotary hammer performance and protects it from overload, overheating, and over-discharge. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery delivers 50% more power while running 50% cooler than the M18™ REDLITHIUM™ XC batteries (not included).

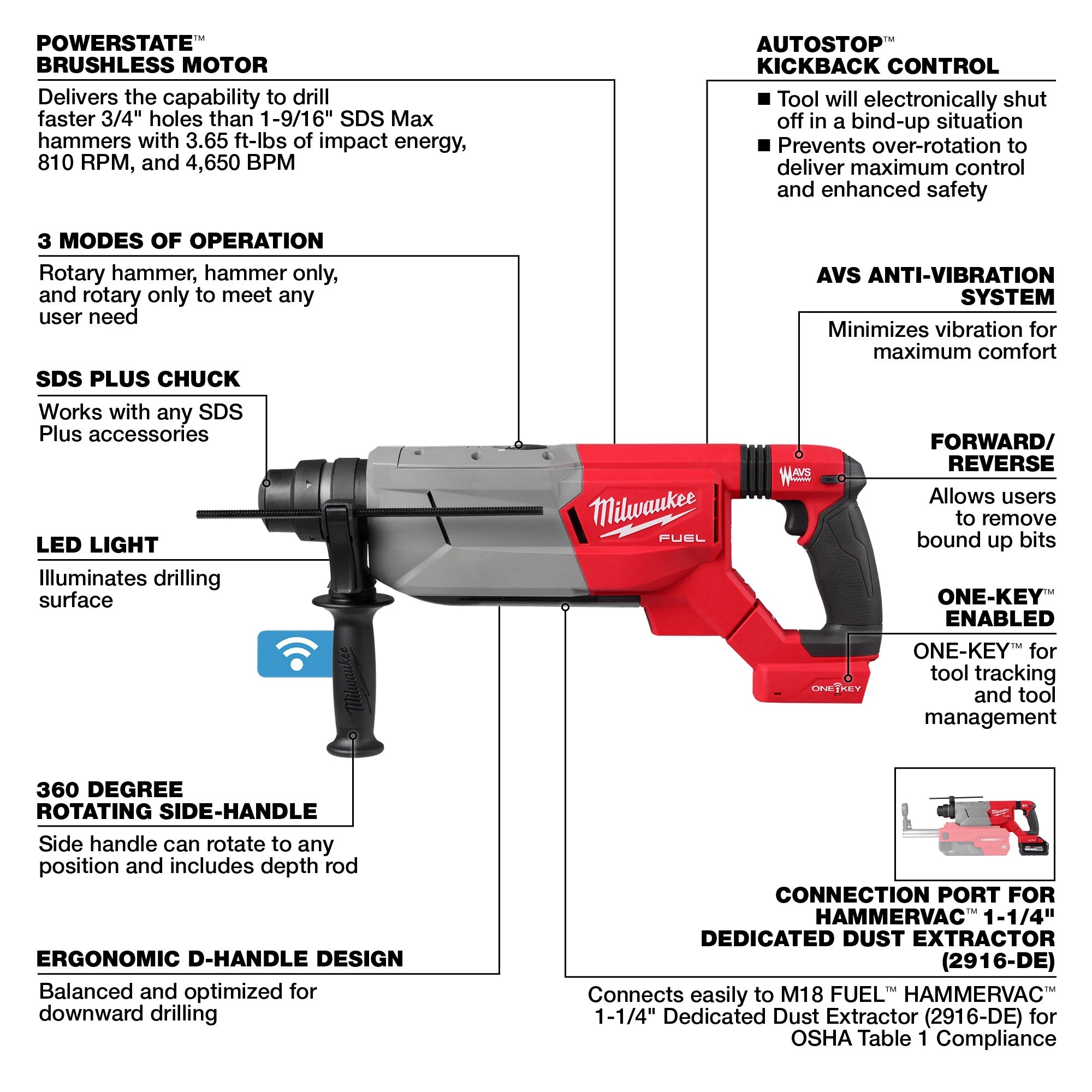

Features & Benefits
- POWERSTATE™ Brushless Motor delivers maximum power and long motor life
- REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging.
- The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs
- 3.65 ft-lbs Impact Energy
- ONE-KEY™ technology allows for tracking, tool security, and inventory management
- AVS Anti-Vibration System: Minimizes vibration for maximum comfort
- 3 Mode: Rotary Hammer, Hammer Only, Rotary Only
- 810 RPM
- 4,650 BPM

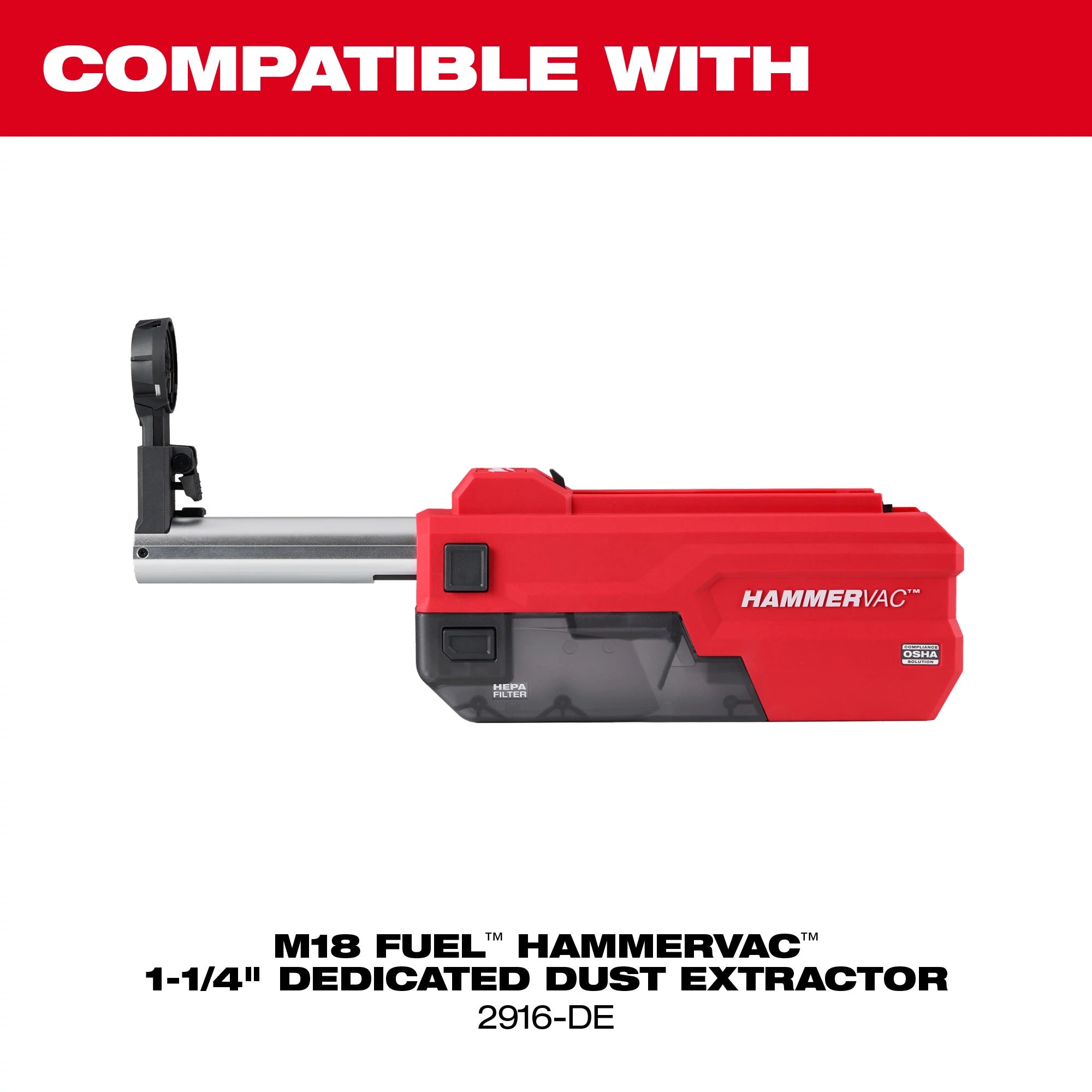

- Pairs with HAMMERVAC™ 1-1/4” Dedicated Dust Extractor (2916-DE)
- Part of the M18™ system, featuring over 200+ solutions
Specifications
Category: Power Tools
- Battery Quantity Included: 0
- Number of Batteries Included: 0

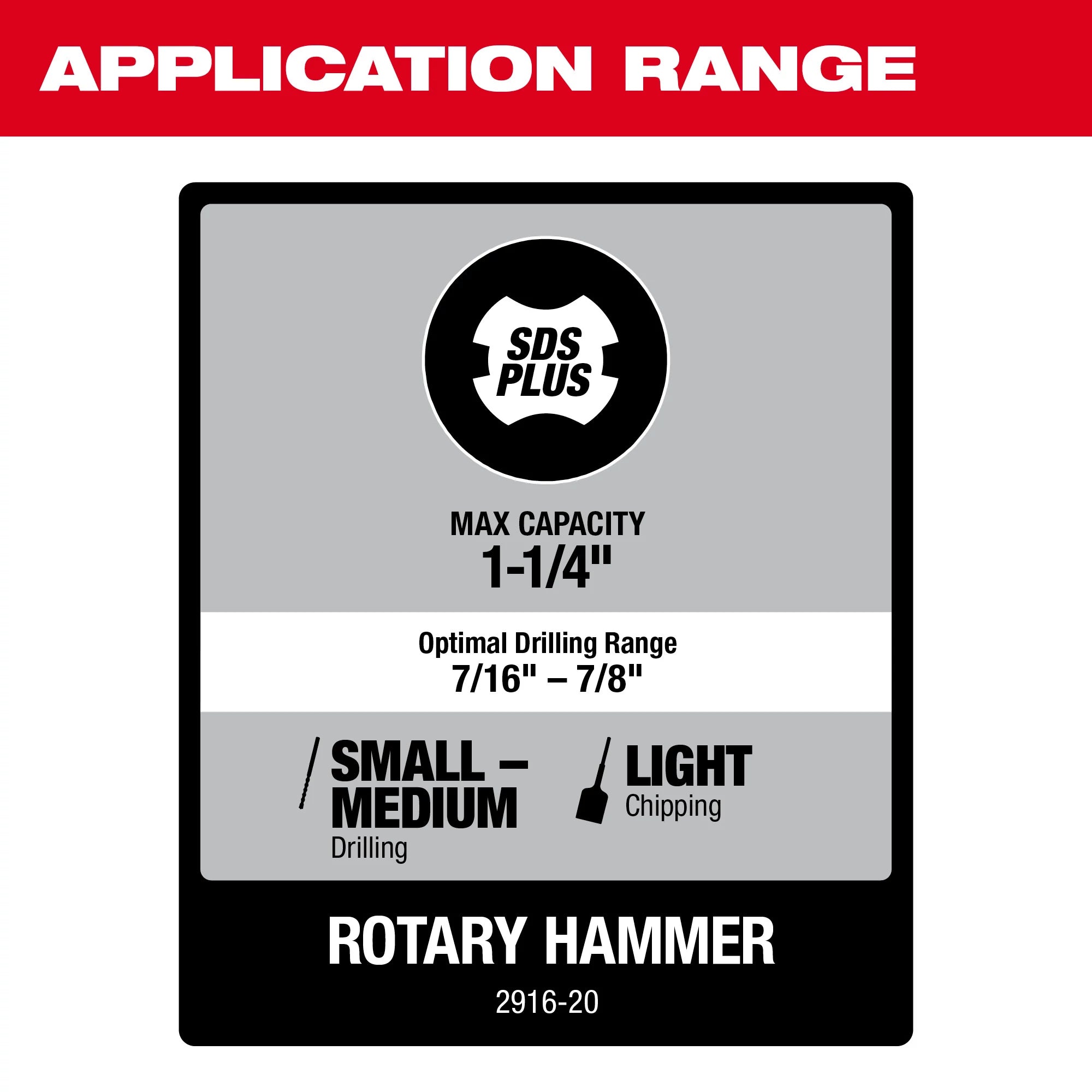

- Maximum Concrete Bit Size (in) *: 1.25
- Weight Battery Installed (lb): 11.5
- Chuck Size (in)*: 1-1/4
- Rotary Hammer Size (in) *: 1-1/4
- Battery Voltage *: 18
- Battery Charger Input Voltage *: 18
- Battery Size: 18 Volt
- Core Bit Capacity *: 3"
- Impact Energy (ft-lbs) *: 3.65
- Blows Per Minute (bpm) *: 4650
- Maximum RPM *: 810
- Max RPM: 810
- Weight Excluding Battery (lb) *: 9.2
- Depth Control: Adjustable
- ONE-KEY™ Adaptive Features: AUTOSTOP™ ; Lock; Manage; Track
- Color Finish: Black; Gray; Red
- Power Source *: Cordless
- Corded Cordless: Cordless
- Product Type *: Cordless Rotary Hammer
- Handle Type *: D-Handle
- Powered Tool Power Source: Electric - Cordless
- Power Tool Branding *: FUEL™
- Badge Branding *: FUEL™
- Battery Type: Lithium Ion
- Battery Composition: Lithium-Ion (Li-ion)
- Battery System *: M18™
- Material *: Metal
- Solid Bit Capacity: N/A
- Condition: New

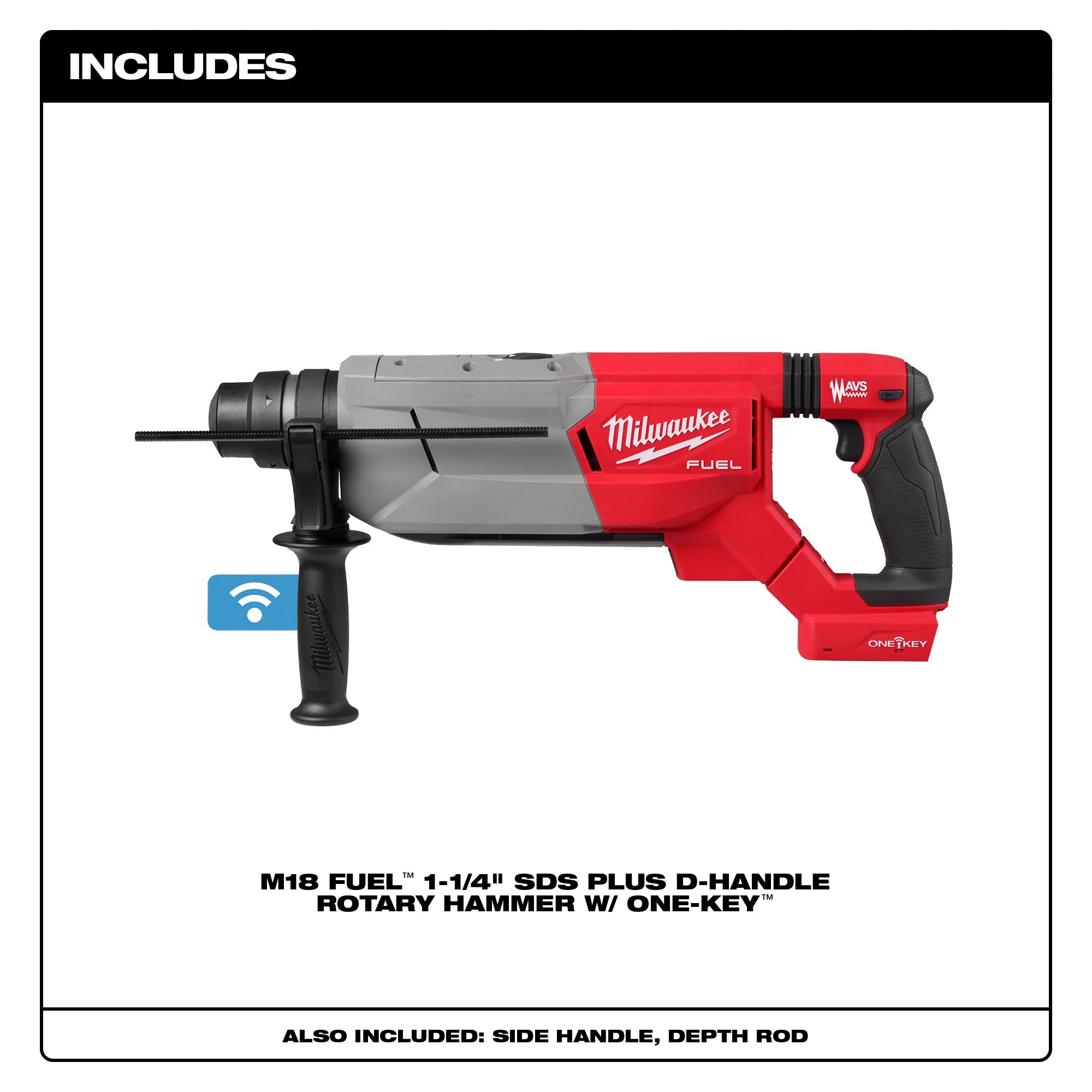

- Case Included: No
- CSA Certified: No
- ETL Listed: No
- Includes Charger: No
- Lock-on Switch *: No
- Dust Extractor Included *: No
- VACLINK™ Wireless Dust Control *: No
- Product Storage Included: No Case Included
- Chuck Design: Not Applicable
- Housing Material: Plastic
- Motor Type *: POWERSTATE™ Brushless
- Drill Type: Rotary Hammer Drilll
- Type of Modes *: Rotary Hammer, Drill Only, Hammer Only, Chisel Rotation
- Handle Material: Rubber
- Chuck Type *: SDS Plus
- Handle Type: Side Handle
- Switch Type *: Trigger
- Integrated Light *: Yes
- LED Charge Indicator: Yes
- Reverse Function *: Yes
- Side Handle: Yes
- Thin Wall Core Bit Capacity: Yes
- Variable Speed *: Yes
- UL Listed: Yes
- Brushless Motor *: Yes
- ONE-KEY™ Enabled *: Yes
- FUEL™ *: Yes
- Soft Grip Handle: Yes
- Chisel Rotation *: Yes
- Anti Vibration System (AVS) *: Yes
- AUTO STOP ™ *: Yes
- ONE-KEY™ Baseline (Track, Manage, Lock): Yes
