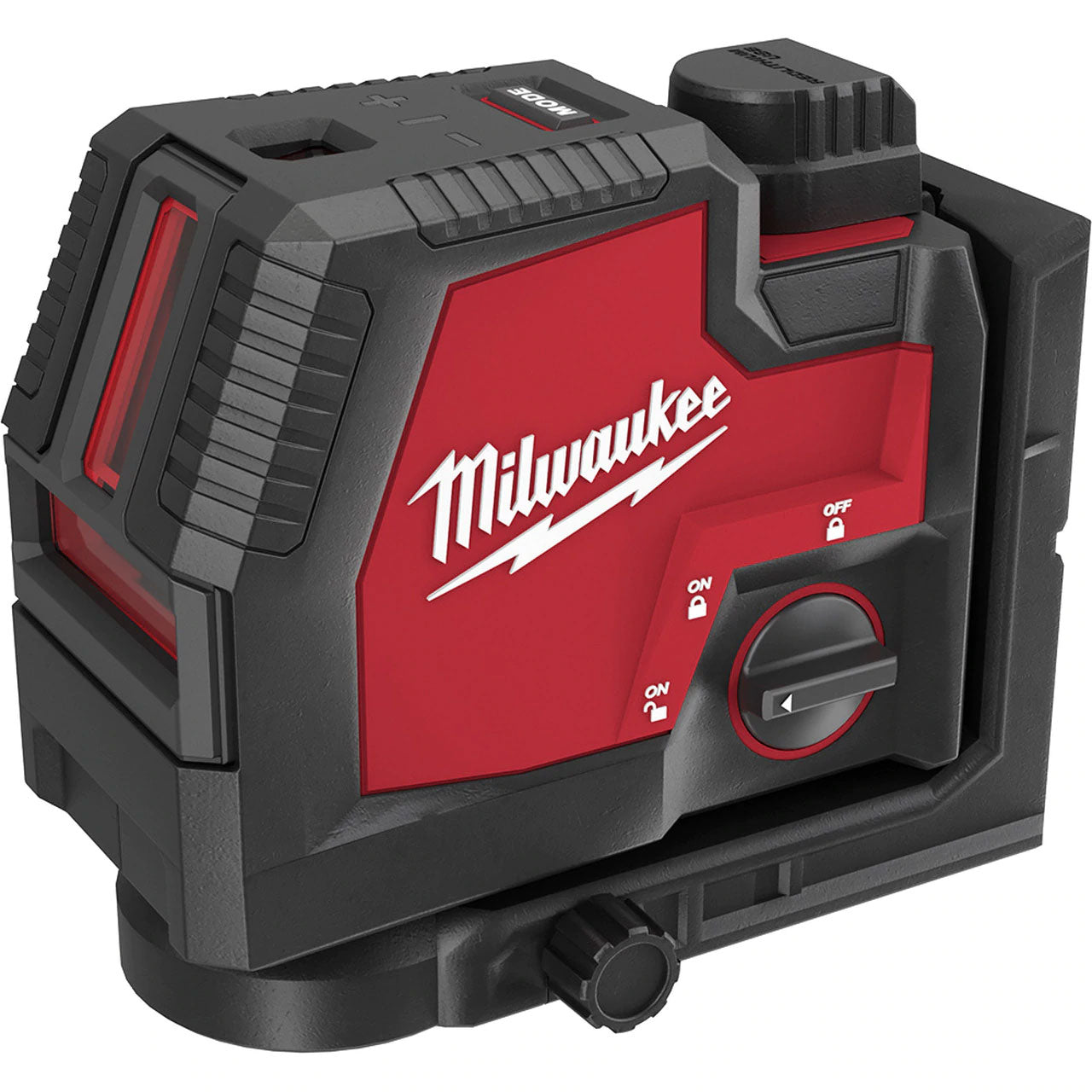

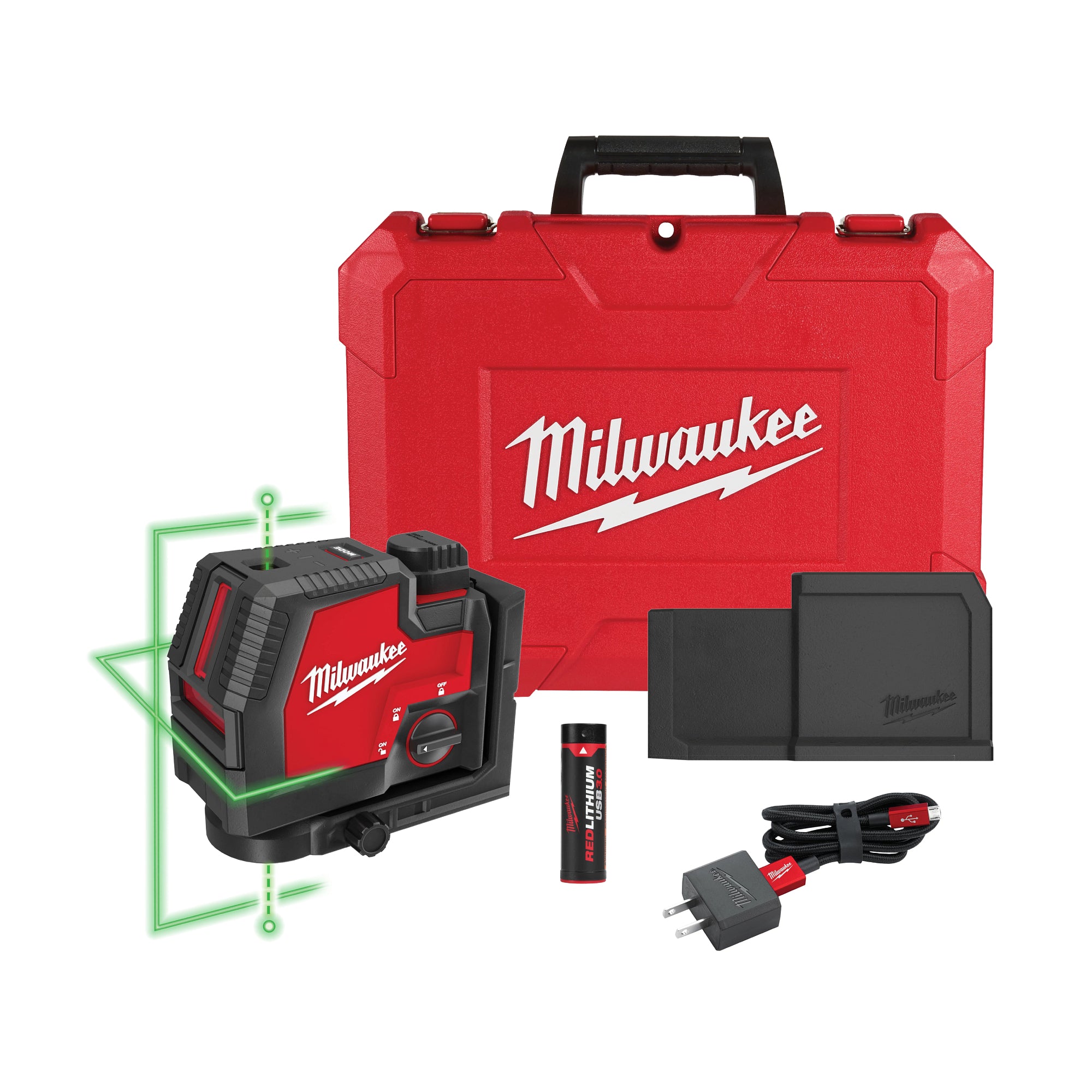

Milwaukee 3522-21, USB Rechargeable Green Cross Line & Plumb Points Laser
Got questions?
Feel free to get in touch
The MILWAUKEE® USB Rechargeable Green Cross Line and Plumb Points Laser is powered by REDLITHIUM™ USB, delivering all day runtime and uncompromised visibility. The high-intensity green beams keep the lines and plumb points visible up to 100' for fast, accurate leveling and alignment. The integrated magnetic bracket features micro control that pivots on point for faster set-up and point to point alignment at long distances. This cross line laser with plumb points features amplified rare earth magnets provide a strong hold onto metal surfaces with integrated screw and nail hang holes that make setup easy and efficient in any environment. Charge the REDLITHIUM™ USB Battery inside the laser via Micro USB or swap it out with additional REDLITHIUM™ USB Batteries for virtually no downtime. The Milwaukee USB Rechargeable Green Cross Line and Plumb Points Laser is covered by a two-year warranty.
Features & Benefits
- 8+ Hour Runtime – Removable, Rechargeable Battery
- High Intensity Green

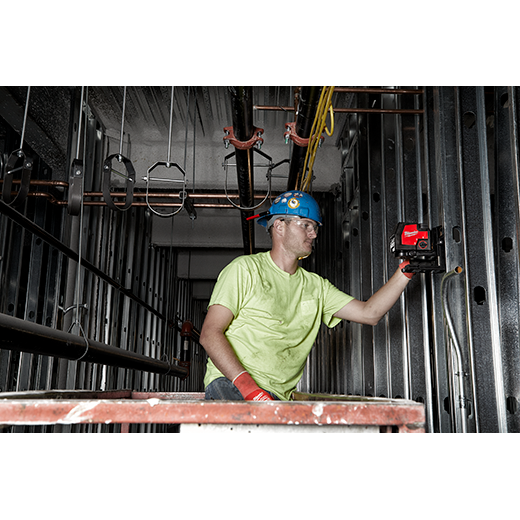

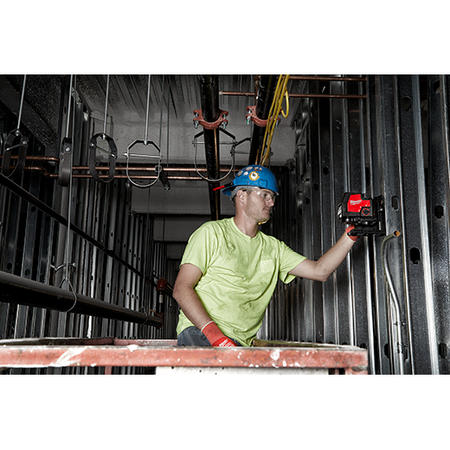

- Micro Control - Pivots on Point
- 100 ft. Working Range
- 165 ft. Range with Detector
- Accuracy: +/- 1/8" @ 33 ft
- 1/4-20 Thread Mount
- Locking Pendulum
- 2" Plumb Point Access with Riser
- Self Leveling: +/- 4° Tilt
- IP54 Rating
- 1m Impact Resistance
- Internally Charges REDLITHIUM™ USB Batteries Through Micro-USB Port
- 2 Year Tool Warranty
Specifications
Category: Power Tools
- Plumb Up: Yes
- Batteries Included: Yes
- Plumb Down: Yes
- Case Included: Yes
- Self Leveling: Yes
- Visual/Audible Indicators: Yes
- LED Display: Yes
- Mounting Method: Wall or Tripod
- Leveling Type: Self-Leveling
- Color Finish: Red
- Material *: Rare Earth; Steel; Glass Filled Nylon; Rubber
- Case Material: Plastic
- Projects Beam 360 degrees: No
- Waterproof: No
- Auto Shutoff: No
- Out-of-Level Shutoff: No
- Automatic Operation: No
- Reconditioned: No
- Includes Wireless Remote: No
- Tripod Included: No
- Rotating Speed: N/A
- Grade Capability: N/A
- Slope: N/A
- Mount Options: Magnetic, Screw/Nail Hole, 1/4-20 Tripod
- Base Type: Magnetic
- Laser Level Type: Line
- Type: Laser Level
- Laser Usage Environment: Interior
- Indoor Outdoor: Indoor
- Indoor/Outdoor Use: Indoor
- Laser Projection: Horizontal and Vertical

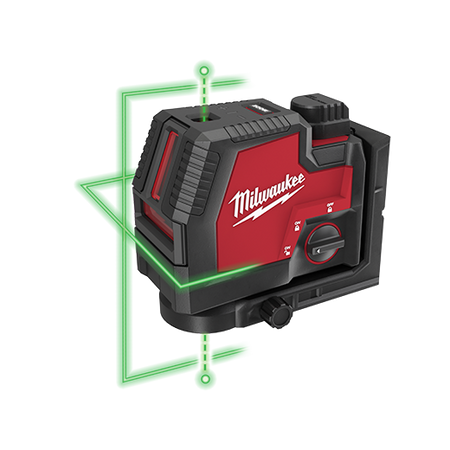

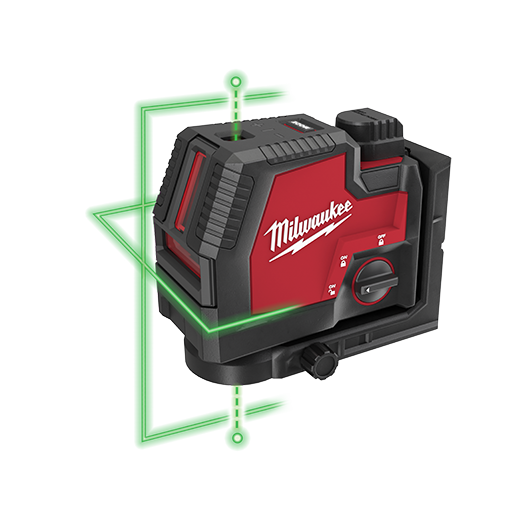

- Beam Type: Green Cross Line & Plumb Points
- Laser Beam Color: Green
- Battery Size: Battery Packs
- Laser Wavelength: 520nm +/- 10nm
- Battery Voltage *: 4
- Number of Measurements: 4
- Number of Dots: 2
- Laser Class: 2
- Number of Lines: 2
- Number of Beams: 2
- Range With Detector (ft): 165
- Maximum Beam Distance: 100'
- Interior Range: 100'
- Range Without Detector (ft): 100
- Accuracy: 1/8" @ 33'
- Tripod Mount Dimensions: 1/4" - 20
- Thread Size *: 1/4" - 20
- Number of Batteries Required: 1
- Number of 45 Degree Vials: 0
- Number of Scanning Modes: 0
- Total Number of Vials: 0
- Number of Plumb Vials: 0
- Number of Level Vials: 0
- Laser Output: <1mW
- Auto Leveling Range: +/- 4 Degrees
- Self Leveling Range Maximum: +/- 4 Degrees
- Battery Quantity and Size: (1) REDLITHIUM™ USB
