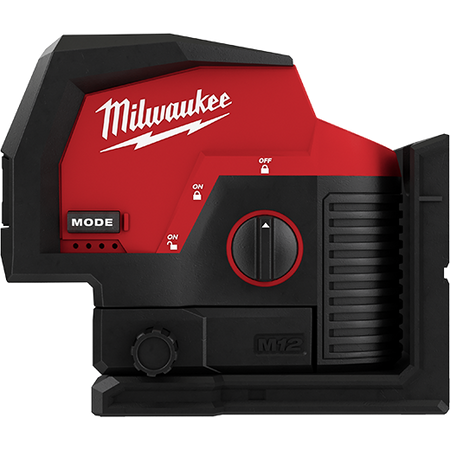

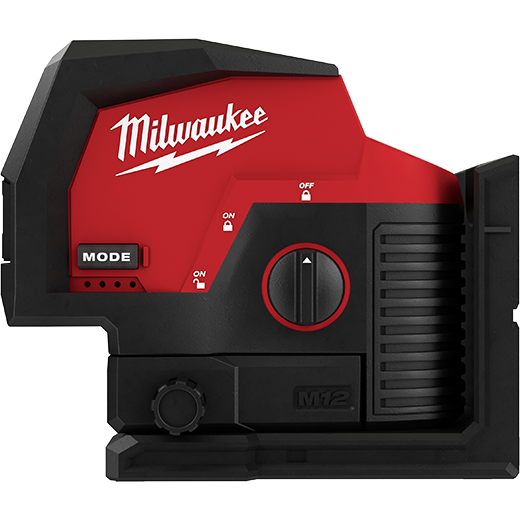

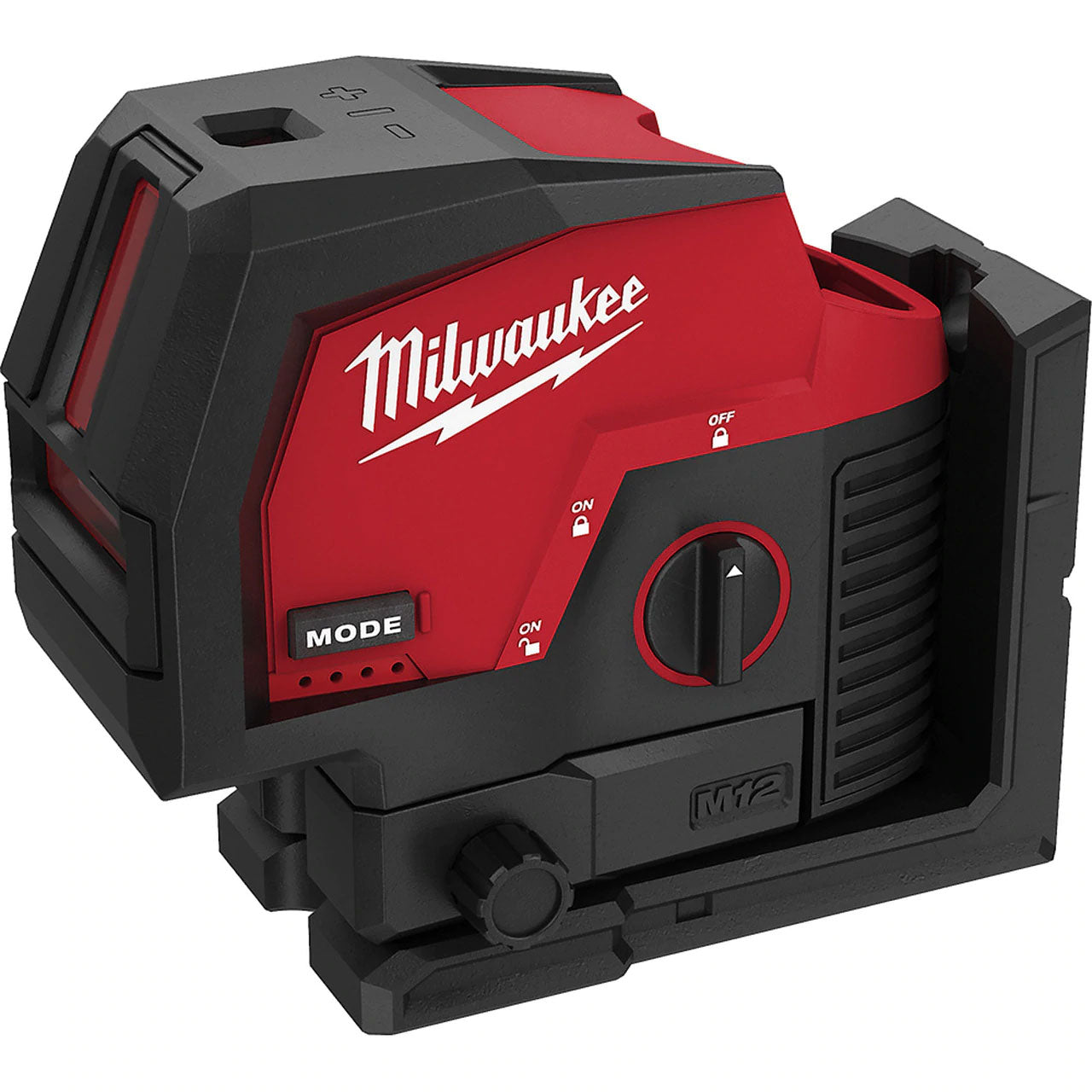

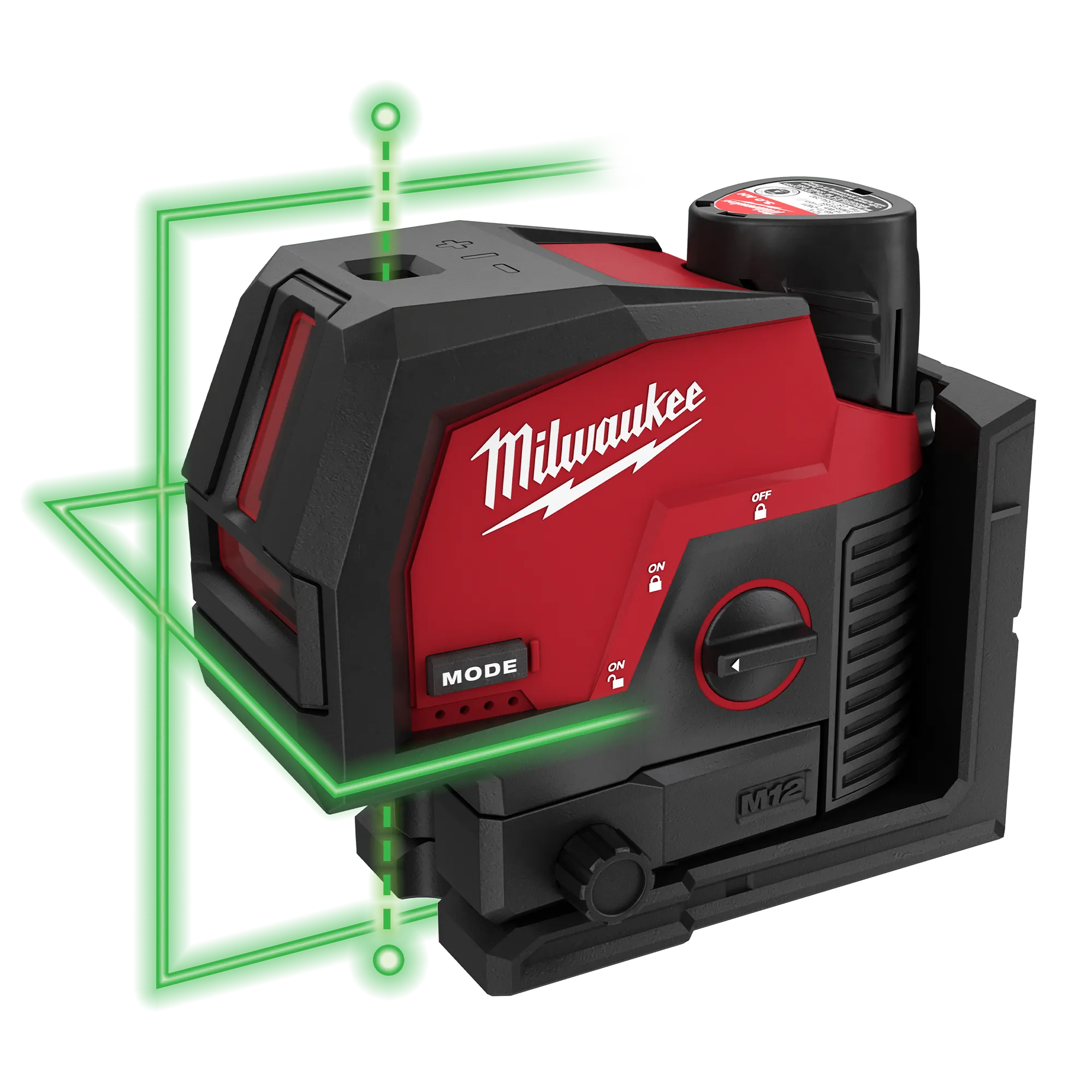

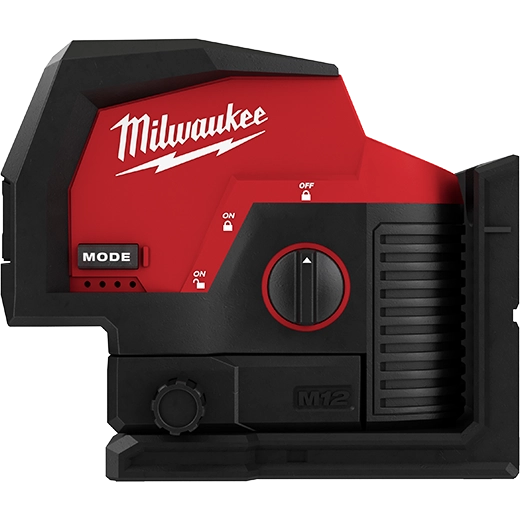

Milwaukee 3622-20, M12 Green Cross Line and Plumb Points Laser (Tool Only)
Got questions?
Feel free to get in touch

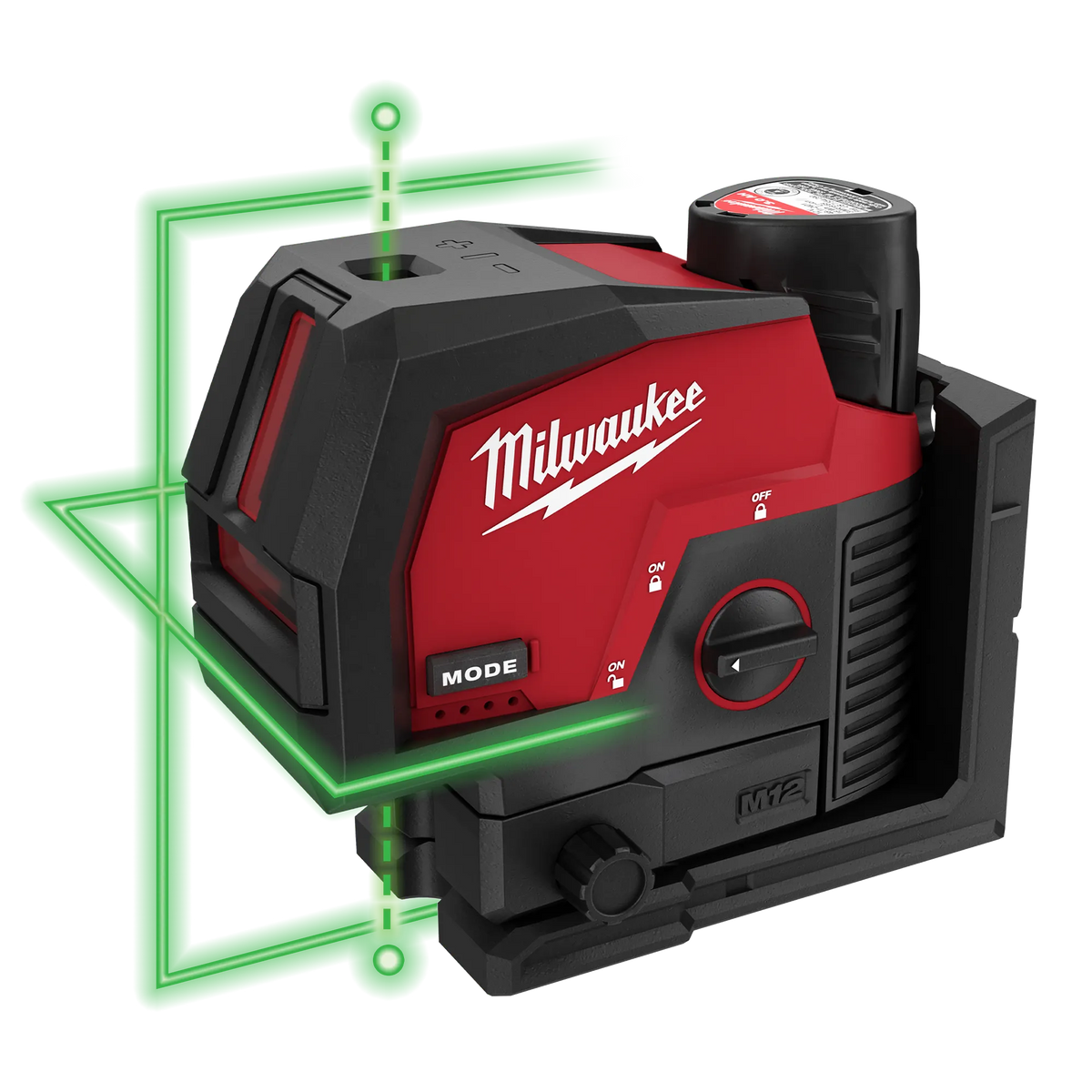

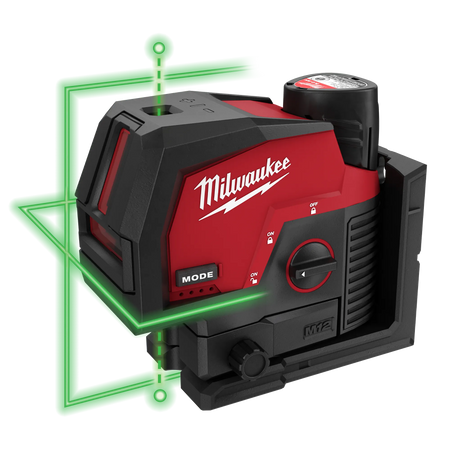

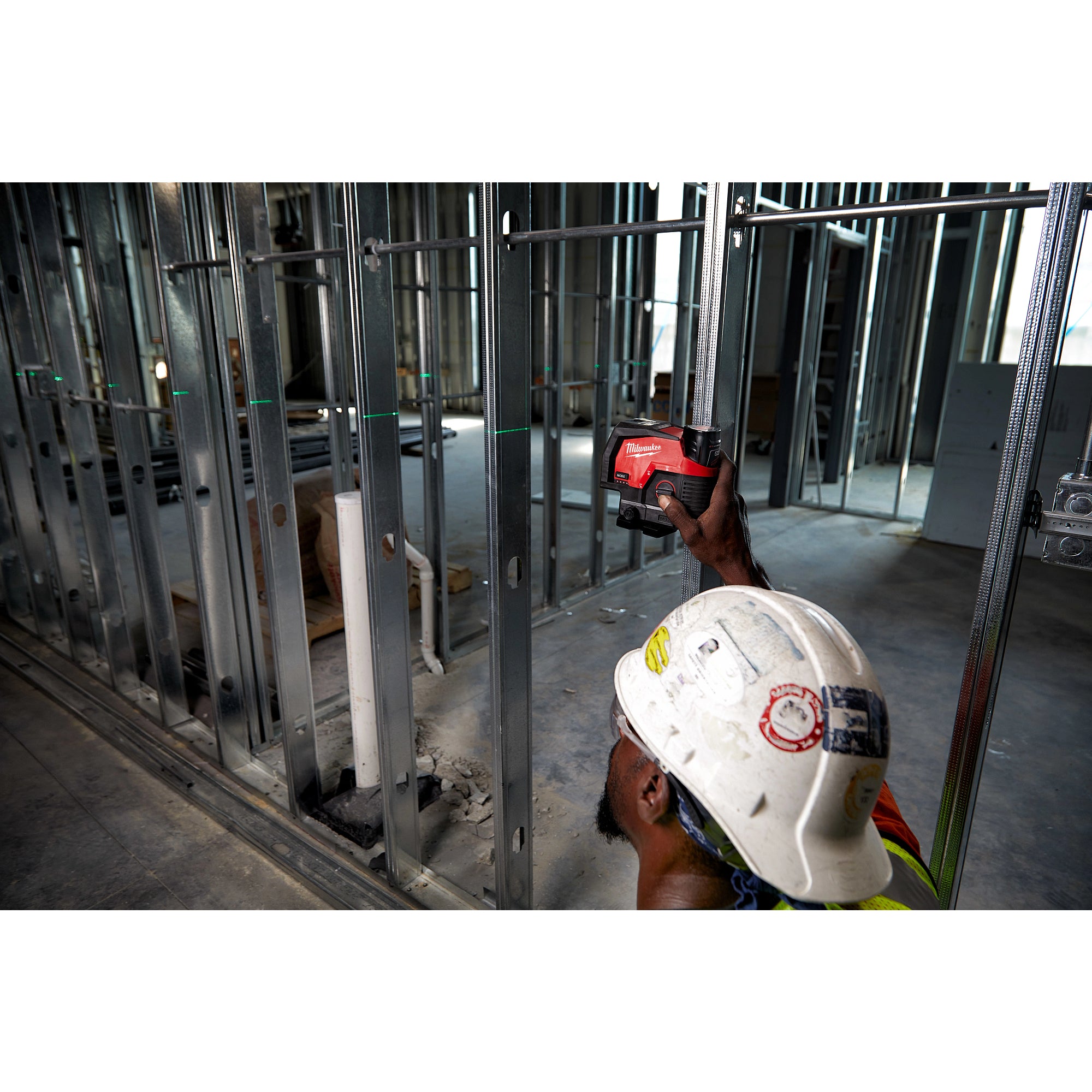

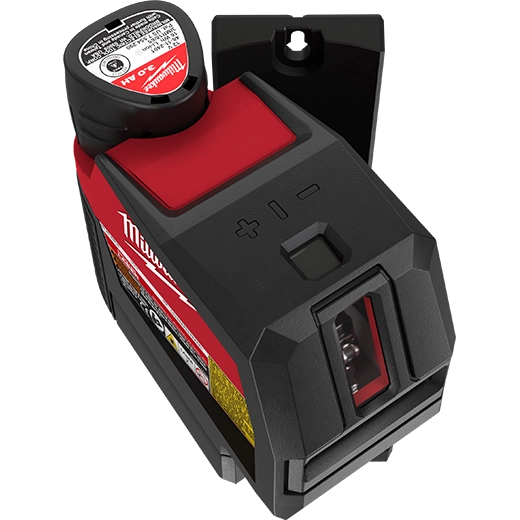

The MILWAUKEE® M12™ Green Cross Line & Plumb Points Laser provides all day runtime and best visibility in its class. Get 15+ hours of continuous runtime with an M12™ REDLITHIUM™ 3.0 CP Battery (sold separately) for ultimate productivity. The high-intensity green laser offers superior visibility up to 125' for long-range applications. The vertical and horizontal lines make alignment and level applications easy, while the two plumb dots allow for quick transfers from floor to ceiling. The integrated magnetic bracket features micro control and pivots on the plumb point for easy and fast alignment. The amplified rare earth magnets provide a strong hold and will not slide on steel studs, while an integrated hang hole makes setup easy and efficient in any environment. As part of the industry-leading M12™ System, this laser is compatible with all M12™ Batteries.

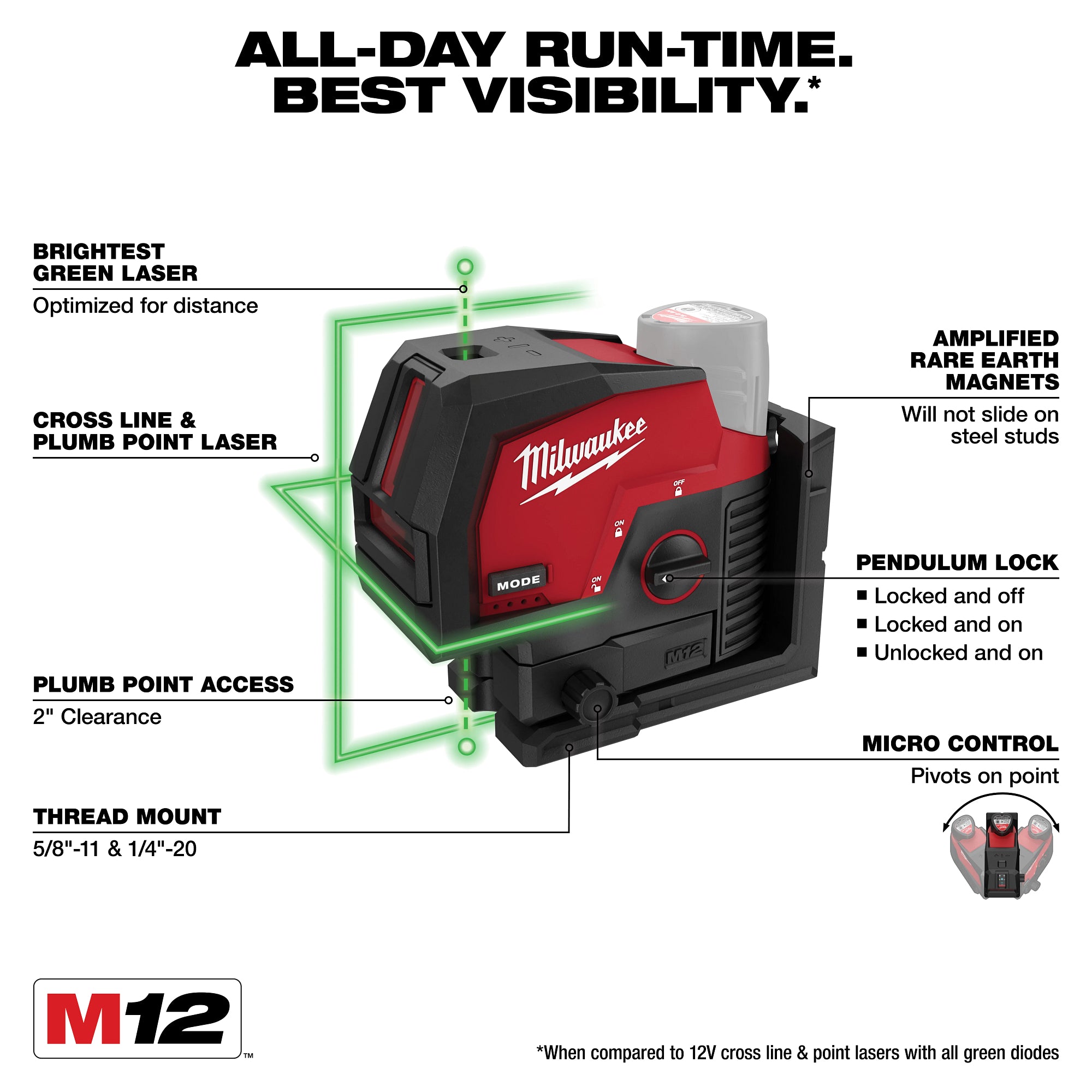

Features & Benefits
- All Day Runtime - 15+ Hours (With M12™ 3.0 CP Battery - Sold Separately)

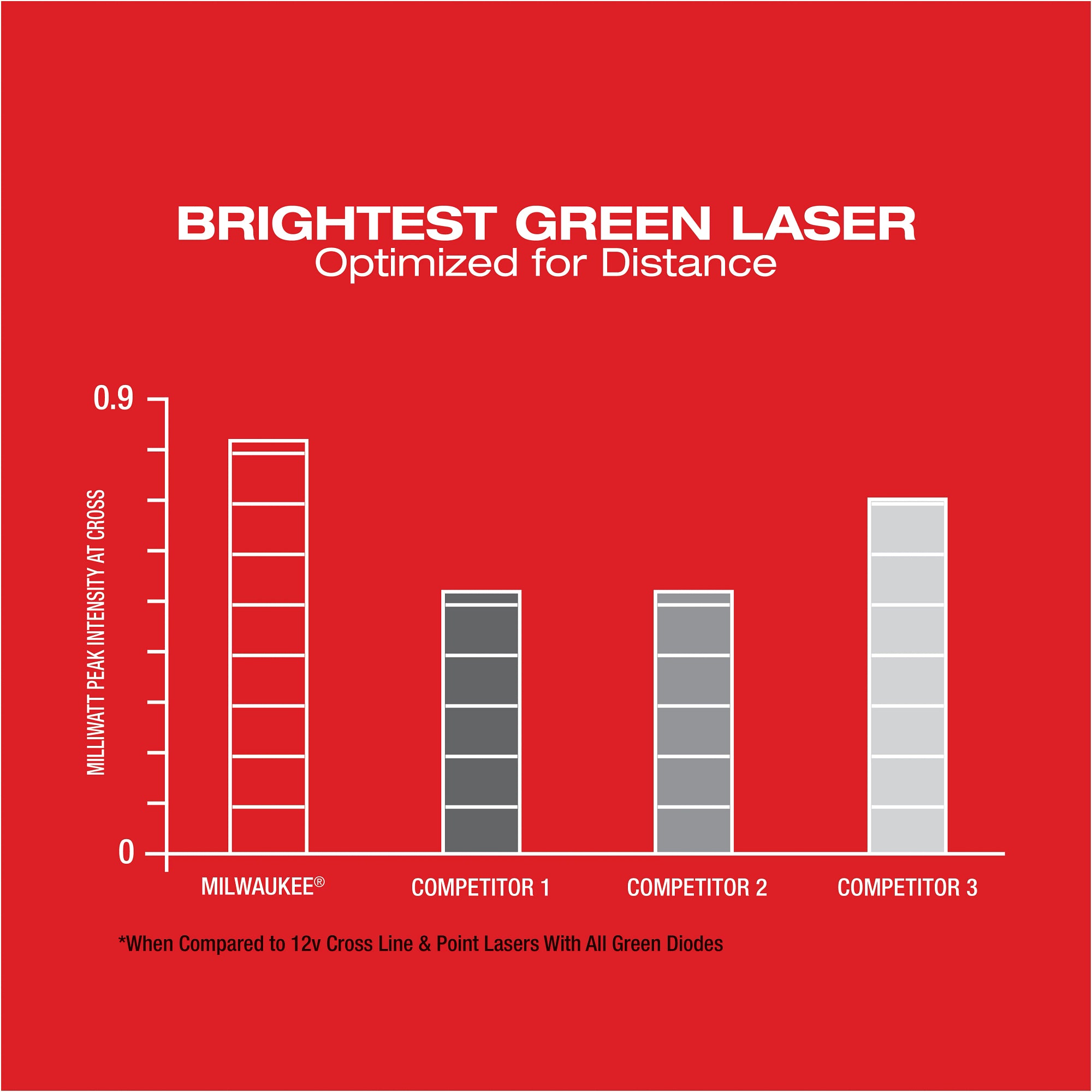

- Brightest Green Laser Optimized for Distance
- Micro Control - Pivots on Point
- 125 ft. Working Range
- 165 ft. Range with Detector
- Accuracy: +/- 1/8" @ 33 ft
- Amplified Rare Earth Magnets - Will Not Slide on Steel Studs
- 2" Plumb Point Access
- Self Leveling: +/- 4° Tilt
- IP54 Rated: Water and Dust Resistant
- 1m Impact Resistance
- 1/4 - 20 & 5/8-11 Thread Mount
- 3 Year Warranty

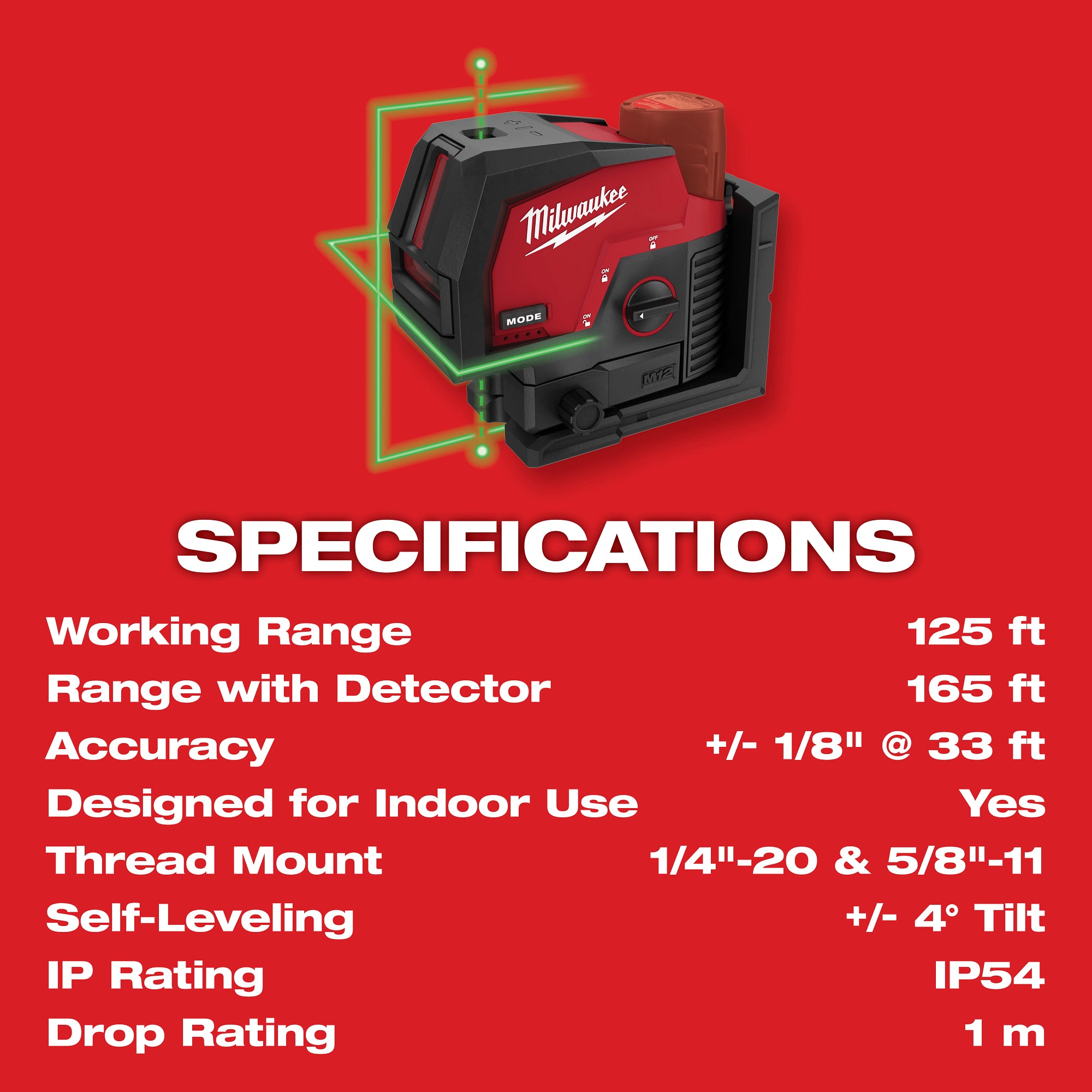

Specifications
Category: Power Tools
- Battery Quantity and Size: (1) Fits all Milwaukee® M12™ Batteries
- Accuracy: +/- 1/8" @ 33'
- Self Leveling Range Maximum: +/- 4°
- Auto Leveling Range: +/- 4°
- Laser Output: ≤7mW Cross, ≤1mW Points
- Number of 45 Degree Vials: 0
- Number of Scanning Modes: 0
- Total Number of Vials: 0
- Number of Plumb Vials: 0
- Number of Level Vials: 0
- Number of Batteries Required: 1
- Tripod Mount Dimensions: 1/4-20, 5/8-11
- Thread Size *: 1/4-20, 5/8-11
- Battery Voltage *: 12
- Battery Size: 12 Volt
- Range Without Detector (ft): 125
- Maximum Beam Distance: 125'
- Interior Range: 125'
- Range With Detector (ft): 165
- Number of Dots: 2
- Laser Class: 2

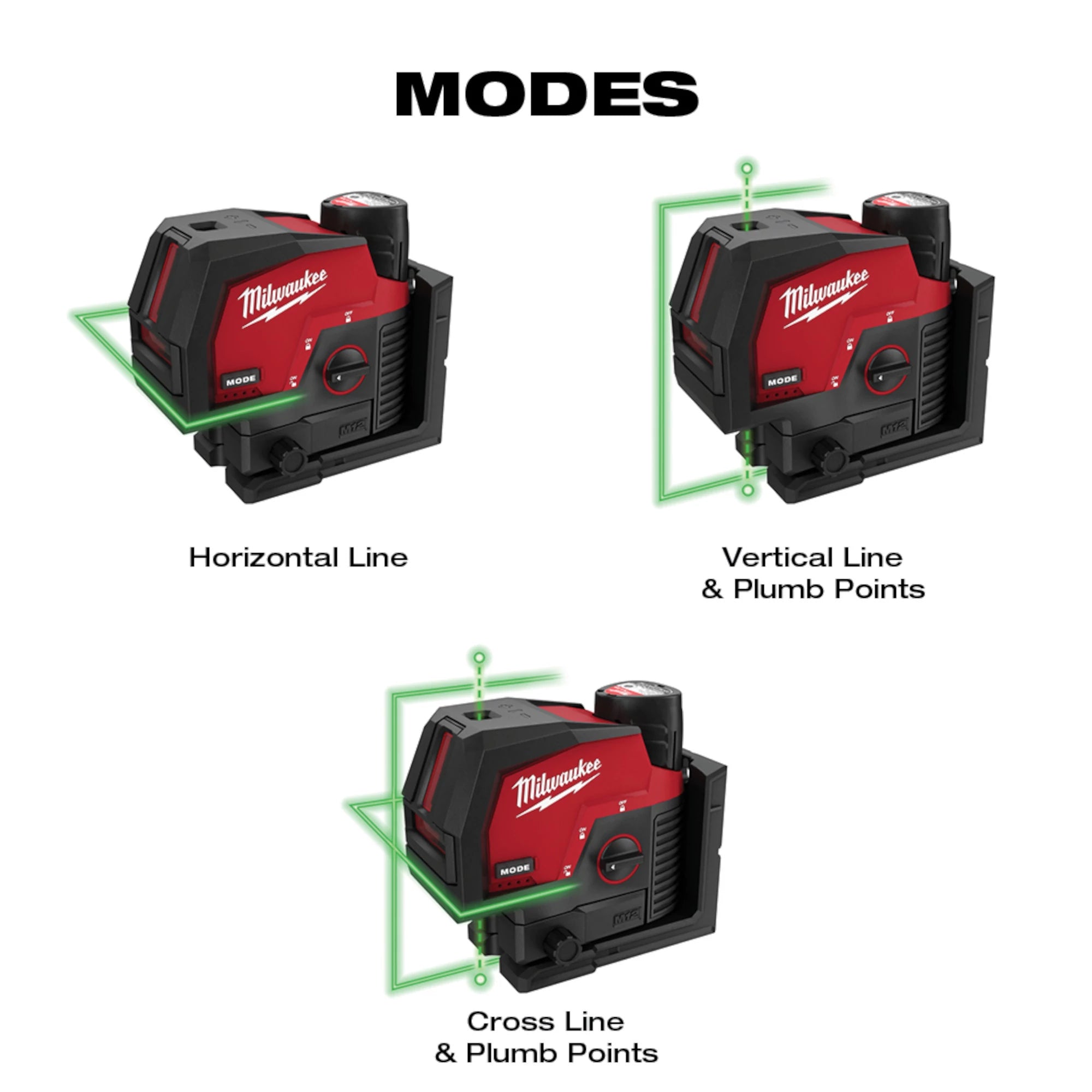

- Number of Lines: 2
- Number of Beams: 2
- Number of Measurements: 3
- Laser Wavelength: 520nm +/- 10nm
- Power Source *: Cordless
- Material *: Glass Filled Nylon
- Laser Beam Color: Green

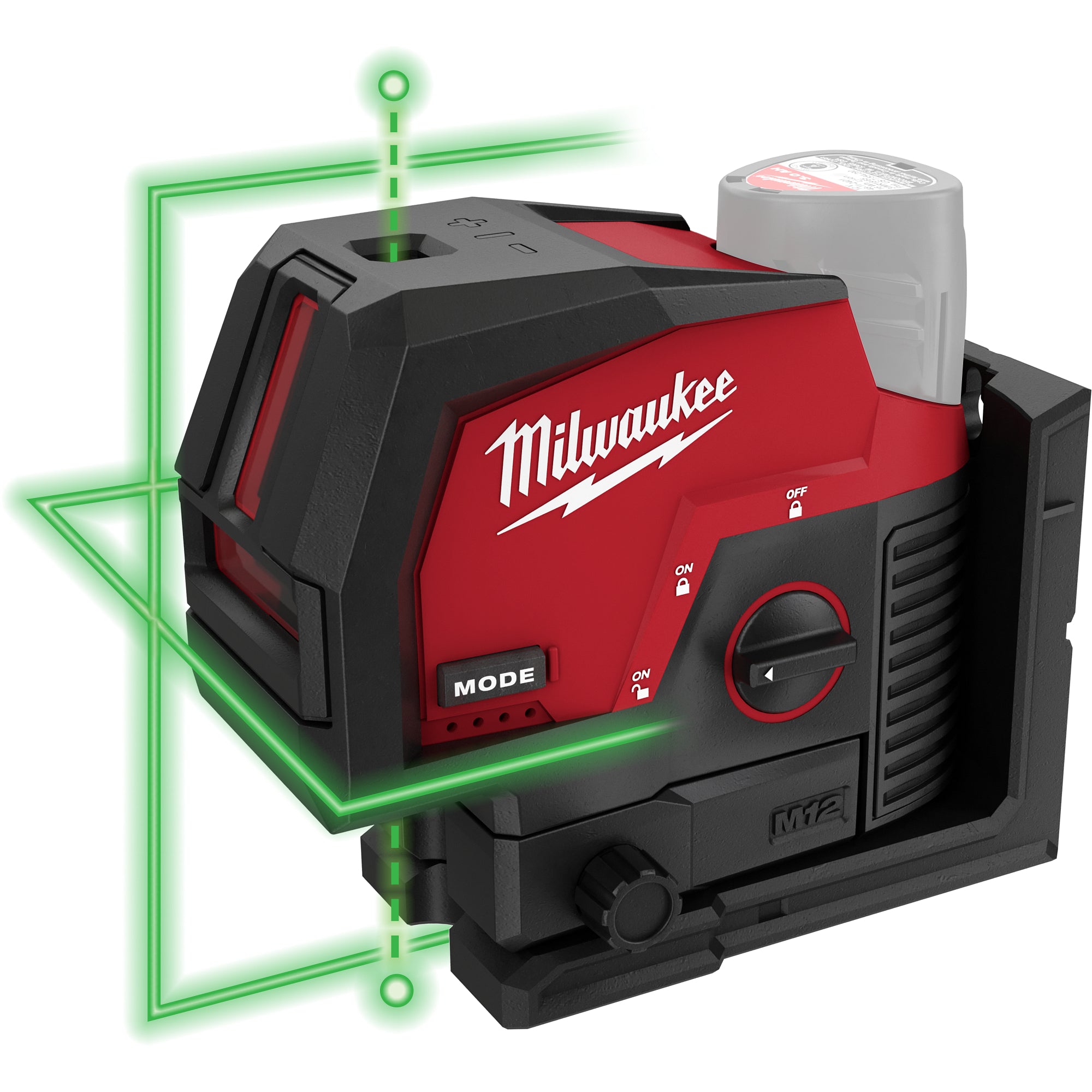

- Beam Type: Green Cross Line & Plumb Points
- Laser Display Type: Green Cross Line & Plumb Points
- Indoor Outdoor: Indoor
- Indoor/Outdoor Use: Indoor
- Laser Usage Environment: Interior
- Type: Laser Level
- Laser Level Type: Line
- Base Type: Magnetic
- Mount Options: Magnetic, Screw/Nail Hole, 1/4-20, 5/8-11 Tripod
- Rotating Speed: N/A
- Grade Capability: N/A
- Slope: N/A
- Projects Beam 360 degrees: No
- Batteries Included: No
- Waterproof: No
- Auto Shutoff: No
- Out-of-Level Shutoff: No
- Case Included: No
- LED Display: No
- Reconditioned: No
- Includes Wireless Remote: No
- Tripod Included: No
- Leveling Type: Pendulum Self-Leveling
- Material Application: Plumbing; Alignment; Leveling
- Color Finish: Red
- Laser Style: Self-Leveling
- Mounting Method: Wall or Tripod
- Plumb Up: Yes
- Plumb Down: Yes
- Self Leveling: Yes
- Visual/Audible Indicators: Yes
- Automatic Operation: Yes
