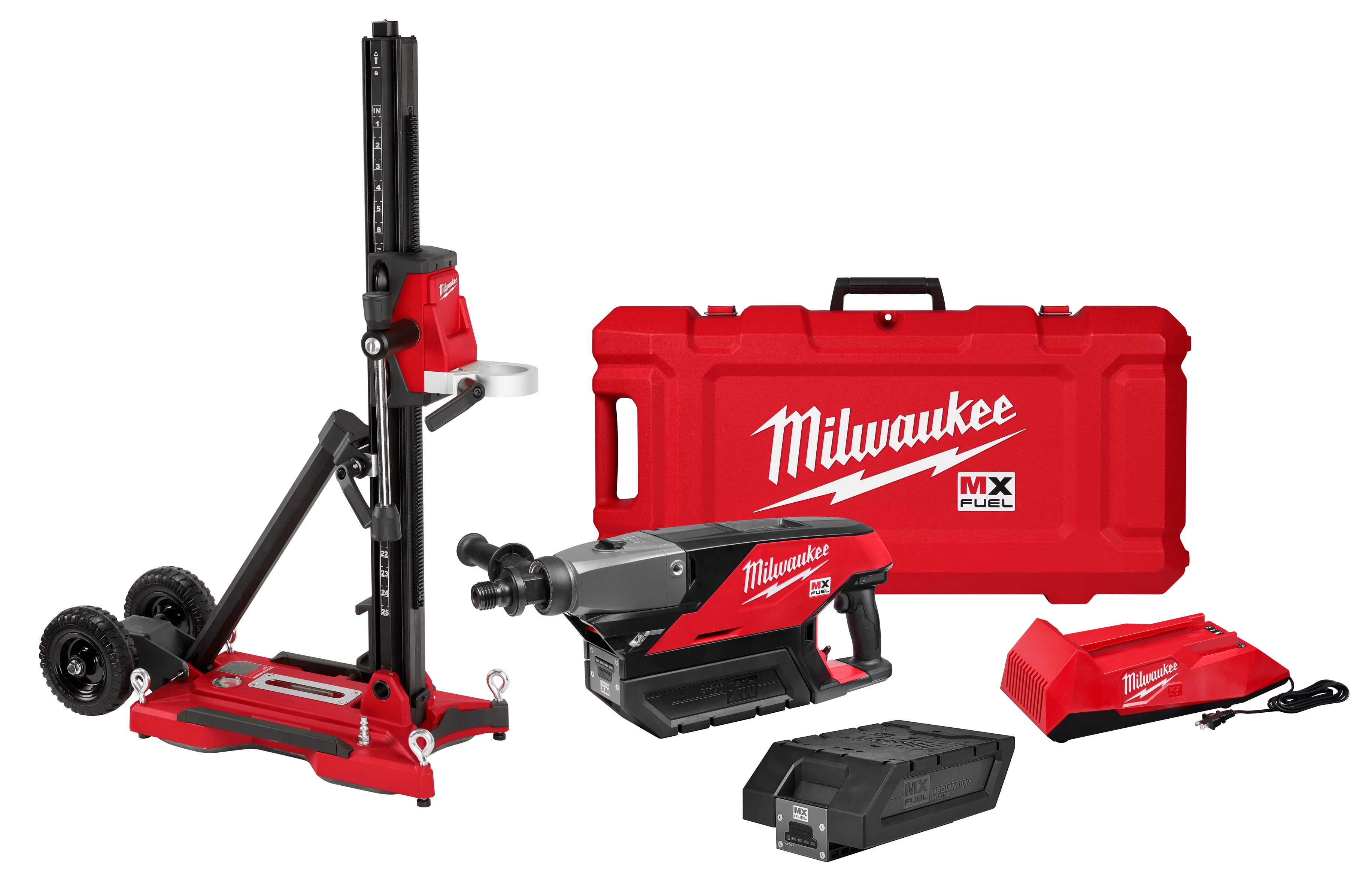

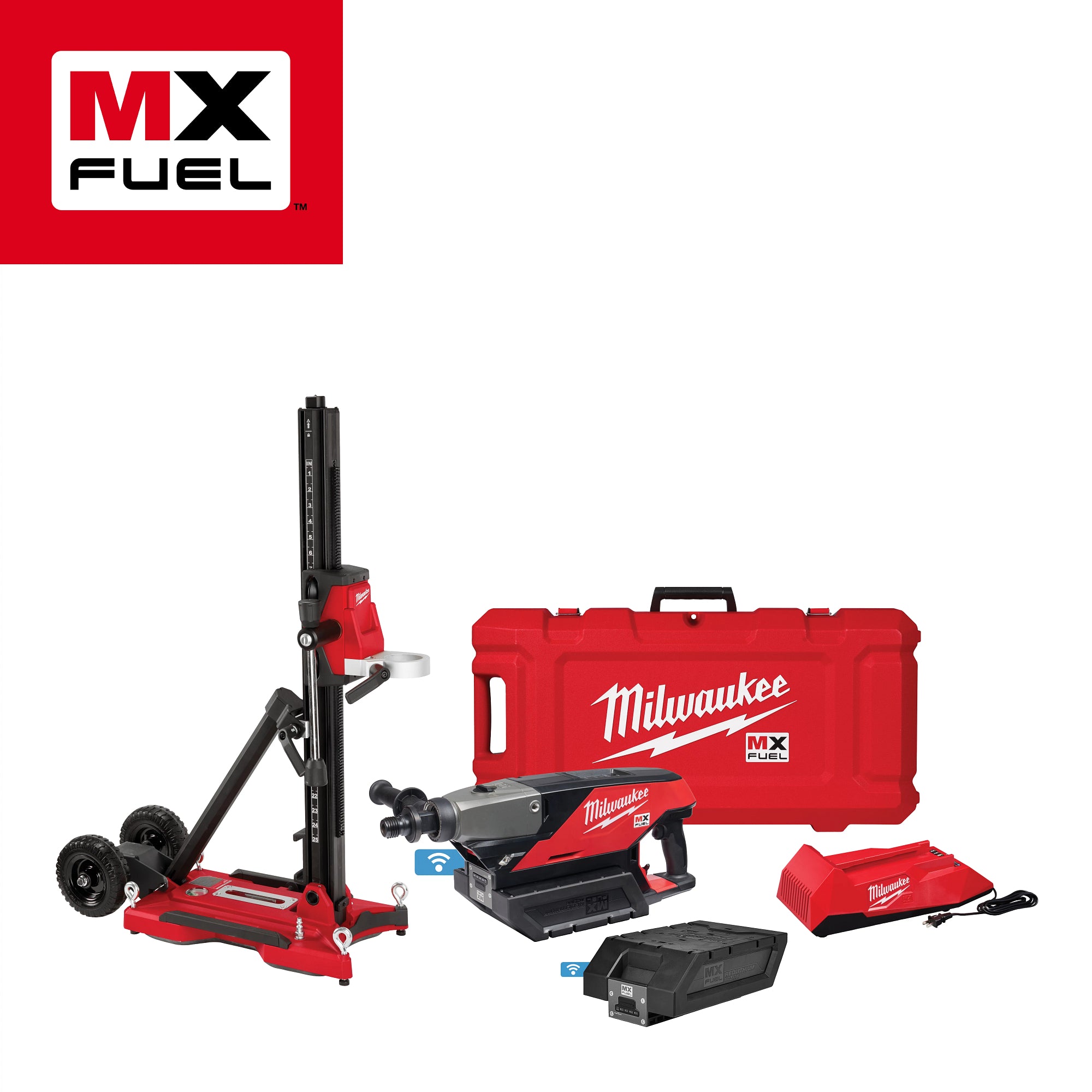

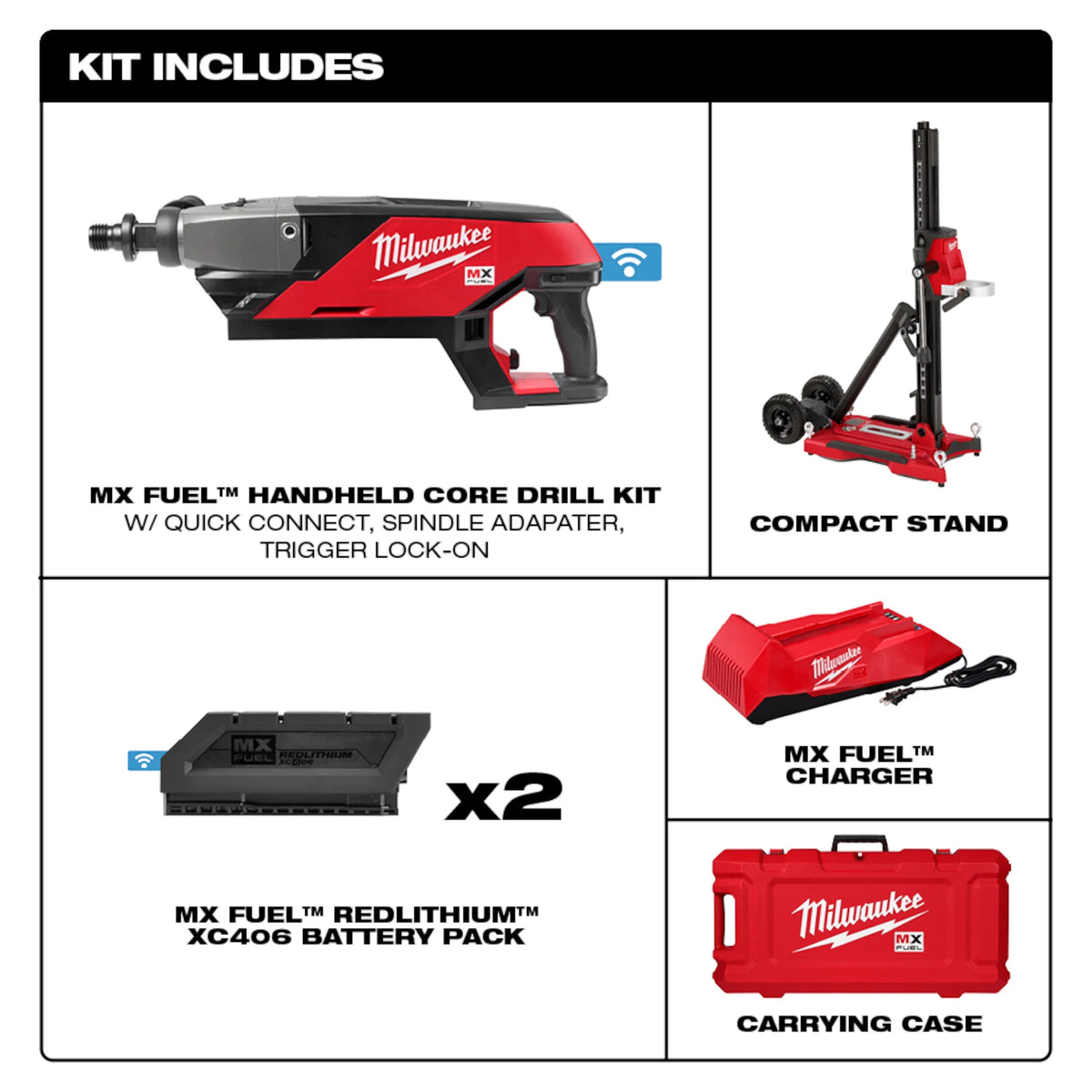

Milwaukee MXF301-2CXS, MX FUEL Handheld Core Drill Kit w/ Stand
Got questions?
Feel free to get in touch

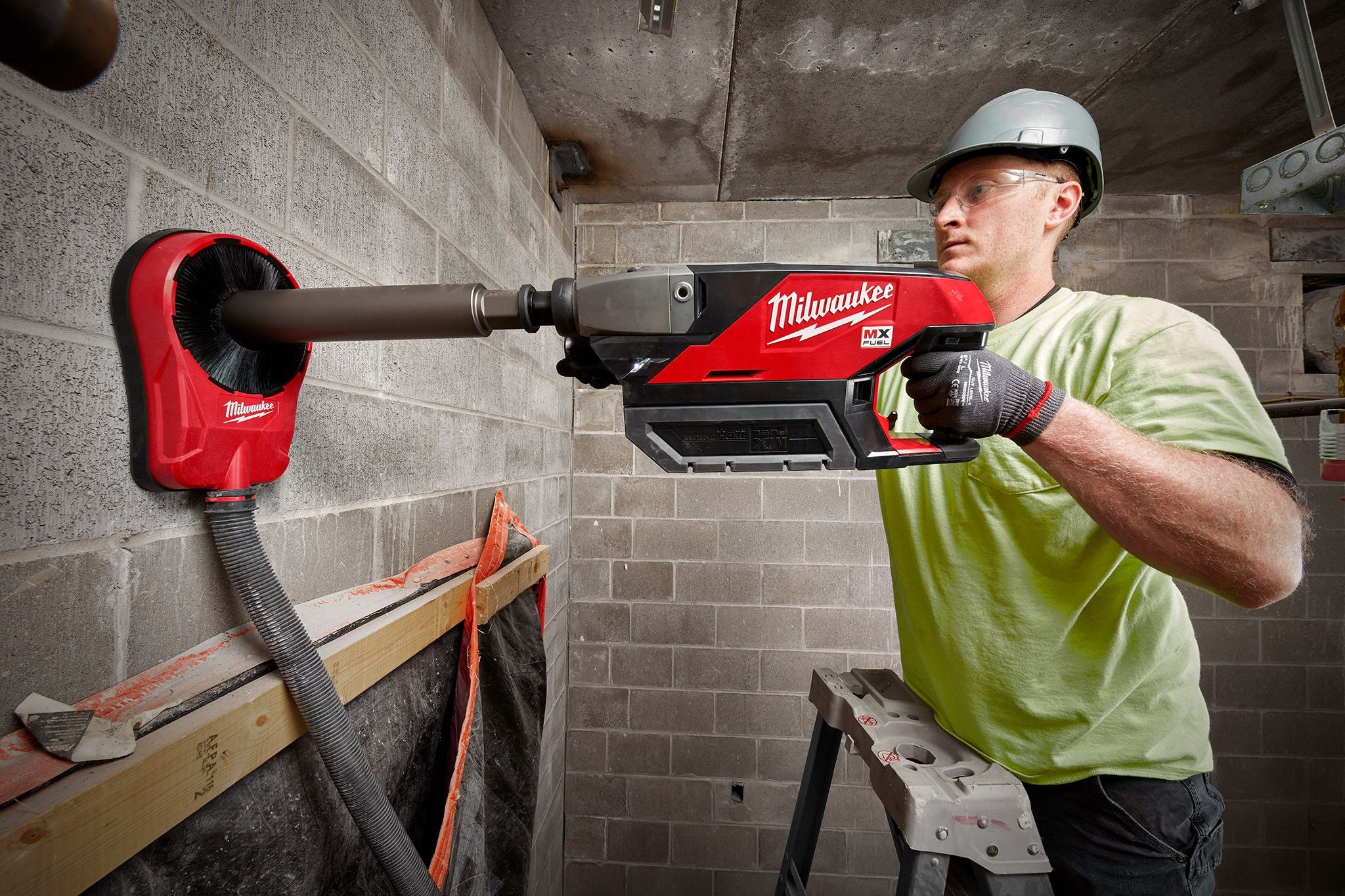

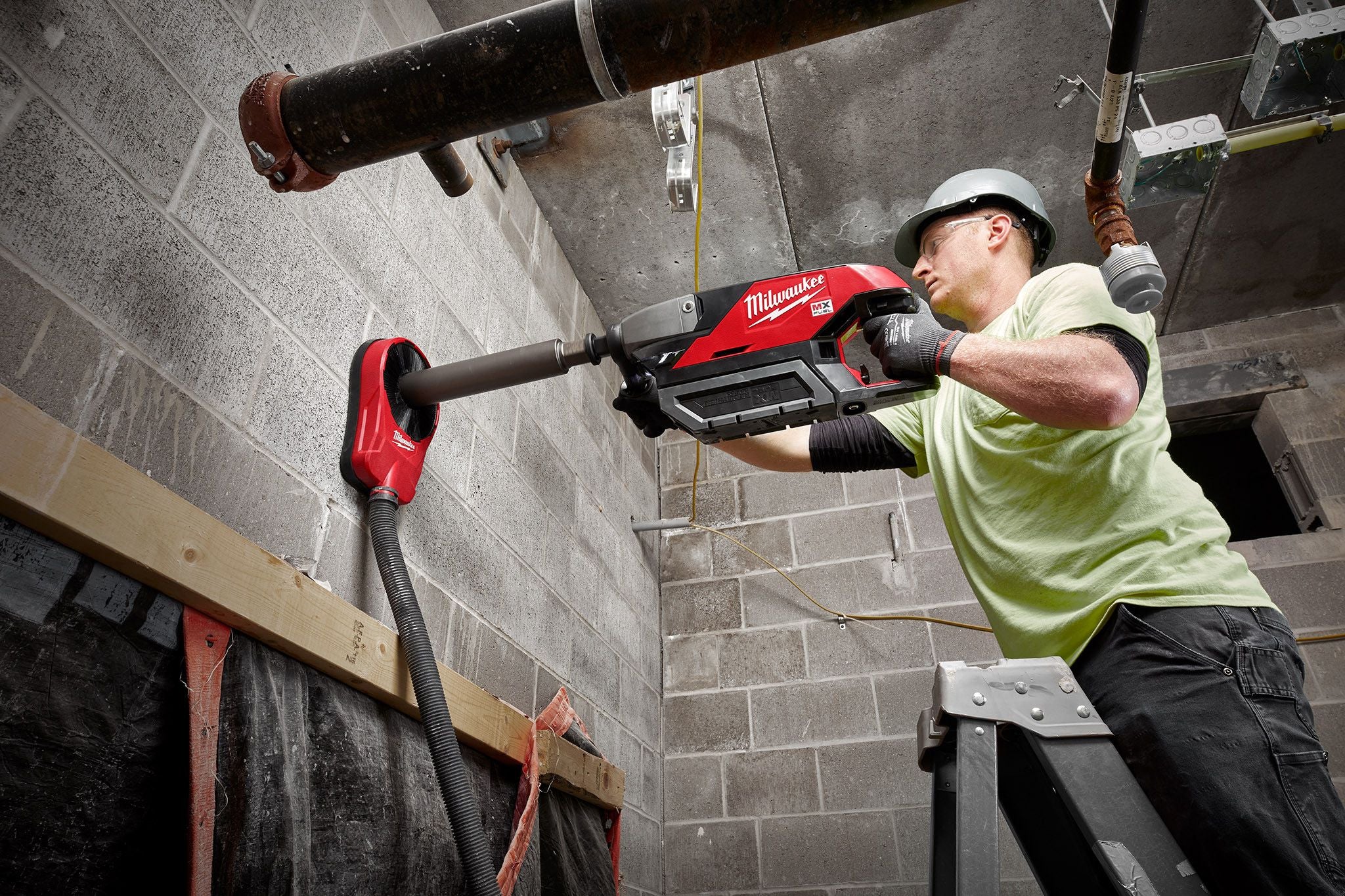

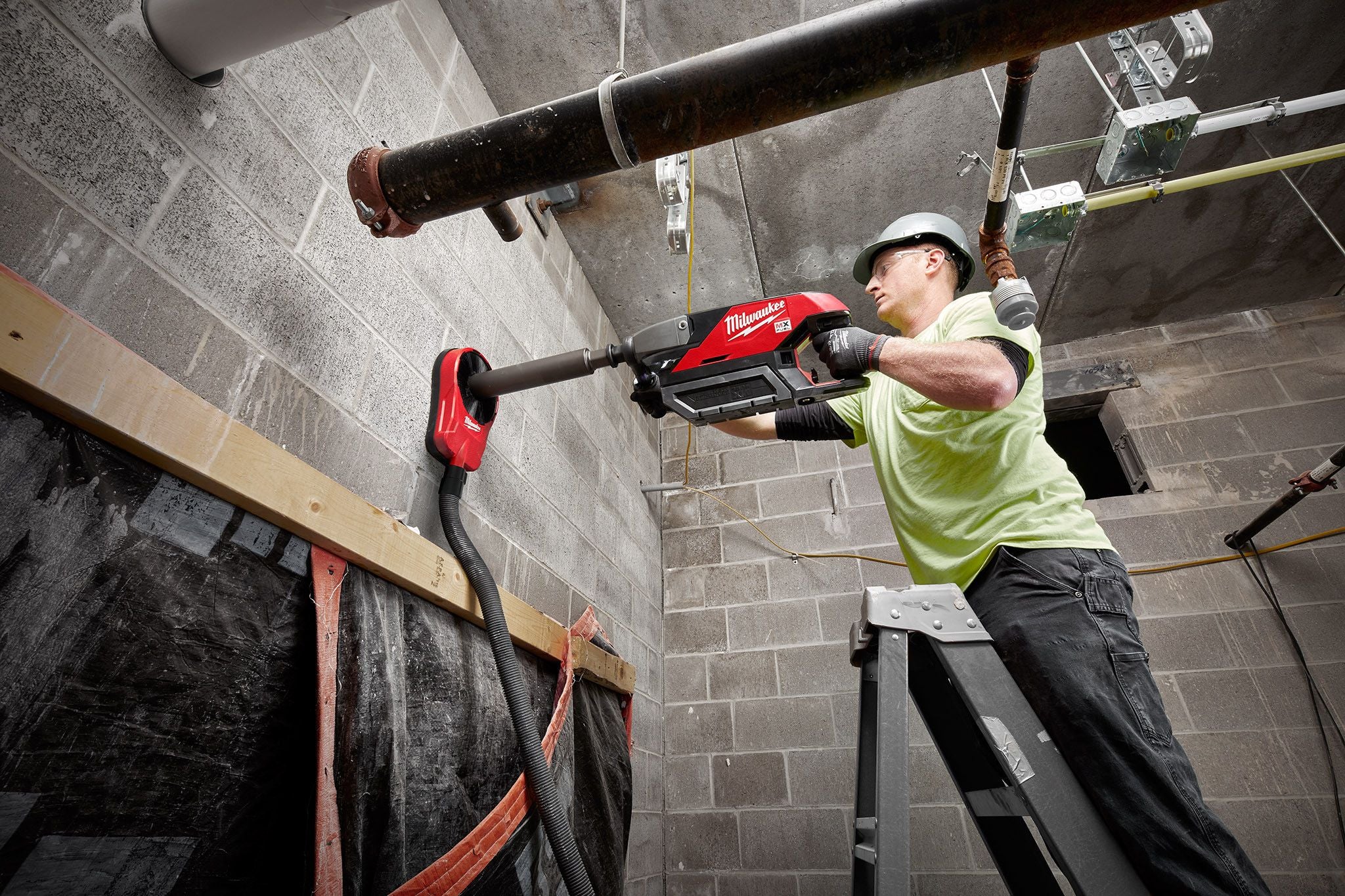

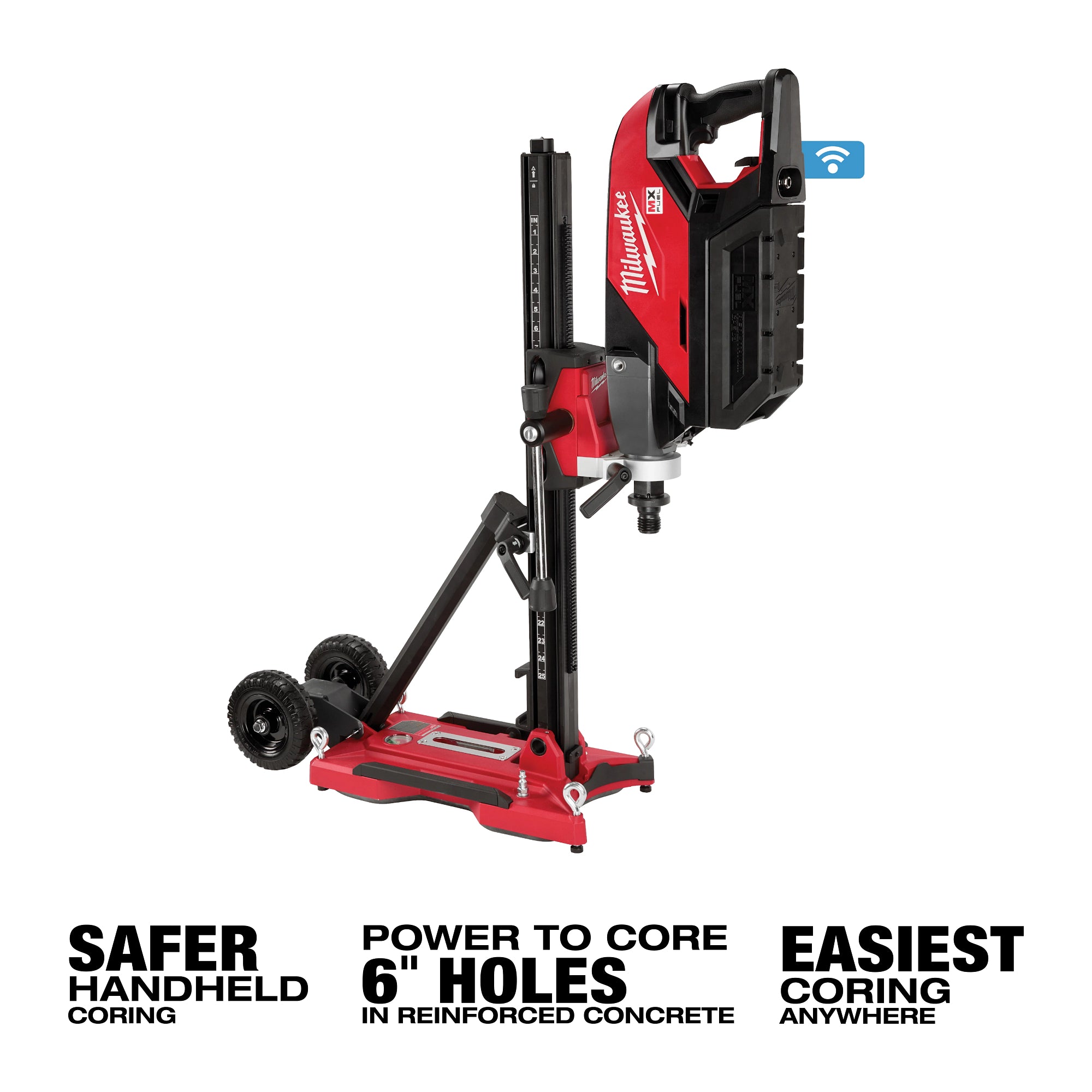

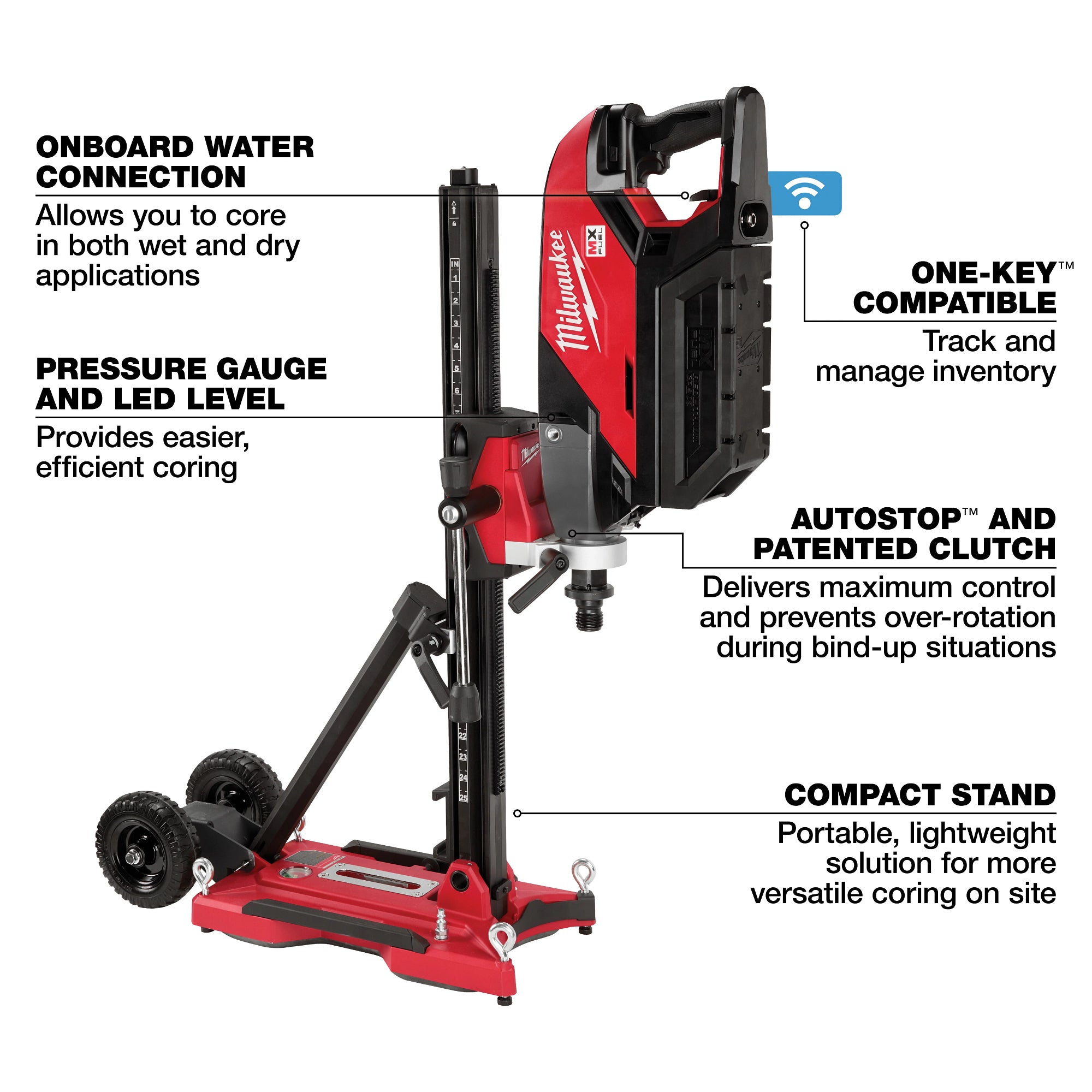

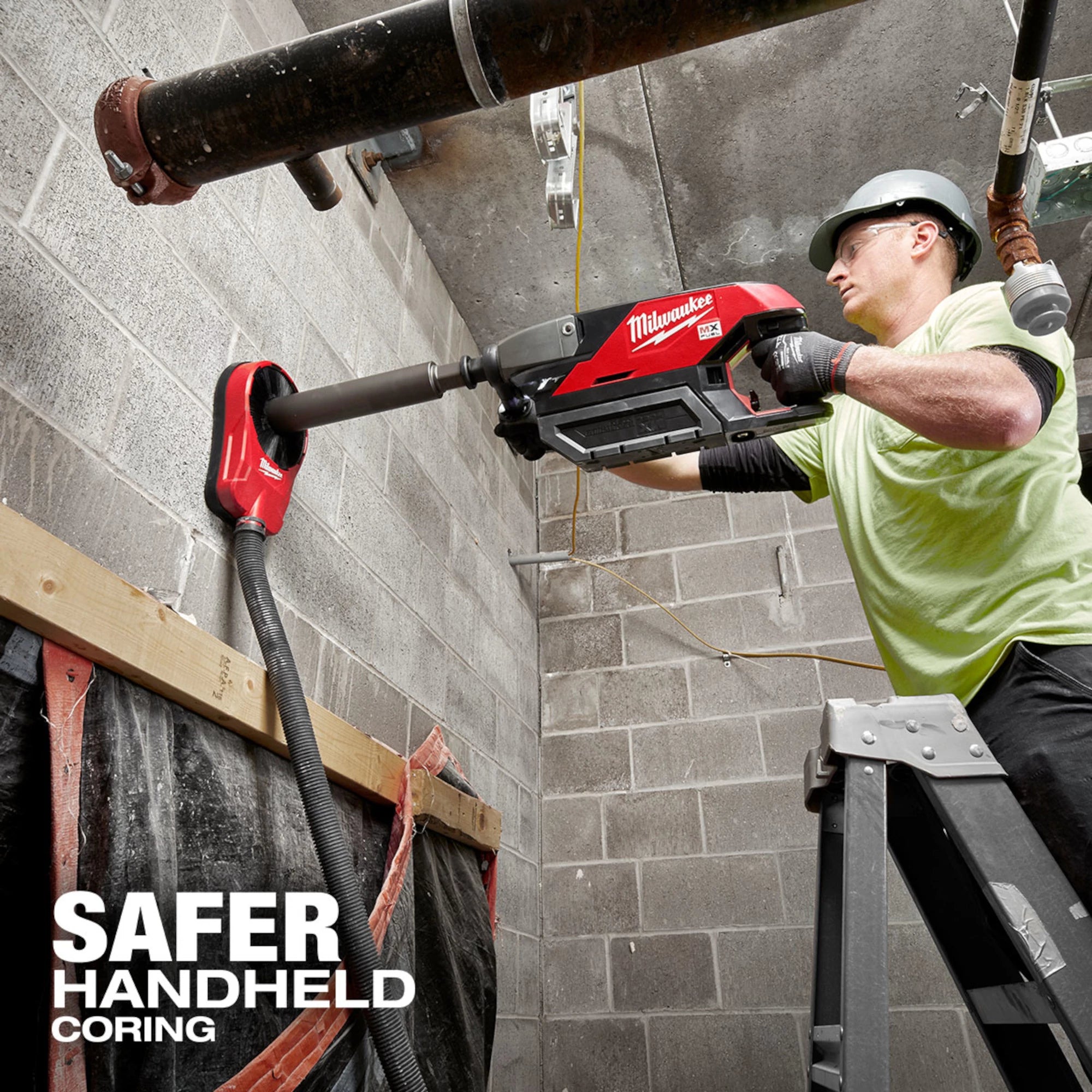

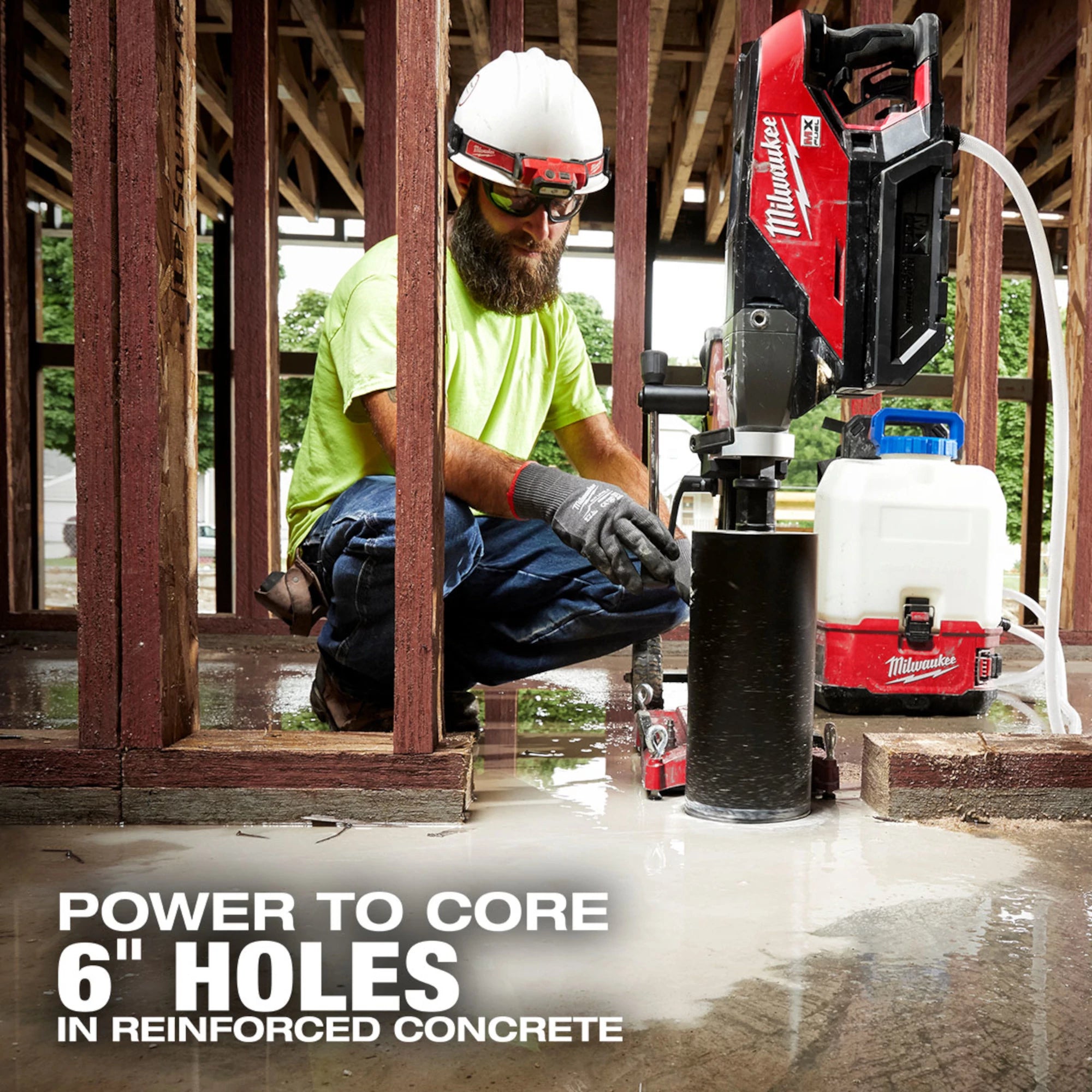

The MILWAUKEE® MX FUEL™ Handheld Core Drill allows for coring with more confidence than ever before. A patented clutch and AUTOSTOP™ technology deliver a safer handheld coring experience. They provide maximum control and prevent over-rotation in case the core drilling machine gets bound up. The POWERSTATE™ Brushless Motor delivers the power to core up to 6” holes in reinforced concrete. REDLINK PLUS™ Intelligence ensures maximum performance and protection from overload, overheating, and over-discharge. An onboard LED level and performance gauge provide maximum efficiency while coring. These features, along with the option to wet or dry core make it easier to core anywhere. The MX FUEL™ REDLITHIUM™ battery pack powers through concrete and block almost anywhere, without the hassle of extension cords or tripping breakers. The cordless core drill is compatible with all MX FUEL™ REDLITHIUM™ batteries, delivering the hardest working and most reliable power for equipment. The diamond core drill is ONE-KEY™ Compatible. Track, manage and secure equipment from mobile devices or computers using the industry’s largest Bluetooth® community tracking network. If the core drill is ever lost or stolen, prevent tampering with remote lockout capability.
Features & Benefits
- Optimize performance for different applications
- On-Board Work Lights
- water line and quick connect end for wet applications

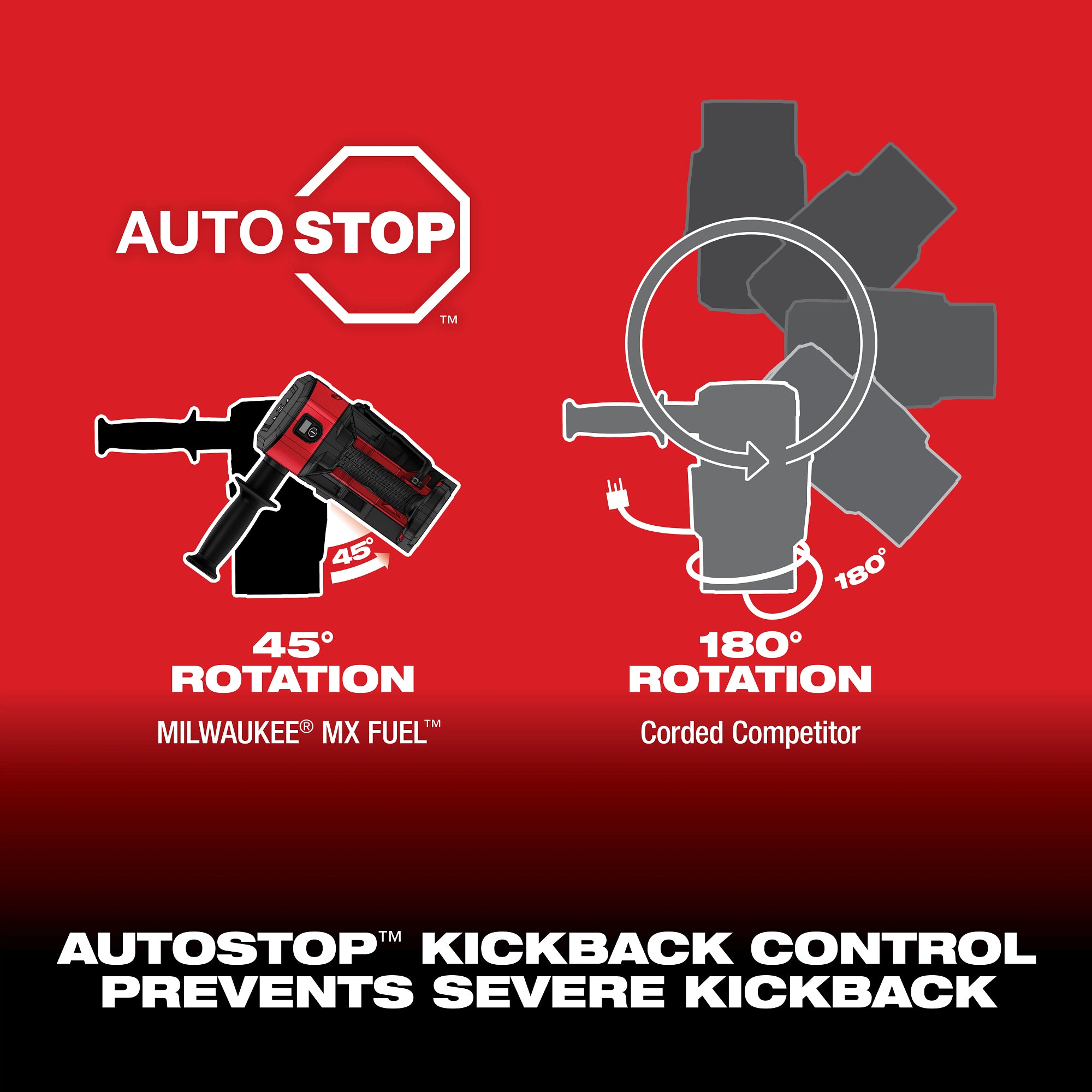

- AUTOSTOP™ kickback control prevents severe kickback
- LED leveling system helps users maintain accuracy through the application
- Pressure Gauge
- LED leveling system helps users maintain accuracy through the application
Specifications
Category: Power Tools
- Cord Length (ft) *: 0
- Maximum Horsepower (HP): 0
- Spindle Size (in): 1.75
- First Gear Maximum Speed (rpm): 1550
- Maximum RPM *: 1550
- Second Gear Maximum Speed (rpm): 1550
- Base Size: 19.6" x 9.5"
- Battery Quantity Included: 2
- Number of Speed Settings: 2
- Number of Wheels: 2
- Total Stroke Range (in): 21
- Drilling Depth (in) *: 21
- Column Diameter (in): 3.5
- Column Height (in): 36.8
- Weight Battery Installed (lb): 56
- Core Bit Cap Concrete (in): 6
- Battery Capacity Home Depot: 6 Ah
- Suggested Diameter in Medium Aggregate: 6"
- Maximum Torque (in-lbs): 740
- First Gear Minimum Speed (rpm): 790
- Second Gear Minimum Speed (rpm): 790
- ONE-KEY™ Adaptive Features: Lock; Manage; Track
- Battery System *: MX FUEL™
- Vacuum Pump Included: No
- Coolant System: No
- Base Material: Plastic
- Material *: Plastic
- Color Finish: Red
- Lock-on Switch *: Yes
- Adjustable Handle Position: Yes
- Side Handle: Yes
- Vacuum Base Included: Yes
- Wheels: Yes
- Includes Charger: Yes
- ONE-KEY™ Enabled *: Yes
- ONE-KEY™ Baseline (Track, Manage, Lock): Yes
