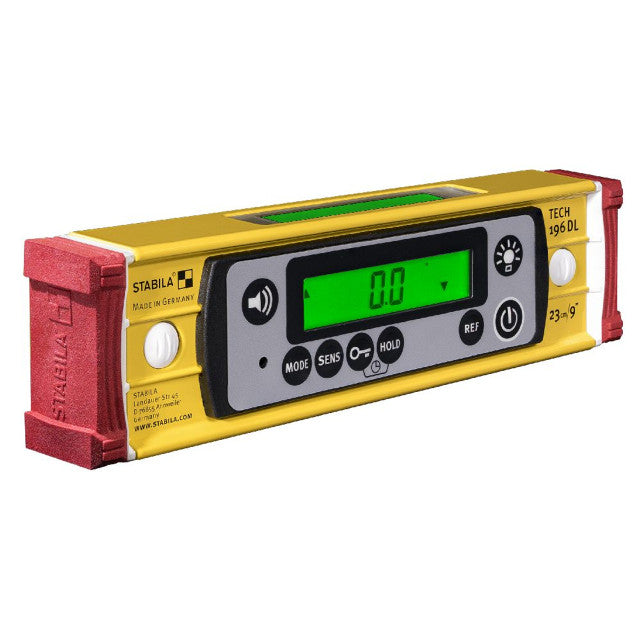

Stabila 39509, 9” IP67 TECH LEVEL® 196 DL W/CASE

Water, dirt and impacts – tools have to take a lot. With the TECH 196 DL electronic spirit level, you are ideally equipped for hard days at the construction site. Cleaning under running water is no problem thanks to ULTRA-PROTECT, and the high-precision electronic module does not need to be calibrated – even after falling or being exposed to temperature fluctuations. The innovative features of this German Made quality product simplify every measuring task: two digital displays with illumination, acoustic guidance and numerous display modes. State-of-the-art technology for productive work.



Features:

• Electronic spirit level with two digital displays for instant measurement of inclines, slopes and angles.
• ULTRA-PROTECT: Optimum protection against dust and water in accordance with IP 67 – the spirit level can be temporarily submerged.
• Optimal read-out: Two digital displays, illuminated at the press of a button.
• Acoustic guidance: For quick alignment of elements without looking at the spirit level – with two different audible signals.
• CAL-FREE: In daily use, it is not necessary to calibrate the electronics – even after falling or being exposed to temperature fluctuations.
• The digital display rotates to the reverse position.
• REF-MODE: Take, save and transfer an angle measurement to other elements.
• KEY-LOCK: Keyboard lock to prevent accidental input.
• Display modes: °, %, mm/m, in/ft – decimal and as a fraction.
• ROOF-PITCH mode (in/ft) to quickly determine the roof pitch.
• Long operating time: Up to 400 hours.
• Includes bag for safe transport.
• Magnetic Version available in 24, 48, and 72-inch lengths.



Applications:

• Particularly suitable for precise measurements in joinery and carpentry work as well as kitchens, staircase construction and excavation work.
• Ideal for contractors to check completed work: for example, to check the slope of a balcony.
• The perfect assistant in gardening and landscaping when creating a garden path with a slope.



Specifications:

• Accuracy of electronic inclination measurement at 0° and 90°: ± 0.05°
• Accuracy of electronic inclination measurement at 1° to 89°: ± 0.1°
• Measuring surfaces: 2x
• End caps: Slip stopper, Removable, Wall Grips, Shock Absorbing
• Measuring modes: °, %, mm/m, in/ft
• Profile: Rectangular profile with ribs
• Batteries: 2 AA
• Operating time (without illumination): 400 hours
• Protection class: IP 67
